Molex / Waldom 90122-0130

mpn90122-0130
brandname: Molex Incorporated
manufacturername: Molex Incorporated

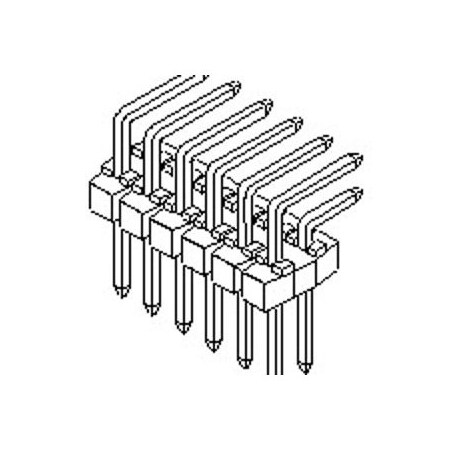

Molex / Waldom 90122-0130 Connector Headers and PCB Receptacles

Brand: Molex / Waldom
PartNumber: 90122-0130
PackageQuantity: 1
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Alternate Part No.	538-90122-0130
Applications	Automotive, General Pur.
Base Product Number	090122
Brand	Molex
Category	Connectors, Interconnec.
Color	Black
Connector Type	Header, Breakaway
Contact Finish	Tin Plated
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	118.1?in (3.00?m)
Contact Finish Thicknes.	-
Contact Length - Mating	0.266" (6.75mm)
Contact Length - Post	0.114" (2.90mm)
Contact Material	Brass
Contact Plating	Gold
Contact Plating Thickne.	3.048 ?m
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Current Rating (Amps)	-
Description	CONN HEADER R/A 20POS 2.
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM8165-ND
Family Name	C-Grid III
Fastening Type	Push-Pull
Features	Breakaway, -
Flammability Rating	UL 94V-0
Hole Center to Center	2.54 mm
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.242" (6.14mm)
Insulation Material	Polyester, Glass Filled
Manufacturer	Molex
Manufacturer Part No.	90122-0130
Manufacturer Product Nu.	0901220130
Manufacturer Standard L.	12 Weeks
Mated Stacking Heights	-
Material	Polyester
Material Flammability R.	UL94 V-0
Max. Temp.	125?C
Max. Voltage	350V
Mfr	Molex
Mounting Type	Through Hole, Right Ang.
Number of Circuits	20
Number of Contacts	20
Number of Positions	20
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-
Overall Contact Length	-
Package	Bulk
Package Quantity	1
Packaging	Tray
Part # Aliases	0901220130
Pitch	2.54 mm
Pitch - Mating	0.100" (2.54mm)
Plating Material	Tin
Product Category	Headers & Wire Housings
Product Status	Active
Product Type	Headers
Row Spacing - Mating	0.100" (2.54mm)
Series	90122, C-Grid III 90122.
Shrouding	Unshrouded
Standards	UL E29179
Style	Board to Board or Cable
Terminal Finish	Tin Plated
Terminal Type	Through Hole
Termination	Solder
Termination Style	Through Hole
Tradename	C-Grid
Type	Breakaway
Voltage Rating	-, 350 V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
TME	MX-90122-0130	0.84	3000	119	MOLEX	0.84 @ 3000
Onlinecomponents.com	90122-0130	1.32	1	1080	MOLEX / WALDOM	1.32 @ 1
Digi-Key	760879	1.55998	1200	119	Molex	1.55998 @ 1200
us.rs-online.com	71466260	2.26	1	119	Molex Incorporated	2.26 @ 1
Newark	25M5839	2.43	1	17	MOLEX	2.43 @ 1
Mouser	538-90122-0130	2.49	1	455	Molex	2.49 @ 1
swatee.com	90122-0130	3.61	1	57	Molex	3.61 @ 1
Zoro	G005891235	2460.0	1	119	Molex	2460.0 @ 1
