Omron MY2FDC24

B0105IXKO4

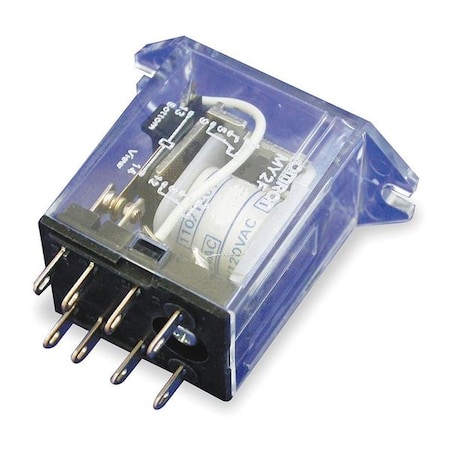

Omron Industrial MY2FDC24 Medium Power Relays (3 Amps to 19.9 Amps)

Omron Industrial MY2FDC24 Medium Power Relays (3 Amps to 19.9 Amps)zoom

Attributes

Key Value
AC Contact Rating - Rel.5A @ 240V
Alternate Mfr Part Numb.MY2FDC24
Base Product NumberMY2F
Body Depth - Relay1.14 in
Body Height - Relay1.42 in
Body Width - Relay0.89 in
CategoryRelays
Coil Current36.9 mA
Coil Insulation-
Coil Resistance650 Ohms
Coil TypeNon Latching
Coil Voltage24VDC
Coil Volts24V DC
Contact FormDPDT, DPDT (2 Form C)
Contact Form - RelayDPDT
Contact MaterialSilver Nickel, Silver (.
Contact Rating5A @ 220VAC/24VDC
Contact Rating (Current)5 A
Country of Origin (subj.China
DC Contact Rating - Rel.5A @ 24V
DescriptionRELAY GEN PURPOSE DPDT .
Detailed DescriptionGeneral Purpose Relay D.
Digi-Key Part NumberZ10459-ND
Electrical Connection0.100 in Solder Terminal
FeaturesGeneral Purpose Relays,.
HP @ 120V1/6 hp
HP @ 240V1/6 hp
ItemFlange Mount Relay
Item - RelayFlange Mount Relay
ManufacturerOmron Automation and Sa.
Manufacturer Product Nu.MY2F-DC24
Manufacturer Standard L.14 Weeks
MfrOmron Automation and Sa.
MountingTop
Mounting - RelayTop Flange
Mounting TypeChassis Mount
Must Operate Voltage19.2 VDC
Must Release Voltage2.4 VDC
Number of Pins - Relay8
Operate Time20 ms
Operating Temperature-55?C ~ 70?C
Overall Height - Relay1.66 in
PackageBulk
Pins8
Power Consumption - Rel.0.9 W
Primary TypePower Relays
Product StatusActive
Relay TypeGeneral Purpose
Release Time20 ms
Seal Rating-
SeriesMY
StandardsCE Marked, CSA Certifie.
Status IndicatorNo
Switching Voltage250VAC, 125VDC - Max
Termination StyleSolder Lug

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
i-componentsMY2F-DC243.989111472Omron Automation & Safety3.545 @ 25
Onlinecomponents.comMY2FDC246.19140OMRON INDUSTRIAL5.7 @ 25
thumbzoomZoroG09464076.59224103Omron0.086.59 @ 24
Sager ElectronicsMY2FDC246.88124Omron6.88 @ 24
thumbzoomsustainablesupply.comC116871410.15124Omron0.0810.15 @ 24
Mouser653-MY2F-DC2410.28124Omron10.28 @ 24
Master ElectronicsMY2FDC2410.661162Omron Automation10.66 @ 24
thumbzoomDigi-Key181422610.832138Omron Automation and Safety10.2904 @ 25
us.rs-online.com7120418411.28124Omron Automation10.72 @ 25
thumbzoomNewark89C747611.62124OMRON INDUSTRIAL AUTOMATION10.21 @ 25
Airline HydraulicsOMRON MY2F-DC2413.76124Omron13.76 @ 24
