Panasonic ECE-A1CKA101

mpnECEA1CKA101
brandname: Panasonic
manufacturername: Panasonic

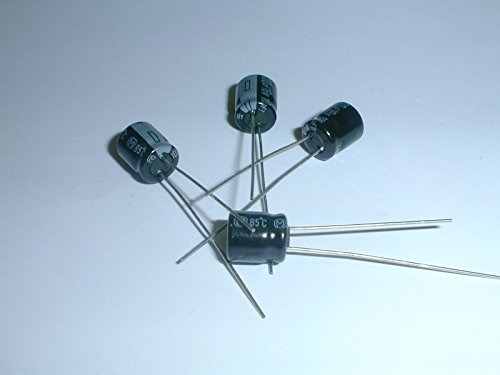

ECE-A1CKA101 Low Profile Electrolytic Capacitor 100uf 16V, 85C, 7mm High x 6.3mm Dia. (4 Pieces)

zoom

Brand: Panasonic
PartNumber: ECE-A1CKA101
PackageQuantity: 4
Manufacturer: Panasonic
Label: Panasonic

Attributes

Key	Value
Alternate Part No.	667-ECE-A1CKA101
Applications	0.098" (2.50mm)
Brand	Panasonic
Capacitance	100 uF, 16 V
Capacitance Range	100 to 999 uF
Case Diameter	6.3 mm
Case Length	7 mm
Case Size	Dia. 0.248 x L 0.276 in.
Category	Capacitors
Configuration	Radial ; Can
Dimensions	0.248 Dia. x 0.276 L ; .
Element Material	Aluminum Electrolytic
ESR (Equivalent Series .	1000 Hrs @ 85?C
Height - Seated (Max)	-
Lead Diameter	0.45 mm
Lead Spacing	2.5 mm, 0.098 In. (2.50.
Life	1000 Hours
Lifetime @ Temp.	-40?C ~ 85?C
Load Life	1000 h
Manufacturer	Panasonic
Manufacturer Part No.	ECE-A1CKA101
Maximum Operating Tempe.	+ 85 C, 85 C
Mfr	Panasonic Electronic Co.
Minimum Operating Tempe.	-40 C
Mounting Type	Radial, Can, PCB Mount
Operating Temperature	Polar
Package	-
Package / Case	100 ?F
Packaging	Bulk
Part Status	?20%
Polarization	-
Product	General Purpose Electro.
Product Category	Aluminium Electrolytic .
Ratings	General Purpose
Ripple Current	91 mA, 0.091 A
Ripple Current @ Low Fr.	154.7 mA @ 10 kHz
Series	Bulk, KA, KA Series
Size / Dimension	0.276" (7.00mm)
Surface Mount Land Size	Through Hole
Termination	Through Hole
Termination Style	Radial
Tolerance	20 %, -, 20% %
Voltage - Rated	91 mA @ 120 Hz
Voltage Rating	16 VDC
Voltage Rating DC	16 V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Avnet	ECE-A1CKA101	0.046	200	405		Panasonic		0.046 @ 200
	Onlinecomponents.com	ECE-A1CKA101	0.084	1	7992		PANASONIC		0.084 @ 1
	RS Delivers	176-3716	0.1224	1	1800		Panasonic		0.1224 @ 1
	us.rs-online.com	70256059	0.12928	1	1585		Panasonic Electronic Components		0.12928 @ 1
	Newark	62W6341	0.225	1	6950		PANASONIC		0.225 @ 1
	Digi-Key	P833-ND	0.23	1	434		Panasonic Electronic Components		0.23 @ 1
	TME	ECEA1CKA101	0.255	10	1640		PANASONIC		0.255 @ 10
	Component Electronics	880-557	0.38	1	50		Panasonic		0.38 @ 1
	swatee.com	ECE-A1CKA101	0.435	1	3186		Panasonic		0.435 @ 1
	MCM Electronics	P-ECEA1CKA101	1.78	1	56		Panasonic		1.78 @ 1
	AmazonTP	B01M0OCB8F	6.51	1	434	2	Panasonic		6.51 @ 1
