Ruland MSP-5E-P

B08HL8QPYL

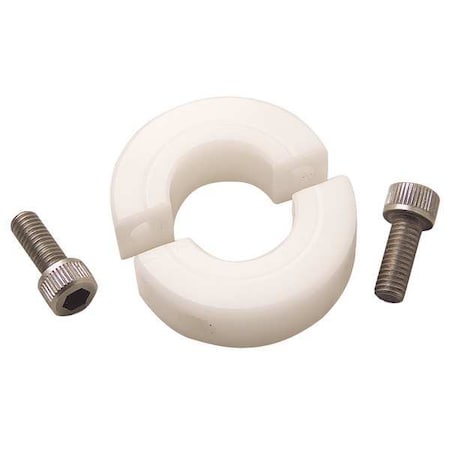

Shaft Collar,Clamp,2Pc,5/16 in,Plastic

Shaft Collar,Clamp,2Pc,5/16 in,Plasticzoom

Attributes

Key Value
Bore (B1)0.3125 in
Bore Dia.5/16 in
Bore Tolerance+0.0020 in / +0.0005 in
Bore Type - CollarsPlain Bore
Clearance Dia.22.4 mm
Clearance Diameter (C) .22.4 mm
Collar StyleClamp
Country of OriginUSA
Country of Origin (subj.United States
Dimension TypeInch
Finish SpecificationPlain
Forged Clamp ScrewM3
Hex Wrench Size2.5 mm
ItemShaft Collar
Item - Shaft CollarsShaft Collar
ManufacturerRuland Manufacturing
MaterialAcetal Plastic
Material - CollarsAcetal Plastic
Material SpecificationAcetal Bar
Note 1Performance ratings are.
Number of Pieces2
Number of Screws2 ea
Operating Temp. Range-10 Degrees to 185 Degr.
Outer Diameter (OD)18 mm
Outside Dia.18 mm
Recommended Gap1.20 mm
Recommended Shaft Toler.+0.0000 in / -0.0005 in
Screw FinishBright
Screw Location (R)6.50 mm
Screw MaterialStainless Steel, 18-8 3.
Screw SizeM3
Seating Torque0.2 Nm
Shaft Locking Type - Co.2 Piece Clamp
System of MeasurementInch
Tariff Code8483.60.8000
Temperature-10?F to 185?F (-23?C t.
UNSPC31162811
UPC634529118306
Weight (lbs)0.008300
Width9 mm
Width (W)9 mm
Width Tolerance+0.076 mm / -0.254 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG196650513.01In Stock10Ruland0.0113.0 @ 1
thumbzoomRulandMSP-5E-P14.931In StockRuland0.008314.93 @ 1
thumbzoomsustainablesupply.comC164625415.831In StockRuland Manufacturing0.0115.83 @ 1
us.rs-online.com7262286627.961In StockRuland Manufacturing27.96 @ 1
thumbzoomRaptor SuppliesAF9XNT32.0679451In StockRULAND MANUFACTURING32.067945 @ 1
