Schaefer FFM525G1

B018QFU6RC

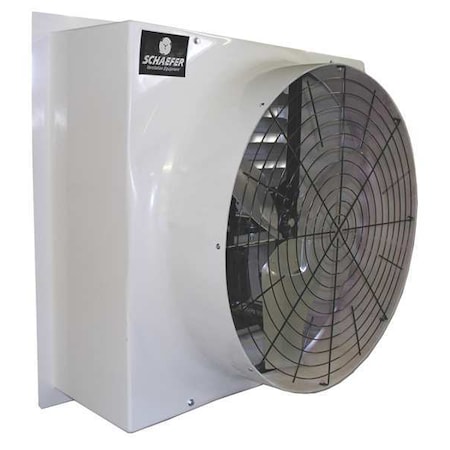

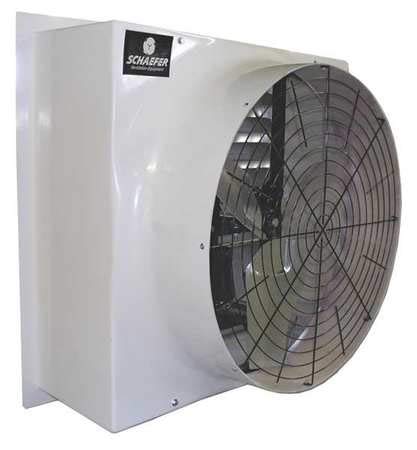

SCHAEFER FFM525G1 Fiberglass Belt Drive Exhaust Fan, 5-Wing, Blade Material: Galvanized Steel,1 hp, 52"

SCHAEFER FFM525G1 Fiberglass Belt Drive Exhaust Fan, 5-Wing, Blade Material: Galvanized Steel,1 hp, 52"zoom

Attributes

Key Value
Agency ComplianceUL Listed Motor
AssembledFully Assembled
Bearing TypePermanently Lubricated .
Blade Diameter52 in
Blade FinishGalvanized
Blade MaterialSteel
CFM @ 0.000-In. SP25,942
CFM @ 0.050-In. SP24,245
CFM @ 0.100-In. SP22,305
CFM @ 0.150-In. SP20,123
Country of Origin (subj.United States
Drive TypeBelt Drive
Electrical ConnectionHardwired
Exhaust Airflow @ 0.000.25,942 cfm
Exhaust Airflow @ 0.100.22,305 cfm
Fan RPM365
Fan StyleCylinder
Flange Width (In.)2 3/4 in
For Cut-Out Height59 1/4 in
For Cut-Out Length59 1/4 in
For Cut-Out Width59 1/4 in
For Cutout HxW59 1/4 in x 59 1/4 in
For Maximum Wall Thickn.12 in
For Use WithGeneral Exhaust Applica.
Frame FinishPolished
Frame MaterialFiberglass
Free Area23.4 sq ft
Free Area (Square-Ft.)23.36
Frequency60 Hz
Full Load Amps9.8/4.9
Full Load Current9.8 A
Guard FinishPowder Coated
Guard MaterialSteel
Guard TypeNone
Height (In.)58 1/4 in
Housing MaterialFiberglass
HP1 hp
Hz60
IncludesAluminum Shutter and Be.
Includes DehumidistatNo
Includes MotorYes
ItemAgricultural Exhaust Fan
Manufacturer Warranty L.2 yr
Max. Ambient Temp. (F)104 Degrees F
Max. Depth (In.)26 in
Maximum Airflow25,942 cfm
Maximum Ambient Operati.104 Degrees F
Motor EnclosureTotally Enclosed Air Ov.
Motor Enclosure DesignTotally Enclosed Air Ov.
Motor Horsepower1 hp
Motor InsulationClass B
Motor RPM1725
Motor Speed1,725 RPM
Motor Type3-Phase
Mounting LocationWall
Nameplate Voltage115/230V AC
Number of Blades5
Number of Fans1
Number of Shutters1
Number of Speeds1
Opening Required H (In.)59 1/4 in
Opening Required W (In.)59 1/4 in
Overall Depth26 in
Overall Height58 1/4 in
Overall Width58 in
Phase1
Propeller Dia. (In.)52 in
Propeller MaterialGalvanized Steel
Shaft Dia. (In.)5/8 in
Shaft Diameter5/8 in
Speed ControllableNo
Thermal ProtectionYes
TypeBelt Drive, Assembled
Ventilation TypeExhaust
Venturi Clearance Dia. .53 in
Venturi Depth (In.)13 in
Venturi Diameter53 in
Voltage115/230
Wattage746 W
Watts746 W
Width (In.)58 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG98670242595.791In Stock15Schaefer300.02595.79 @ 1
thumbzoomsustainablesupply.comC11223322873.411In StockSchaefer Ventilation300.02873.41 @ 1
