783XCXM4L-120A

B00DDDVBCW

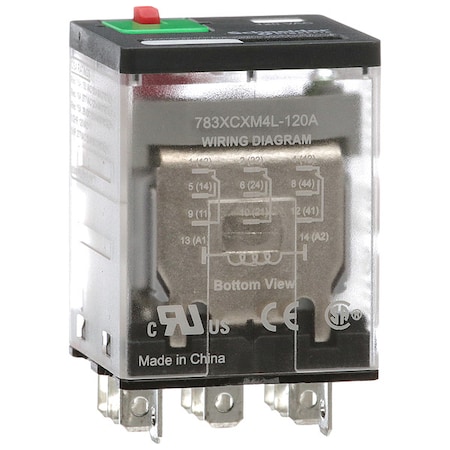

Schneider Electric/Magnecraft 783XCXM4L-120A , Relay; E-Mech; Gen-Purp; 3PDT; 15A@120VAC; Ctrl-V 120AC; Socket Mnt; Plug-In Term

Schneider Electric/Magnecraft 783XCXM4L-120A , Relay; E-Mech; Gen-Purp; 3PDT; 15A@120VAC; Ctrl-V 120AC; Socket Mnt; Plug-In Termzoom

Attributes

Key Value
AC Contact Rating - Rel.12A @ 277V, 15A @ 120V,.
Alternate Mfr Part Numb.C833001
ApprovalsCE, CSA, UL
Base Type - Plug In Rel.Square
Bifurcated ContactNo
Body Depth1.54 in
Body Depth - Relay1.10 in, 1.1 in
Body Height1.07 in
Body Height - Relay1.6 in, 1.60 in
Body Width1.2 in
Body Width - Relay1.20 in, 1.2 in
Coil Resistance2270 Ohms
Coil Voltage120 VAC ; 110/115/120/1.
Coil Volts120V AC
Contact Current Rating15 A
Contact Form3PDT
Contact Form - Relay3PDT
Contact MaterialGold Flashed Silver All.
Contact Voltage Rating300 VAC
Contacts3PDT
Control Voltage120
Current Rating15 A
DC Contact Rating - Rel.12 A @ 28V, 12A @ 28V
Depth0.157 in
Dielectric Rating2500 V (RMS) (Pole to P.
Dimensions1.10 x W 1.21 x H 1.54 .
DiodeNo
EnclosurePlastic
Family SeriesSchneider Relays, 700 S.
FeaturesGold Flashed Contacts
Flat Pin Width0.187 in
FunctionGeneral Purpose
Gross Weight0.1 lbs
Height1.575" (40mm)
HP @ 120V1/2 hp
HP @ 240V3/4 hp
ItemGeneral Purpose Relay
Item - RelayGeneral Purpose Relay
Item Number783XCXM4L-120A
Length1.212 in
Life10000000 Operations
ManufacturerSchneider
Manufacturer Part NumberC833001M
Max Current15 A
Maximum Operating Tempe.55 ?C
Mechanical LatchYes
Minimum Operating Tempe.-40 ?C
MountingPlug In
Mounting - RelayPlug In, Plug-In
Mounting TypeSocket Mount
Net Weight0.0022 lbs
Nominal Coil Voltage120 VAC
Number of Electrical Co.11
Number of Pins - Relay11
Overall Depth2.07 in
Overall Height - Relay1.85 in
Pins11
Power Consumption - Rel.1.5 VA
Primary TypePower Relays
Product Header783 Series Ice Cube Rel.
Product Series700
Published Coil Voltage120 VAC
Push To TestLockable
Push-to-TestYes
Rating @ 120 VAC15 A
Rating @ 220/240/277 VAC12 A
Rating @ 24/28/30 VDC12 A
Relay TypeElectromechanical
RoHSYes
Safety GuidedNo
Series786 Series
Socket Code - RelayE
StandardsUL, CSA, CE Marked, UL,.
Status IndicatorYes, LED and Mechanical.
TerminationQC Tabs, .187 " Flat Bl.
Voltage Rating300 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
arcade-electronics.comMCT-783XCXM4L-120A7.31In StockMagnecraft7.3 @ 1
gordonelectricsupply.com783XCXM4L120A12.491In Stock10SQUARE D12.49 @ 1
Onlinecomponents.com783XCXM4L-120A18.162126Schneider Electric18.16 @ 2
thumbzoomNewark81C931118.1910In StockSCHNEIDER ELECTRIC/LEGACY RELAY18.19 @ 10
thumbzoomGalco783XCXM4L-120A-MGCR19.85123Schneider0.119.85 @ 1
thumbzoomsustainablesupply.comC120977320.011In StockSchneider Electric0.1420.01 @ 1
grainger.caWWG6CWH420.300793821In StockSCHNEIDER ELECTRIC0.1420.30079382 @ 1
thumbzoomZoroG091328121.191291Schneider Electric0.1421.19 @ 1
Mouser528-783XCXM4L-120A24.67117Schneider Electric24.67 @ 1
us.rs-online.com7018490426.3713Schneider Electric/Legacy Relays26.37 @ 1
Kele783XCXM4L120A44.68150Schneider Electric SE Relays44.68 @ 1
