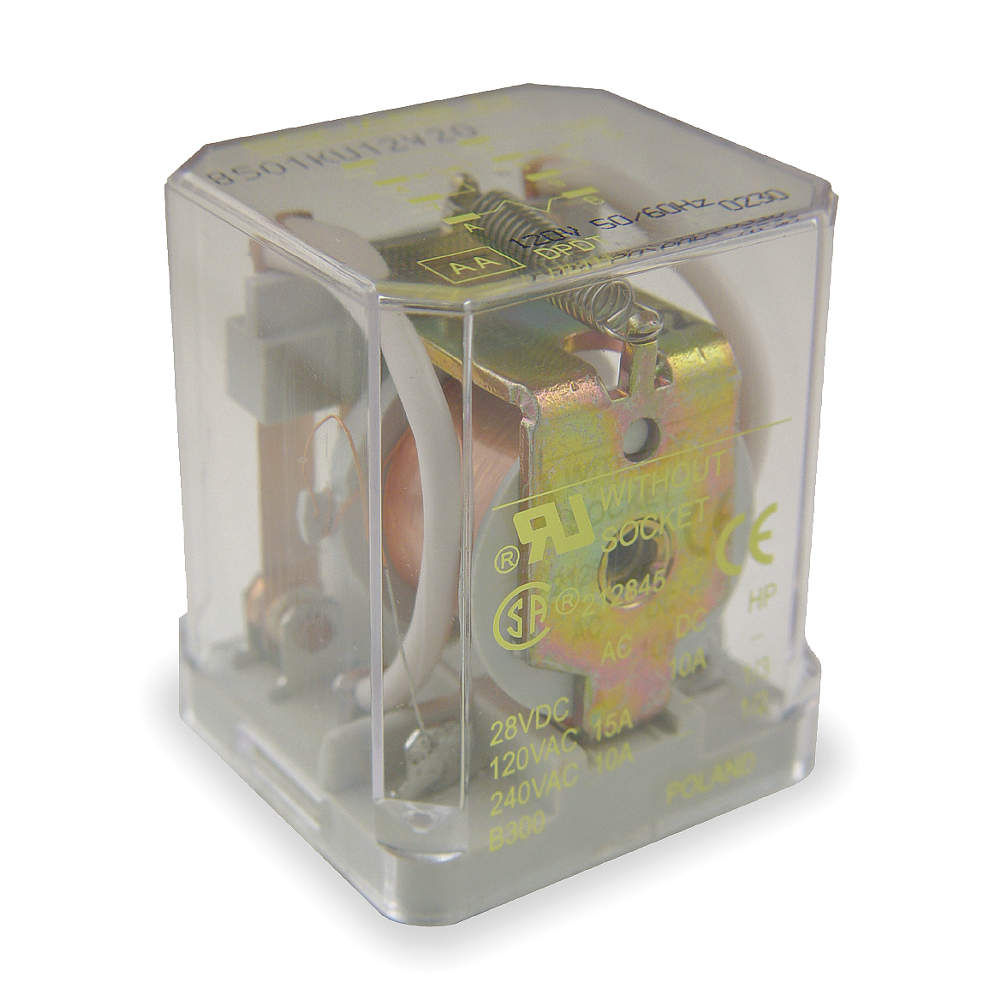

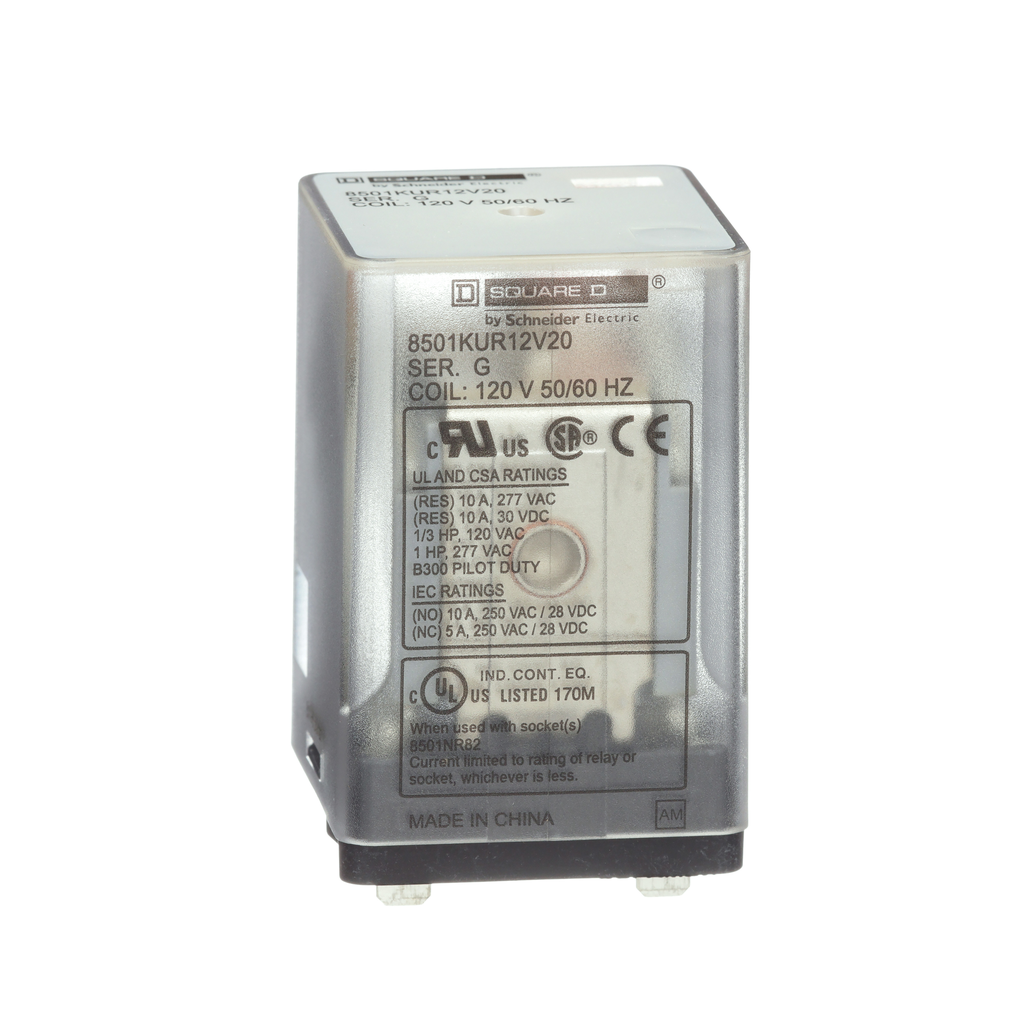

Square D by Schneider Electric 8501KUR12V20

B076F9247J

Relay, 8Pin, DPDT, 10A, 100VAC

Relay, 8Pin, DPDT, 10A, 100VACzoom

Attributes

Key Value
AC Contact Rating - Rel.10A @ 277V
ApprovalsCE, CSA, UL
Base TypeSquare
Base Type - Plug In Rel.Square
Body Depth - Relay1.4 in
Body Height - Relay1.97 in
Body Width - Relay1.37 in
BrandSchneider Electric
CategoryRelays
Coil Insulation-
Coil TypeNon Latching
Coil Voltage120VAC, 120 VAC ; 110/1.
Coil Volts120V AC
ConditionNew
Contact Current Rating12 A
Contact FormDPDT, DPDT (2 Form C)
Contact Form - RelayDPDT
Contact MaterialSilver Tin Oxide, Silve.
Contact Rating12A @ 240VAC/28VDC
Contact Rating (Current)10 A
Contact Voltage Rating300 VAC
ContactsDPDT
Control Voltage120
Country of OriginCN - China
Country of Origin (subj.China
Current Rating12 A
Current Stock42
DC Contact Rating - Rel.10A @ 30V
Depth1.4 in.
DescriptionPLUG IN RELAY, TYPE KU,.
Detailed DescriptionGeneral Purpose Relay D.
Digi-Key Part Number4008-8501KUR12V20-ND
ECCNEAR99
EnclosurePlastic
Estimated Lead Time (in.11
Family SeriesSquare D Relays, 8501K .
FeaturesSpade Terminals, -
FunctionGeneral Purpose
Green Environmental Att.RoHS 2011/65/EU Complia.
Gross Weight0.22 lbs
GTIN785901310334
Height2.25 in.
HP @ 120V1/3 hp
HP @ 240V1/2 hp
HP Rating1 hp 277 V AC || 0.33 h.
International ShippingNo
ItemGeneral Purpose Relay
Item - RelayGeneral Purpose Relay
Item Number8501KUR12V20
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number442621
Manufacturer Product Nu.8501KUR12V20
Manufacturer Standard L.2 Weeks
Materialsilver alloy (AgNi)
MfrSchneider Electric
MountingPlug In
Mounting - RelayPlug In
Mounting TypeSocket Mount, Socketable
Mpn8501KUR12V20
Must Operate Voltage-
Must Release Voltage-
Net Weight0.205 lbs
Nominal Coil Voltage120 VAC
Number of Pins8
Number of Pins - Relay8
Operate Time20 ms
Operating Temperature-40?C ~ 55?C
Overall Height - Relay2.26 in
PackageBox
Pins8
Power Consumption - Rel.3 VA
Primary TypePower Relays
Product Series8501K
Product StatusActive
Published Coil Voltage120 VAC
Push To TestNo
Rating @ 220/240/277 VAC10 A
Rating @ 24/28/30 VDC10 A
Relay TypeElectromechanical, Gene.
Release Time20 ms
RoHSYes
Safety GuidedNo
Seal Rating-
SeriesSquare D, 8501K Series
SKUZO-G3051264
SocketMfr. No. 8501NR82
Socket CodeC
StandardsCSA Certified, UL Listed
Status IndicatorNo
SubCategoryElectrical
Switching Voltage300VAC, 30VDC - Max
TerminationQC Tabs, Spade
Termination StylePlug In
Time Cycle20 ms - pick-up || 20 m.
TypeGeneral Purpose
UNSPSC39122325
UPC785901310334
UPC Code785901310334
Use With8501NR82
Voltage Rating240 V
Weight2.000000
Width1.37 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoommostelectric.com8501KUR12V2024.921In StockSQUARE D/TELEMECANIQUE24.92 @ 1
thumbzoomGalco8501KUR12V20-SQD27.621In StockSquare D0.2227.62 @ 1
thumbzoomindustrialrefrigerationparts.com8501KUR12V2028.971In StockSquare D2.028.97 @ 1
hvacdiscountstore.comSCH--8501KUR12V2030.261In StockSCHNEIDER ELECTRIC (SQUARE D)30.26 @ 1
thumbzoommayerelectric.comSQD8501KUR12V2031.231In StockSQUARE D31.23 @ 1
thumbzoomZoroG305126431.86174Schneider Electric0.231.86 @ 1
thumbzoomgordonelectricsupply.com8501KUR12V2033.391In Stock10SQUARE D33.39 @ 1
thumbzoomblackhawksupply.com8501KUR12V2034.981In StockSquare D34.98 @ 1
Newark90Y599435.61In StockSCHNEIDER ELECTRIC35.6 @ 1
us.rs-online.com7131544638.61148Square D38.61 @ 1
thumbzoomVoomi Supply8501KUR12V2039.161In StockSCHNEIDER ELECTRIC39.16 @ 1
thumbzoomsustainablesupply.comC117828141.661In StockSquare D0.241.66 @ 1
thumbzoomsimsupply.comZO-G305126441.94142Schneider Electric41.94 @ 1
Graybar2566847946.74881In StockSquare D (Schneider Electric)46.7488 @ 1
thumbzoomDigi-Key1661416149.4041In StockSchneider Electric49.404 @ 1
thumbzoommidwestapplianceparts.com8501KUR12V20-SQ-P54.771In StockSquared54.77 @ 1
thumbzoomNational Supply Network6968293860.251In StockSquare D60.25 @ 1
thumbzoomRaptor SuppliesAF9FTR77.37648751In StockSQUARE D77.3764875 @ 1
