Square D 8536SCG3V02ES

B011P23J7M

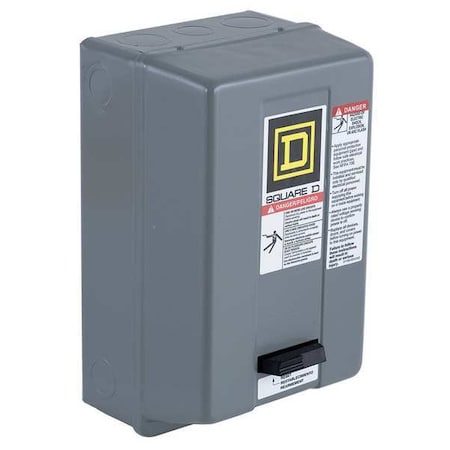

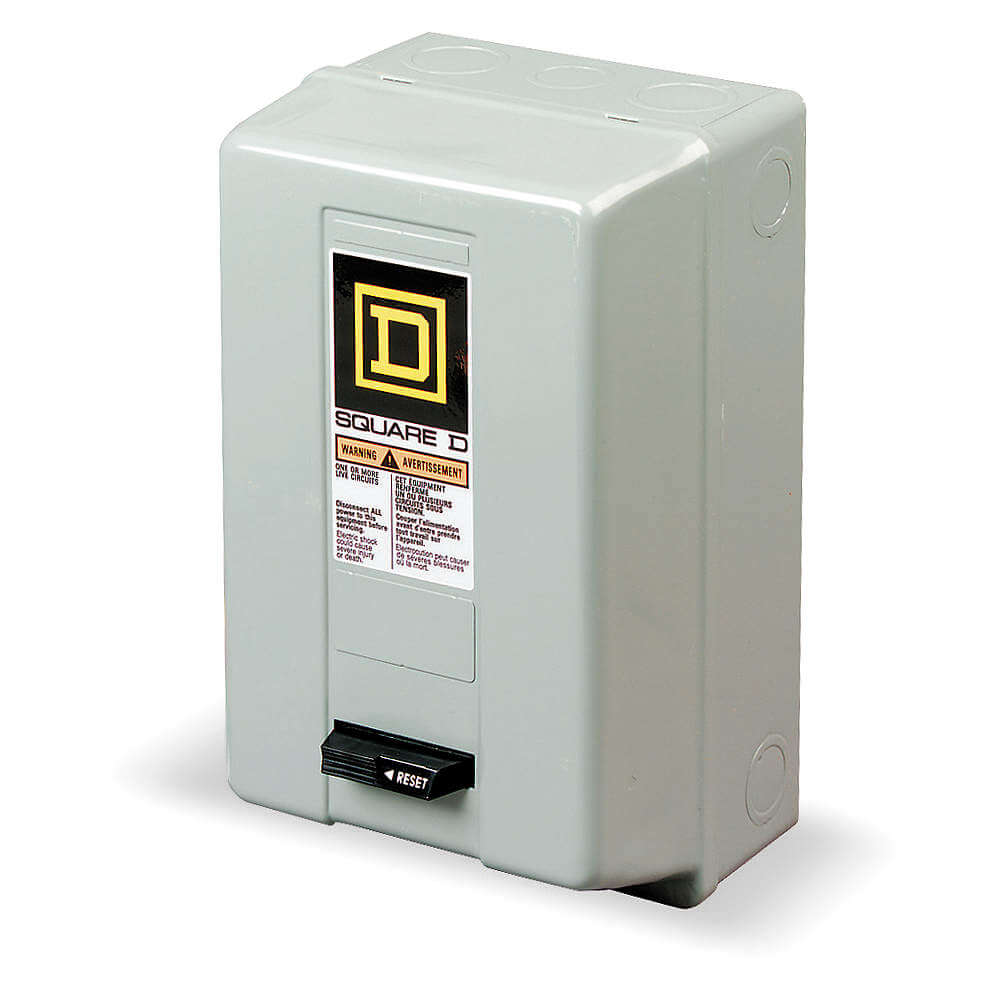

Magnetic Motor Starter, NEMA, 120V, 27A, 3P

Magnetic Motor Starter, NEMA, 120V, 27A, 3Pzoom

Attributes

Key Value
[Uc] Control Circuit Vo.110 V AC 50 Hz || 120 V.
[Ue] Rated Operational .600 V AC
Accessory GroupD3
ActionNonreversing
Amps AC27 A
Auxiliary Contact Compo.without
BrandSquare D by Schneider E.
California Proposition .Lead and lead compounds.
Catalog Number8536SCG3V02ES
China Rohs RegulationProduct out of China Ro.
Coil Voltage110 V AC 50 Hz;120 V AC.
Coil Volts120V AC
Connectionscrew clamp terminals
Control Circuitseparate control circuit
Control Typeno control units
Country of OriginMexico
Country of Origin (subj.Mexico
Depth141 mm, 5.56 in
Electrical Connectionscrew clamp terminals
Enclosure NEMA Rating1
Eu Rohs DirectiveNot compliant
Height254 mm, 10 in
HP @ 3 Phase - 208V7 1/2 hp
HP @ 3 Phase - 240V7 1/2 hp
HP @ 3 Phase - 480V10 hp
HP @ 3 Phase - 575V10 hp
Hz50/60
IncludesSeparate Control
ItemMagnetic Motor Starter
Item TypeMotor starter;No contro.
Line Rated Current27 A
Local Signallingwithout pilot light
Made in USANo
ManufacturerSchneider Electric
Motor Starter Typenon reversing
Nema Degree Of Protecti.NEMA 1 painted sheet st.
Nema Size1
NEMA Size1
Number of Poles3
Phase3, 3 phase
Poles Description3P
Product CertificationsUL Listed || CSA || NEMA
Product Or Component Ty.motor starter
Pvc FreeYes
Range Of ProductS
Rated Power In Hp7.5 HP 200 V AC || 7.5 .
Reach RegulationReference contains Subs.
Reset TypeNON-COMPENSATED BIMETAL.
Size5.56
Special Featureswithout pilot light
StandardUL LISTED-CSA-NEMA
StandardsUL Listed/CSA Certified
Starter TypeNEMA
Sub BrandS
Thermal Overload TypeIEC adapted Bi-metal 3
Thermal Unit CodeD3
UPC785901780014
Voltage Rating600 V AC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width152 mm, 6 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG6060625366.291In Stock26Square D By Schneider Electric6.94366.29 @ 1
thumbzoommostelectric.com8536SCG3V02ES397.91In StockSQUARE D/TELEMECANIQUE397.9 @ 1
thumbzoomsustainablesupply.comC1163617463.661In StockSquare D6.94463.66 @ 1
thumbzoomgordonelectricsupply.com8536SCG3V02ES535.01In Stock10SQUARE D535.0 @ 1
thumbzoommayerelectric.comSQD8536SCG3V02ES608.461In StockSQUARE D608.46 @ 1
Grainger19YC14638.01180SQUARE D638.0 @ 1
thumbzoomRaptor SuppliesAF6LQU774.98278651In StockSQUARE D774.9827865 @ 1
thumbzoomcrescentelectric.com662903834.111In StockSquare D by Schneider Electric834.11 @ 1
