Square D DTU363RB

mpnDTU363RB
brandname: Square D by Schneider Electric
manufacturername: Square D by Schneider Electric

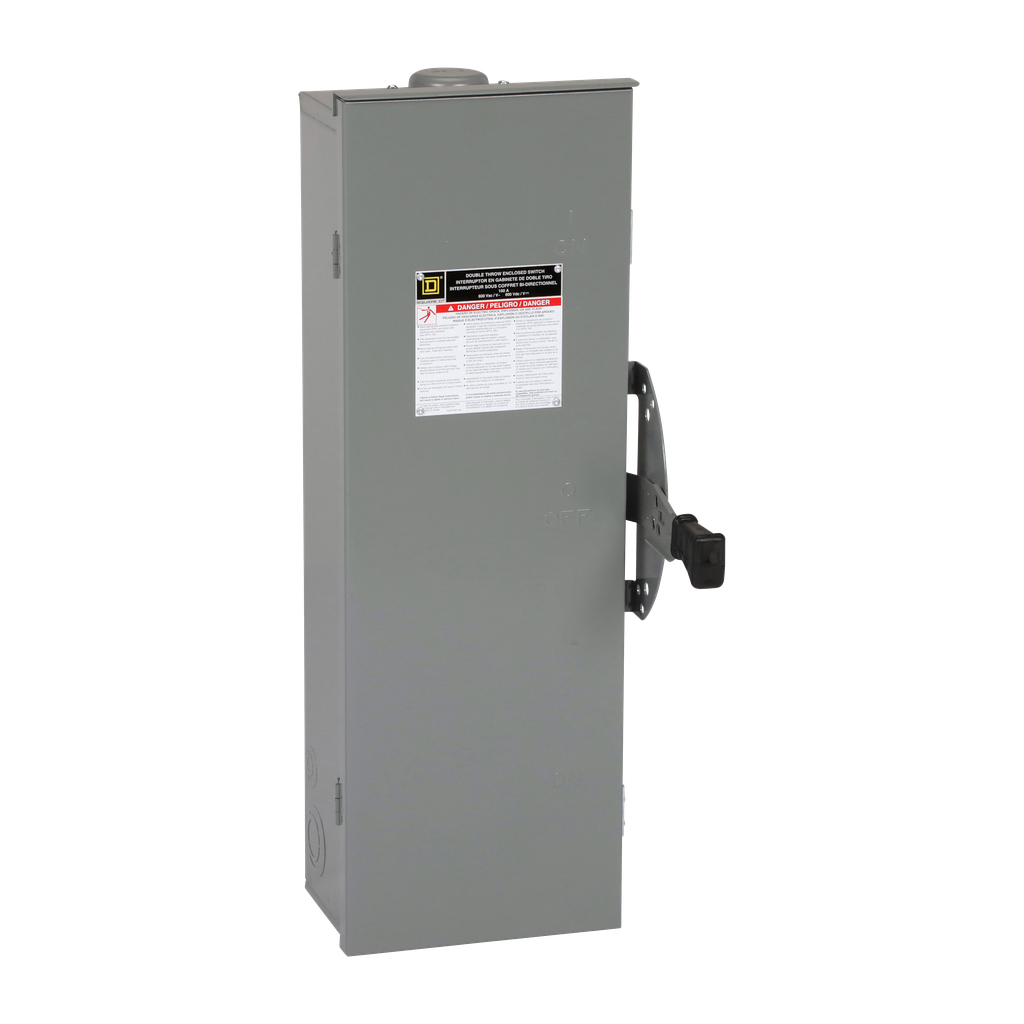

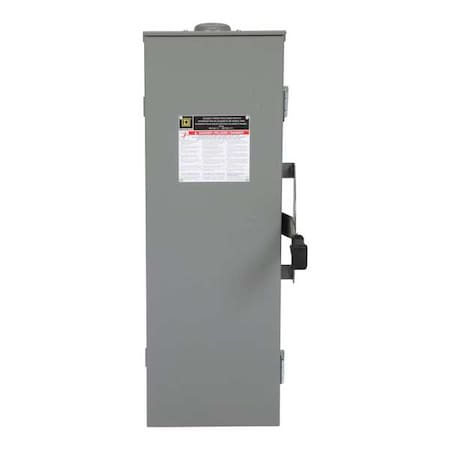

SQUARE D DTU363RB Safety Switch,600VAC,3PDT,100 Amps AC

Brand: Square D
PartNumber: DTU363RB
PackageQuantity: 1
Binding: Misc.
Manufacturer: SQUARE D
Label: SQUARE D

Attributes

Key	Value
[Ue] Rated Operational .	600 V AC \|\| 600 V DC
Amperage Rating	100, 100A
Amps AC	100 A
Awg Gauge	AWG 12...AWG 1/0 alumin.
Brand	Square D
California Proposition .	Lead and lead compounds.
Catalog Number	DTU363RB
China Rohs Regulation	Pro-active China RoHS d.
Contact Form	3PDT
Country of Origin	United States, US - Uni.
Depth	6.9 in, 6.93 in
Device Composition	none
Device Mounting	surface
Disconnector Device Type	non-fusible disconnect .
Duty	Heavy
ECCN	EAR99
Enclosure	NEMA 3R GALVANNEALED ST.
Enclosure H x W	30 3/4 in x 12 in
Enclosure Height	30 inches and larger
Enclosure Width	10 to 19 3/4 inches
Environmental Conditions	RAINPROOF AND SLEET/ICE.
Environmental Disclosure	ENVPEP1307076EN
Eu Rohs Directive	Compliant
Features	Mercury Free, Toxic Hea.
Fuse Type	Class H, K, R, J or T, .
Fusible / Nonfusible	Nonfusible
GTIN	00785901308775
Height	30.5 in, 30.83 in
HP	75 hp @ 600V AC
IP Rating	14
Item	Double Throw Safety Swi.
Item Type	Non-fusible disconnect .
Line Rated Current	100 A
Made in USA	Yes
Manufacturer	Schneider Electric
Material	GALVANNEALED STEEL
Material of Construction	Steel
Mercury Free	Yes
Metallic / Non-Metallic	Metallic
Mounting	surface
Mounting Type	surface
Nema Degree Of Protecti.	NEMA 3
NEMA Enclosure Type	3R
NEMA Rating	3R
Net Weight	18.37 kg
Number Of Poles	3
Number of Poles	3
Number of Wires	3
Phase	3
Product Certifications	UL Listed
Product Or Component Ty.	Double Throw Safety Swi.
Protection Method	Nonfusible
Reach Free Of Svhc	Yes
Reach Regulation	Free of Substances of V.
Rohs Exemption Informat.	Yes
Series Name	heavy duty
Short-Circuit Current	10 kA H or K \|\| 200 kA .
Size	6.93
Special Features	Non-Fusible
Standards	UL Listed
Sustainable Offer Status	Green Premium product
Tightening Torque	35-35 lbf.in 2.06-5.26 .
Toxic Heavy Metal Free	Yes
Type	Non-Fusible
UNSPSC	39122218
UPC	785901308775
Voltage	600V AC
Voltage Rating	600 V AC;600 V DC
Warranty	18 months
Warranty Description	Contractual Warranty:18.
Width	11.96 in, 12.0 in

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
sustainablesupply.com	C1167574	2506.33	1	In Stock		Square D	38.95	2506.33 @ 1
gordonelectricsupply.com	DTU363RB	2515.32	1	In Stock	10	SQUARE D		2515.32 @ 1
standardelectricsupply.com	2198220	2515.32	1	In Stock		Square D		2515.32 @ 1
mayerelectric.com	SQDDTU363RB	2515.32	1	In Stock		SQUARE D	40.414	2515.32 @ 1
Zoro	G3106652	2515.32	1	In Stock	26	Square D	38.95	2515.32 @ 1
Newark	79C6153	2515.33	1	In Stock		SQUARE D BY SCHNEIDER ELECTRIC		2515.33 @ 1
us.rs-online.com	71419320	2752.46	1	In Stock		Square D		2752.46 @ 1
United Electric	722020	3390.75	1	In Stock		SQUARE D		3390.75 @ 1
Graybar	22054953	3836.0	1	In Stock		Square D (Schneider Electric)		3836.0 @ 1
crescentelectric.com	105236	4017.35	1	1		Square D		4017.35 @ 1
Raptor Supplies	AG9GFR	5743.0113975	1	In Stock		SQUARE D		5743.0113975 @ 1
