TB Woods 2BK2812

mpn2BK2812
brandname: T.B. Woods
manufacturername: T.B. Woods

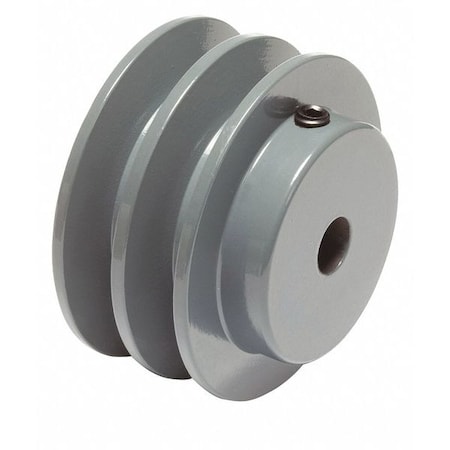

TB Woods 2BK2812 FHP Bored-to-size V-Belt Sheave, B Belt Section, 2 Grooves, 1/2" Bore, Cast Iron, 2.95" OD, 8480 max rpm

TB Woods 2BK2812 FHP Bored-to-size V-Belt Sheave, B Belt Section, 2 Grooves, 1/2" Bore, Cast Iron, 2.95" OD, 8480 max rpm

zoom

Brand: TB Woods
PartNumber: 2BK2812
Size: 8480 max rpm
PackageQuantity: 1
Binding: Misc.
Manufacturer: TB Woods
Label: TB Woods

Attributes

Key	Value
Belt section	B-5L-A-4L
Bore type	Finished with no keyway.
Bore-to-size bore diame.	0.5
Component WR2 (lbs ft2)	0.01
Country of Origin (subj.	Multiple
Datum diameter	2.6
Dimension	0.47
Face width	1.75
Face width (in)	1.75
Groove cross section se.	B
Hub location	-0.47
Hub location (in)	-0.47
I.D.	2.45
Inertia WR?	2
Inside diameter (in)	2.45
Item	FHP Sheave,2BK28 x 1/2
Material type	CI
Max RPM	8480
Number of grooves	2
O.D.	2.95
Outside diameter (in)	2.95
Pitch diameter	3.01
RPM upper limit	8480

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G1536077	17.1	1	In Stock	11	Tb Woods	2.1	17.1 @ 1
	MRO Supply	347374	78.92	1	In Stock		TB Woods		78.92 @ 1
	us.rs-online.com	73931848	87.55	1	In Stock		TB Wood's (Altra)		87.55 @ 1
