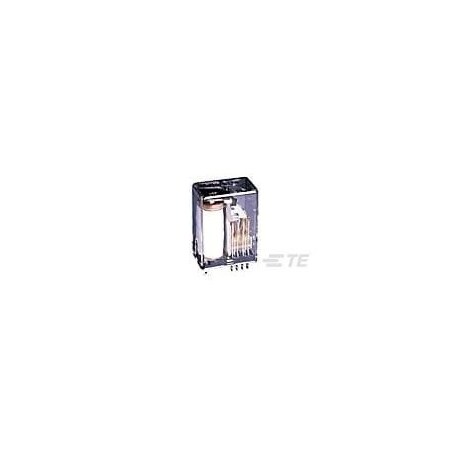

TE Connectivity / AMP 3-1393816-4

B00FRBW9TW

3-1393816-4, V23005B 7F104

3-1393816-4, V23005B 7F104zoom

Attributes

Key Value
Base Product Number1393816
Body Depth - Relay1.181 in
Body Height - Relay1.575 in
Body Width - Relay0.748 in
CategoryRelays
Coil Current34.4 mA
Coil Insulation-
Coil Resistance3.2 kOhms, 3200 ?
Coil TypeNon Latching, Monostabl.
Coil Voltage110VAC
Contact FormDPDT (2 Form C)
Contact Form - Relay4 Form C (CO)
Contact Limiting Breaki.5A
Contact Limiting Contin.5A
Contact Limiting Making.5A
Contact Limiting Short-.5A
Contact MaterialAg, Silver (Ag)
Contact Rating2A
Contact Rating (Current)5 A
Contact Voltage Rating250 VAC [ 250 VDC ]
DescriptionRELAY GEN PURPOSE DPDT .
Detailed DescriptionGeneral Purpose Relay D.
Dielectric Voltage1000 Vrms Adjacent Cont.
Digi-Key Part Number3-1393816-4-ND
Electrical Connection -.Solder Terminals
FeaturesBIFURCATED/Twin Contact.
Item - RelayCradle W Relay
ManufacturerTE Connectivity Potter .
Manufacturer Product Nu.3-1393816-4
MfrTE Connectivity Potter .
Mounting TypeSocketable, Socket
Must Operate Voltage88 VAC
Must Release Voltage-
Number of Poles2
Operating Temp. Range-40 to 70 ?C
Operating Temperature-40?C ~ 70?C
PackageBulk
Power Consumption - Rel.1440 mW
Product StatusActive
Protection CategoryRTI
Relay TypeGeneral Purpose
Seal Rating-
SeriesV23005, AXICOM
Switching Voltage250 VAC [ 250 VDC ], 25.
Terminal TypePCB-THT
Termination StylePlug In

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 3-1393816-4190.7916TE CONNECTIVITY/AMP BRAND190.79 @ 1
thumbzoomDigi-Key2398396229.3116TE Connectivity Potter & Brumfield Relays229.31 @ 1
thumbzoomZoroG001034056271.991In StockTe Connectivity271.99 @ 1
Onlinecomponents.com3-1393816-4586.8617TE Connectivity / AMP Brand586.86 @ 1
