TELEMECANIQUE SENSORS XCSD3710N12

mpnXCSD3710N12
brandname: Telemecanique Sensors
manufacturername: Telemecanique Sensors

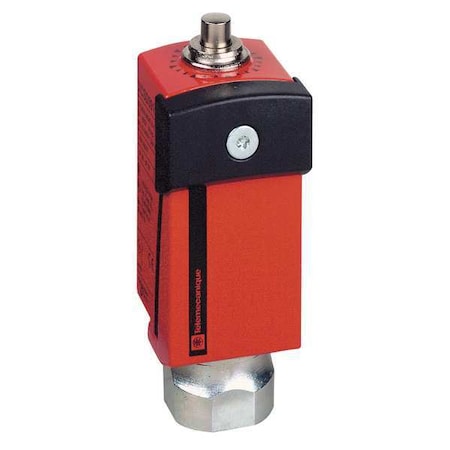

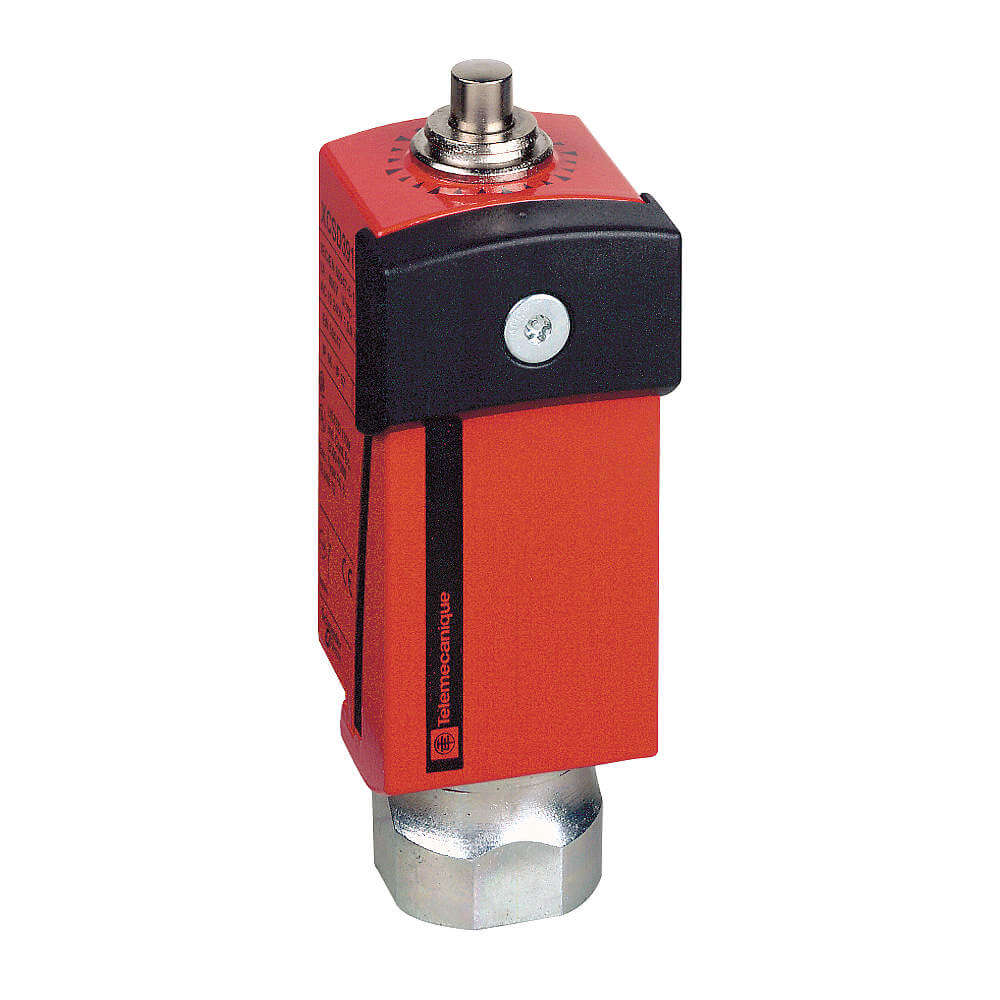

Telemecanique XCSD3710N12 Safety Limit Switch, Compact, Metal Plunger, 2 NC + 1 NO, Metal Enclosure

Brand: TELEMECANIQUE SENSORS
PartNumber: XCSD3710N12
Model: XCSD3710N12
PackageQuantity: 1
Binding: Misc.
Manufacturer: Schneider Electric
Label: Schneider Electric

Attributes

Key	Value
AC Contact Rating	1.5A @ 300V
AC contacts rating @R	1.5A / 240V AC
Action	On end approach;Slow-br.
Actuator	Metal end plunger
Actuator Length	0.39 in
Actuator Style	Plunger
Actuator Type	Pin
Amperage Rating	6
Application	PLUNGER HEAD
Body dimensions	34x65x34mm
Body material	metal
Body Material	Zamak
Body Style	Miniature
Brand	Telemecanique
Catalog Number	XCSD3710N12
Conduit Size	1/2 in NPT
Connection	terminal, 1/2" NPT
Connection Type	1/2 in NPT Conduit
Contact Configuration	1 NC + 1 NC + 1 NO
Contact current max.	1.5A
Contact Form	SPST-NO ; DPST-NC, 1NC/.
Country of Origin	France
Current Rating	5 A
DC Contact Rating	1.5A @ 300V
DC contacts rating @R	0.1A / 250V DC
Depth	1.36 in
Description/Special Fea.	15 N Minimum Force for .
Electrical Connection	terminal
Enclosure	Plastic
Function	Safety
Head Material	Zamak
Head Type	Top Plunger Head
Height	3.51 in
IP rating	IP68
IP Rating	66, 67, IP66
Item	Safety Interlock Switch
Item Type	Safety limit switch
Kind of actuator	pin plunger ?7mm
Made in USA	No
Manufacturer	TELEMECANIQUE SENSORS, .
Material	metal
Mounting holes pitch	20...22mm
Movement	Vertical
Number of mounting holes	2
Number of Poles	3
Operating Force	10.2 lb
Operating Temp. Range	-13 Degrees to 158 Deg.
Operating Temperature	-25-70 A Degrees C
Operating temperature	-25...70?C
Output configuration	NC x2 + NO
Promotion Restriction	Not eligible for promot.
Series	XCSD Series, XCSD
Size	1.38
Special Features	Plastic protective cove.
Standard	25 GN 10-500 HZ)IEC 600.
Standards	CSA, UL
Style	Metal Plunger
Sub Brand	XCSD
Switched voltage	max. 250V AC,
Switches features	slow action contacts
Termination	Screw
Trade name	PREVENTA
Type	Limit
Type of sensor	limit switch
UPC Code	3389110241136
Warranty Description	Contractual Warranty:18.
Width	1.18 in

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
Zoro	G3657604	107.99	1	In Stock	Telemecanique Sensors	0.44	107.99 @ 1
sustainablesupply.com	C1159540	129.1	1	In Stock	Telemecanique Sensors	0.44	129.1 @ 1
TME	XCSD3710N12	153.06	1	In Stock	TELEMECANIQUE SENSORS		153.06 @ 1
Newark	64M0700	154.42	1	In Stock	TELEMECANIQUE SENSORS		154.42 @ 1
Raptor Supplies	AF6FWD	220.989483	1	In Stock	TELEMECANIQUE SENSORS		220.989483 @ 1
crescentelectric.com	253966	259.01	1	In Stock	Telemecanique		259.01 @ 1
us.rs-online.com	70008196	376.5	1	9	Telemecanique Sensors		376.5 @ 1
