WIDIA 4170458

mpnCNMG431ML
brandname: WIDIA
manufacturername: WIDIA

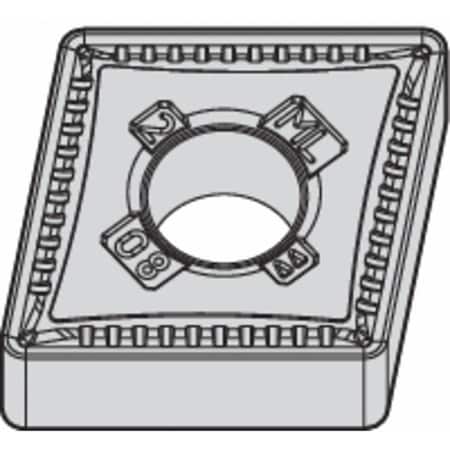

WIDIA CNMG431ML WP25CT Victory CNMG-ML High Performance Turning Inserts, Carbide, 0.016" / 0.4mm Radius, Medium Light, Grade WP25CT

WIDIA CNMG431ML WP25CT Victory CNMG-ML High Performance Turning Inserts, Carbide, 0.016" / 0.4mm Radius, Medium Light, Grade WP25CT

zoom

Brand: WIDIA
PartNumber: 4170458
Model: 4170458
Size: 0.016" / 0.4mm Radius
PackageQuantity: 1
Binding: Misc.
Manufacturer: WIDIA Products Group
Label: WIDIA Products Group

Attributes

Key	Value
ANSI Number	CNMG431ML
Cast Iron (K) Compatibi.	Yes
Chip-Breaker	Yes
Coating	Tin
Corner Radius	1
Cutting Edge Length	12.90mm
For Use With	Toolholders, Boring Bars
Grade	WP25CT
Inscribed Circle	4
Insert Application	Medium
Insert Material	Carbide
Insert Shape	Diamond
Insert Size	431
Insert Style	CNMG
ISO Number	CNMG120404ML
Item	Diamond Turning Insert
Material	Carbide
Mounting Hole Dia.	0.203"
No. of Edges	8
Non Ferrous (N) Compati.	No
Nose Radius	0.016"
Stainless (M) Compatibi.	No
Steel (P) Compatibility	Yes
Workpiece Compatibility	Cast Iron (K), Steel (P)

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G2810567	68.5	1	25		Widia	0.21	68.5 @ 25
