Ametek 4M926

B007I9U9YI

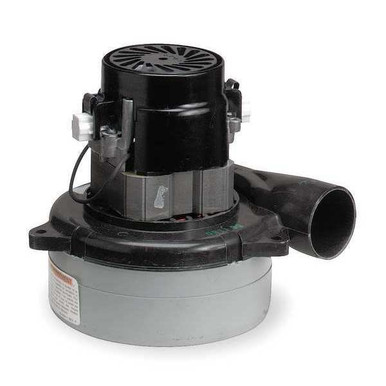

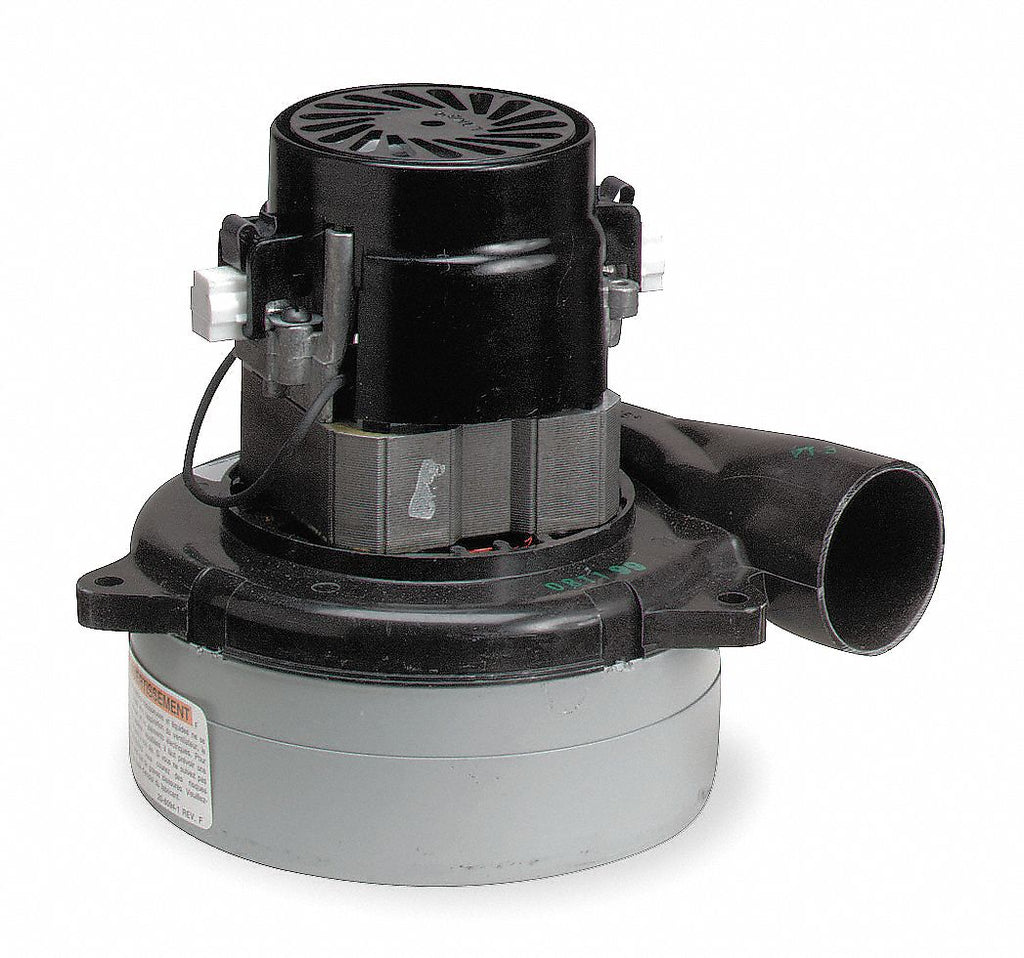

Vacuum Mtr/Blwr, Tangential, 2 Stge, 1 Spd

Vacuum Mtr/Blwr, Tangential, 2 Stge, 1 Spdzoom

Attributes

Key Value
Ambient Temperature40 Degrees C
Average Life500 hr
Bearing TypeBall
Blower Stages2
Blower TypeVacuum
Body Dia.5.7 in
BrandAMETEK
CFM @ 2-In. Orifice102.6 cfm
Current Stock3
DischargeTangential Bypass
DutyIntermittent
Duty CycleIntermittent
Footnotes69
FrameNon-Standard
Full Load Amps8.0
Hz60/50
Inlet Tube Dia.1 7/8 in
Input Power289 W
Ins. ClassA
International ShippingNo
ItemVacuum Motor
Lead TimeExpected to ship in 1-2.
Max. Air Watts288 W
Max. Ambient Temp.40 Degrees C
Max. Amps8.2 A
Motor ApplicationUniversal AC/DC Motor
Motor BearingsBall, Sleeve
Motor DesignUniversal AC/DC
Motor Efficiency GroupStandard Efficient
Motor Enclosure DesignOpen
Motor Mounting PositionAll Angle
Motor Mounting TypeLug
Motor Thermal ProtectionNone
Motor/Blower TypeBypass
Mounting Bracket Materi.Aluminum
Mounting BracketsThermoset
Mpn115894
Nameplate RPM23,134
No. of Speeds1
Nominal Voltage120 V
Overall Height6 5/16 in
Overall Length6 5/16 in
PhaseSingle
Primary TypeMotors
Replacement BrushesMfr. No. 833384-50
SKUZO-G0431304
StandardsUL Recognized (E47185),.
SubCategoryMotors/Ac Motors
TypeVacuum Motor
Vacuum (H2O Sealed)88.1
Vacuum Rating89.8
Voltage120V AC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
us.rs-online.com70252239179.711In StockAMETEK LAMB179.71 @ 1
thumbzoomsustainablesupply.comC2861714193.431In StockAmetek Lamb5.2193.43 @ 1
thumbzoomsimsupply.comZO-G0431304197.7213AMETEK197.72 @ 1
thumbzoomZoroG0431304205.99112Ametek Lamb5.2205.99 @ 1
thumbzoomRaptor SuppliesAD8TJU238.54305151In StockAMETEK LAMB238.5430515 @ 1
grainger.caWWG4M926240.220011821In StockAMETEK LAMB5.2240.22001182 @ 1
