Burndy YA29A5

B00CBNZ9U0

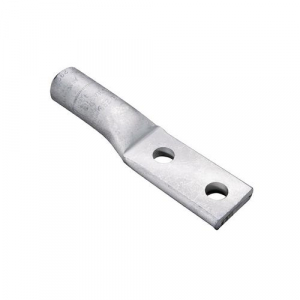

Burndy YA29A5 Hylug Uninsulated Compression Terminal, 2 Holes, 250 kcmil Conductor, 1.26" Width, 4.06" Length (Pack of 10)

Burndy YA29A5 Hylug Uninsulated Compression Terminal, 2 Holes, 250 kcmil Conductor, 1.26" Width, 4.06" Length (Pack of 10)zoom

Attributes

Key Value
ApplicationWire Termination
BrandBurndy-US, a Hubbell af.
Catalog NumberYA29A5
Color CodeRed
Color FamilyRed
Conductor - AL Str Size250 kcmil
Conductor - AL Str Size.250 kcmil
Conductor - Copper Str .250 kcmil
Conductor - Copper Str .250 kcmil
Connector TypeTerminal
Country of OriginUnited States, US - Uni.
Country of Origin (subj.United States
Die ColorRed
Die Index324
Dimension - B Length fr.1-7/16 in
Dimension - B Length in.1.45 in
Dimension - Bolt Hole S.0.39 in
Dimension - Bolt Size f.3/8
Dimension - D inch1.89 in
Dimension - Hole Size i.0.44 in
Dimension - Hole Size mm11 mm
Dimension - L Length Ov.103 mm
Dimension - Length Over.4.06 in
Dimension - N inch0.44 in
Dimension - Outside Dia.0.92 in
Dimension - Pad Width i.1.26 in
Dimension - Strip Lengt.1-5/8
Dimension - Stud Size f.3/8"
Dimension - Stud Size i.3/8
Dimension - Thread Size3/8
Dimension - Z inch0.45 in
ECCNEAR99
Feature - Barrel StyleChamfered
Feature - Barrel TypeStandard
FinishElectro Tin-Plated
Item TypeYA-A
Lug Wire Size250 kcmil
Made in USAYes
ManufacturerBurndy, a Hubbell affil.
MaterialAluminum
Physical Attribute - Nu.2
Physical Attribute - To.Straight
Physical Attribute - To.Standard
PlatedY
Plating TypeTin - Electro Plated
Rating - KVA35 kV
StandardUL 486A-486B
Stud Size3/8 in.
Sub BrandHYLUG
Temperature Rating194
Trade NameHYLUG
UNSPSC39121432
UPC781810023471
UPC 12 Digit7818100234711
Voltage - Maximum35000
Voltage Rating35
Wire Size250 kcmil

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomusmegastore.comYA29A541.45110Burndy41.45 @ 10
thumbzoomgordonelectricsupply.comYA29A546.53110BURNDY46.53 @ 10
Graybar9213373747.6784110Burndy47.6784 @ 10
thumbzoomcrescentelectric.com129211184.18110Burndy-US, a Hubbell affiliate84.18 @ 10
thumbzoomZoroG702438634302.6101059Burndy302.6 @ 10
