- mpnYA392N
- brandname: Burndy
- manufacturername: Burndy

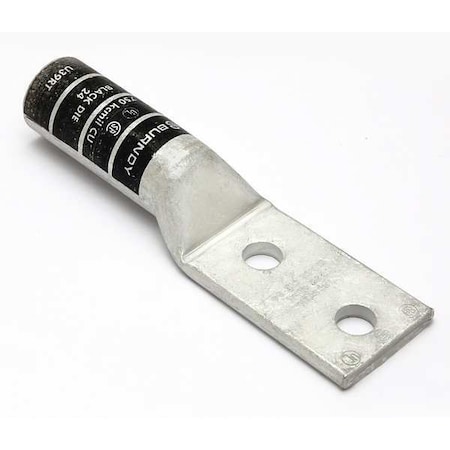

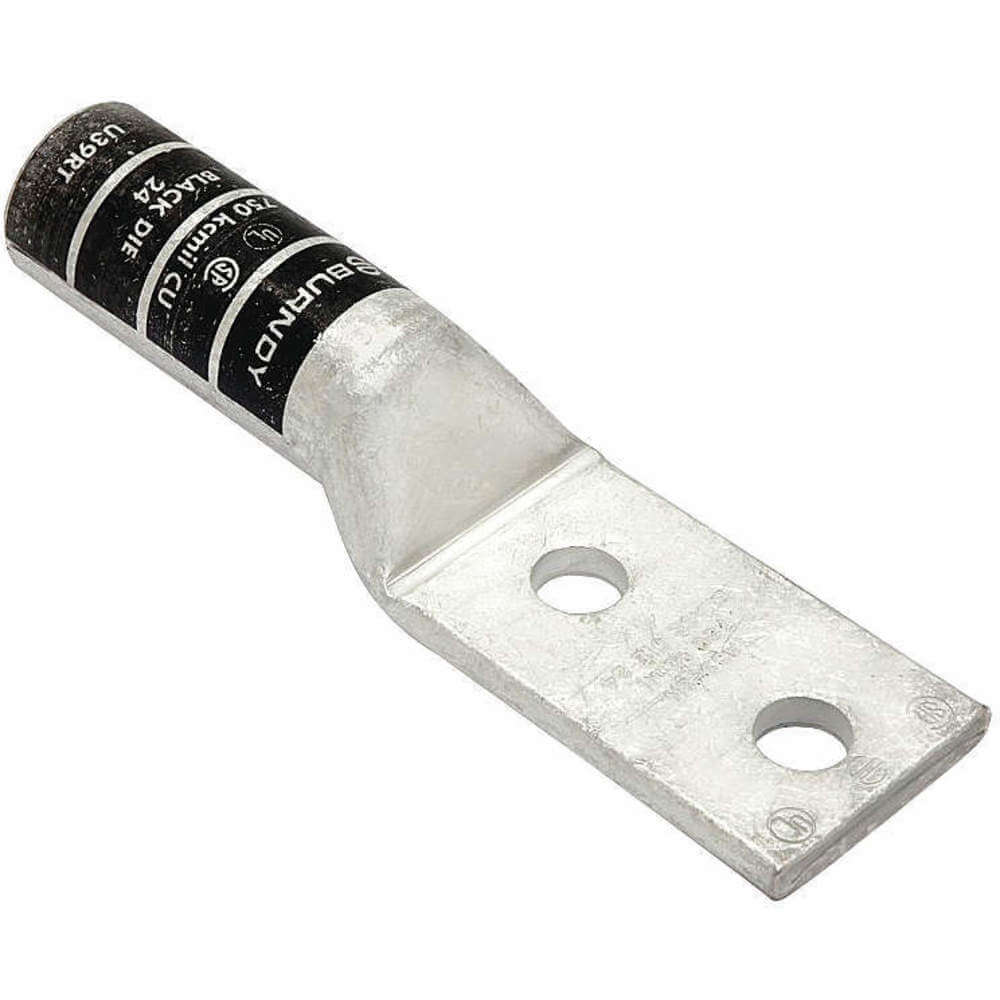

Burndy YA392N Two Hole Hylug Code Conductor Long Barrel Copper Compression Terminal, 750 kcmil Conductor, 1/2" Stud Hole Size, 1-3/4" Stud Hole Spacing, 1.91" Tongue Width, 6.87" Length,Black
- Brand: Burndy
- PartNumber: YA392N
- Model: YA392N
- Color: Black
- Size: 750 kcmil
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Burndy
- Label: Burndy
Attributes
| Key | Value |
|---|
| Application | For Code Conductor, Wir. |
| Approvals | CSA, UL |
| Barrel Length | Long |
| Barrel Outside Diameter | 1.3 in |
| Barrel Size | Long |
| Barrel Style | Chamfered |
| Brand | Burndy Canada |
| Cable Size | 750 kcmil |
| Carton | 1 |
| Category Description | Comp & Mech Lugs and Bu. |
| Certification - CSA App. | Yes |
| Certification - cULus | No |
| Certification - ETL | No |
| Certification - UL Reco. | No |
| Classification | Comp & Mech Lugs and Bu. |
| Color | Black |
| Color Code | Black |
| Color Family | Black |
| Colour Code | Black |
| Conductor - Copper DLO . | N/A |
| Conductor - Copper Str . | 750 kcmil |
| Conductor - Copper Str . | 750 kcmil |
| Conductor - Material | Copper |
| Conductor Size | 750 kcmil |
| Connector Type | Terminal, Straight Barr. |
| Contact Finish | Tin |
| Country of Origin | US - United States |
| Description | 750 Cu 2H Long Nema |
| Die Code | 24 |
| Die Color | Black |
| Die Index | 24 |
| Dimension - B Length fr. | 2-7/8 in |
| Dimension - B Length in. | 2.88 in |
| Dimension - Bolt Hole S. | 0.52 in |
| Dimension - Bolt Size f. | 1 to 2, 1/2 |
| Dimension - Bolt Size i. | 0.5 |
| Dimension - Hole Size f. | 1 to 2 |
| Dimension - Hole Size i. | 0.56 in |
| Dimension - Hole Size mm | 14 mm |
| Dimension - L Length Ov. | 174 mm |
| Dimension - Length Over. | 6.87 in |
| Dimension - N inch | 0.63 in |
| Dimension - Outside Dia. | 1.30 in |
| Dimension - Pad Width i. | 1.91 in |
| Dimension - Strip Lengt. | 42415, 2-15/16 |
| Dimension - Stud Size f. | 1 to 2 |
| Dimension - Stud Size i. | 1 to 2, 1/2 |
| Dimension - Z inch | 0.64 in |
| ECCN | EAR99 |
| extra long description | BUR YA392N 750 CU 2-HOL. |
| Family Series | Burndy Terminals, YA Se. |
| Feature - Barrel Style | Chamfered |
| Feature - Barrel Type | Long |
| Finish | Tin-Plated |
| For Conductor Material | Copper |
| For Stranded Copper Wir. | 750 kcmil |
| For Stranded Copper Wir. | 750 kcmil |
| For Stud Size | 1/2 in |
| For Wire Size | 750 kcmil |
| For Wire Type | Stranded |
| Gross Weight | 1.06 lbs |
| GTIN | 00781810522356 |
| Hole Center to Center | 1.75 in |
| Hole Center to End | 0.63 in |
| Hole Size | 0.56 in |
| Industry Standard(s) | UL468A-468B |
| Inspection Hole | No |
| Insulated | Non-Insulated |
| Item | Two-Hole Lug Compressio. |
| Item Number | YA392N |
| Length | 6.87" |
| Length (Straight Wirewa. | 6.87 in |
| Long Description | Copper Compression Lug,. |
| Lug Compression Connect. | Two-Hole Lug Compressio. |
| Lug Wire Size | 750 kcmil |
| Manufacturer | Burndy |
| Manufacturer Part Number | YA392N |
| Manufacturers Part Numb. | YA392N |
| Material | Copper |
| Maximum Operating Tempe. | 194 Degrees F |
| Maximum Voltage | 35 kVAC, 35 kV AC |
| Minimum Pack Quantity | 1 |
| Net Weight | 1.065 lbs |
| Number of Holes | 2 |
| Overall Length | 6.87 in |
| Overall Width | 1.91 in |
| Package | 6 |
| Peep Hole | No |
| Physical Attribute - Nu. | 2 |
| Physical Attribute - To. | Straight |
| Physical Attribute - To. | Standard |
| Plate Material | Electro Tin |
| Plated | Y |
| Plating Material | Tin |
| Plating Type | Tin |
| Product Series | YA |
| Product Type | Terminal |
| Rating - KVA | 35 kV |
| Rating - Minimum Voltage | 600 |
| RoHS Compliant | Yes |
| Special Features | Terminal, Features: UL . |
| standard | UL 486A-486B |
| Standards | CSA Certified, UL 486A-. |
| Standards - Industry St. | UL468A-468B |
| Standards - RoHS Compli. | CM |
| Strip Length | 2 15/16 in |
| Stud Hole Spacing | 1.75 in. |
| Stud Size | 1/2 in., 1/2 ", 1/2 in |
| Stud Spacing | 1.75 |
| sub brand | HYLUG |
| Sub Brand | HYLUG |
| Terminal Material | Copper |
| Terminal Type | Ring |
| Termination Style | Crimp |
| Tongue Angle | Straight |
| Tongue Length | 1.27 in |
| Tongue Style | Standard |
| Tongue Thickness | 0.27 in |
| Tongue Width | 1.91 ", 1.91 in |
| Tongue Width Ranges | 1.51 inches and wider |
| Trade Name | HYLUG?, HYLUG? |
| Type | Long Barrel, Tin Plated |
| UL Listed | Yes |
| UNSPSC | 39121405 - Cable or wir. |
| UPC | 781810522356 |
| UPC 12 Digit | 7818105223566 |
| UPC Code | 781810522356 |
| Use With | Copper |
| Voltage - Maximum | 35000 |
| Voltage Rating | 35,000 |
| Weight per each | 1.143 |
| Width | 1.91" |
| Wire Size | 750 kcmil |
| Wire Size (kcmil) | 750 kcmil |
| Wire Size Range | 750 kcmil - 750 kcmil |
| Wire Strip Length | 2.75 " |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| steinerelectric.com | 19563 | 33.12 | 1 | In Stock | | BURNDY | | 33.12 @ 1 |
 | Kelly Hayes | YA392N | 43.89 | 1 | 1170 | | Burndy | | 43.89 @ 1 |
 | Specialized Products | 109X380 | 44.8 | 1 | In Stock | 20 | Burndy | | 44.8 @ 1 |
| Graybar | 88048626 | 46.6256 | 1 | 30 | | Burndy | | 46.6256 @ 1 |
 | Zoro | G4665717 | 63.55 | 1 | 37 | | Burndy | 1.1 | 63.55 @ 1 |
 | Galco | YA392N-BURN | 64.91 | 1 | In Stock | | Burndy | 1.065 | 64.91 @ 1 |
 | usmegastore.com | YA392N | 79.69 | 1 | In Stock | | Burndy | | 79.69 @ 1 |
| us.rs-online.com | 71487226 | 96.38 | 1 | 5 | | BURNDY | | 96.38 @ 1 |
 | Elliott Electric | YA392N | 105.27 | 1 | In Stock | | Burndy | 1.143 | 105.27 @ 1 |
 | mayerelectric.com | BURYA392N | 112.09 | 1 | 46 | | BURNDY | | 112.09 @ 1 |
| grainger.ca | WWG22C347 | 112.3910591 | 1 | In Stock | | BURNDY | 1.1 | 112.3910591 @ 1 |
 | Raptor Supplies | AB6RKM | 129.9589785 | 1 | In Stock | | BURNDY | | 129.9589785 @ 1 |
