Burndy YA39L6

B00CBNLBB6

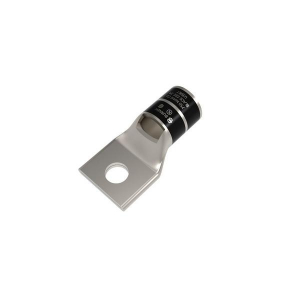

Burndy YA39L6 One Hole Hylug Code Conductor Standard Barrel Copper Compression Terminal, 750 kcmil Conductor, 1/2" Stud Hole Size, 1.91" Tongue Width, 3.41" Length,Black

Burndy YA39L6 One Hole Hylug Code Conductor Standard Barrel Copper Compression Terminal, 750 kcmil Conductor, 1/2" Stud Hole Size, 1.91" Tongue Width, 3.41" Length,Blackzoom

Attributes

Key Value
ApplicationWire Termination
ApprovalsCSA, UL
BrandBurndy-US, a Hubbell af.
Catalog NumberYA39L6
Certification - CSA App.Yes
Certification - cULusNo
Certification - UL Reco.No
ColorBlack
Color CodeBlack
Color FamilyBlack
Conductor - Copper DLO .N/A
Conductor - Copper Str .750 kcmil
Conductor - Copper Str .750 kcmil
Conductor - MaterialCopper
Connector TypeTerminal
Country of OriginUnited States, US - Uni.
Die ColorBlack
Die Index24
Dimension - B Length fr.1-7/16 in
Dimension - B Length in.1.42 in
Dimension - Bolt Hole S.0.52 in
Dimension - Bolt Size f.1/2
Dimension - D inch1.08 in
Dimension - Hole Size mm13 mm
Dimension - L Length Ov.87 mm
Dimension - Length Over.3.41 in
Dimension - N inch0.53 in
Dimension - Outside Dia.1.30 in
Dimension - Pad Width i.1.91 in
Dimension - Strip Lengt.1-15/16
Dimension - Stud Size f.1/2
Dimension - Stud Size i.1/2
Dimension - Z inch0.55 in
ECCNEAR99
Family SeriesBurndy Terminals, YA-L .
Feature - Barrel TypeStandard
FinishElectro Tin-Plated
Gross Weight0.0343 lbs
Industry Standard(s)UL467
InsulatedNon-Insulated
Item NumberYA39L6
Item TypeStandard Barrel, Tin Pl.
Made in USAYes
ManufacturerBurndy, Burndy, a Hubbe.
Manufacturer Part NumberYA39L6
MaterialCopper
Max Temp194 ?F
Net Weight0 lbs
Physical Attribute - Nu.1
Physical Attribute - To.Straight
PlatedY
Plating MaterialElectro-Tin
Plating TypeTin - Electro Plated
Product SeriesYA-L
Rating - KVA35 kV
Rating - Minimum Voltage600
Special FeaturesFeatures: Compression T.
StandardUL 486A-486B
Standards - RoHS Compli.CM
Stud Size1/2 in.
Sub BrandHYLUG,TERMINALS
Terminal MaterialCopper
Terminal TypeBarrel - Standard
Tongue Width1.91 "
Trade NameHYLUG?
TypeStandard Barrel, Tin Pl.
UL ListedYes
UNSPSC39121405
UPC781810147276
Use WithCode Conductor
Voltage - Maximum35000
Voltage Rating35
Volts600 V
Wire Size750 kcmil
Wire Size (kcmil)750 kcmil
Wire Strip Length1.9375 "

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
steinerelectric.com92763446.291In StockBURNDY46.29 @ 1
thumbzoomMegadepotYA39L667.041In StockBurndy67.04 @ 1
thumbzoomusmegastore.comYA39L667.041In StockBurndy67.04 @ 1
thumbzoomgordonelectricsupply.comYA39L669.091In StockBURNDY69.09 @ 1
kirbyrisk.com241824369.511In StockBurndy69.51 @ 1
Graybar2200413477.12321In StockBurndy77.1232 @ 1
thumbzoomGalcoYA39L6-BURN90.361In StockBurndy0.034390.36 @ 1
thumbzoomcrescentelectric.com458380109.091In StockBurndy-US, a Hubbell affiliate109.09 @ 1
