- mpn4Z248
- brandname: Dayton
- manufacturername: Dayton

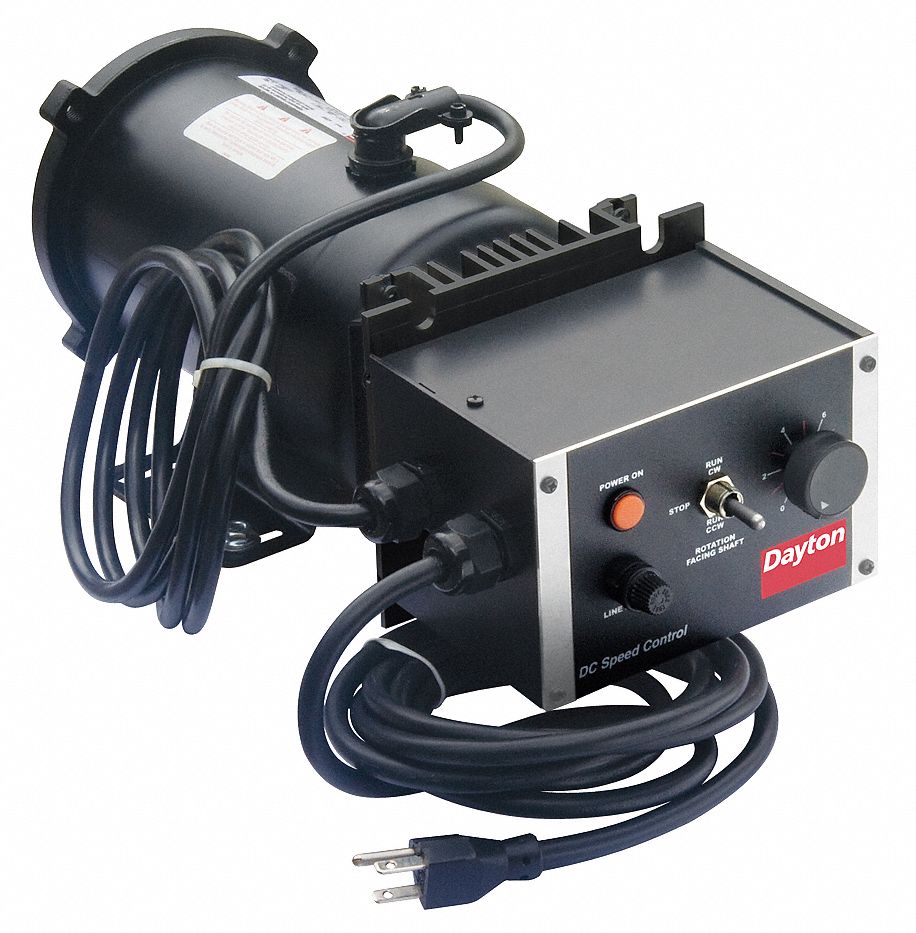

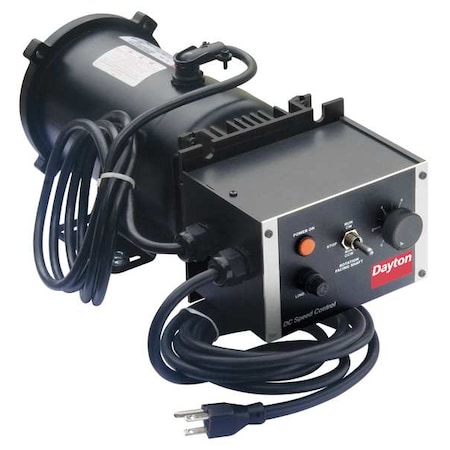

Adjustbl Speed Motor, Perm Magnet DC, 1/4
- Brand: Dayton
- PartNumber: 4Z248
- PackageQuantity: 1
- Manufacturer: Dayton
- Label: Dayton
Attributes
| Key | Value |
|---|
| Ambient Temperature | 40 Degrees C |
| Amps | 2.5 |
| Application | For Packaging Equipment. |
| ASIN | B000BN0W68 |
| Batteries Required? | No |
| Bearings | Ball |
| Bolt Circle Dia. | 5 15/16 in |
| Brush Type | Carbon |
| Certification | NEMA |
| Cord | 3 Conductor |
| Country of Origin (subj. | United States |
| Cross Reference | 1F800, 2M167 |
| Duty Cycle | Continuous |
| Enclosure | Totally Enclosed Fan-Co. |
| Enclosure Type | TEFC (Totally Enclosed . |
| Features | Soft Start Acceleration. |
| Frame | 56C |
| Full Load Amps | 2.5 A, 2.5 |
| Full Load Torque | 35 in-lb |
| HP | 1/4 |
| HP @ 1725 RPM | 0.25 hp |
| Includes | Fused Control Protectio. |
| Input Voltage | 115V AC |
| Ins. Class | F |
| Insulation Class | F |
| Item | Adjustable Speed Motor |
| Item Package Quantity | 1 |
| Length Less Shaft | 11 3/4 in, 11 3/4" |
| Manufacturer | Dayton |
| Manufacturers Warranty . | 1 yr |
| Max. Ambient Temp. | 40 Degrees C, 40 Degre. |
| Max. Torque | 9.1 in-lb |
| Maximum Ambient Tempera. | 40? C |
| Motor Application | Washdown, Variable Speed |
| Motor Bearings | Ball |
| Motor Design | Permanent Magnet DC |
| Motor Diameter | 6-1/2" |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Steel |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1, 1.00 |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Motor Type | Permanent Magnet DC |
| Mounting | C-Face, C-face with Rem. |
| Nameplate RPM | 1,750 |
| Nominal Efficiency | 81.3 % |
| Output Voltage | 90V DC |
| Overall Height | 7 in |
| Overall Length | 15 1/2 in, 15-1/2" |
| Overall Width | 6 1/2 in |
| Part Number | 4Z248 |
| Phase | DC |
| Product Type | DC |
| Removable Base | Yes |
| Rotation | Reversible, CW/CCW |
| RPM | 1750 |
| RPM Range | 1,701-1,800 |
| Service Factor (SF) | 1.00 |
| Shaft Dia. | 5/8 in, 5/8" |
| Shaft Diameter | 5/8" Keyed |
| Shaft Length | 1-7/8", 1 7/8 in |
| Ship Weight | 28 lbs. |
| Speed Range | 50 to 1 |
| Standards | UL Listed and C-UL List. |
| Stud Quantity | 4 |
| Thermal Protection | None |
| UNSPSC Code | 39120000 |
| Voltage | 90, 90V DC |
| Voltage Compatibility | 90V DC |
| Volts | 90VDC |
| Weight | 34 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Amazon | B000BN0W68 | 972.05 | 1 | In Stock | | Dayton | | 972.05 @ 1 |
| AmazonTP | B000BN0W68 | 1003.55 | 1 | In Stock | 3 | Dayton | | 1003.55 @ 1 |
| AmazonUNK | B000BN0W68 | 1003.55 | 1 | In Stock | | Dayton | | 1003.55 @ 1 |
 | Zoro | G3357146 | 1092.05 | 1 | In Stock | | Dayton | 34.0 | 1092.05 @ 1 |
| grainger.ca | WWG4Z248 | 1164.06072874 | 1 | In Stock | | DAYTON | 28.0 | 1164.06072874 @ 1 |
 | sustainablesupply.com | C1562559 | 1252.65 | 1 | In Stock | | Dayton | 28.0 | 1252.65 @ 1 |
 | emotorpro.com | 4Z248 | 1731.9 | 1 | In Stock | | Dayton | 28.0 | 1731.9 @ 1 |
