Dormer A9773/16

B003JY6AV2

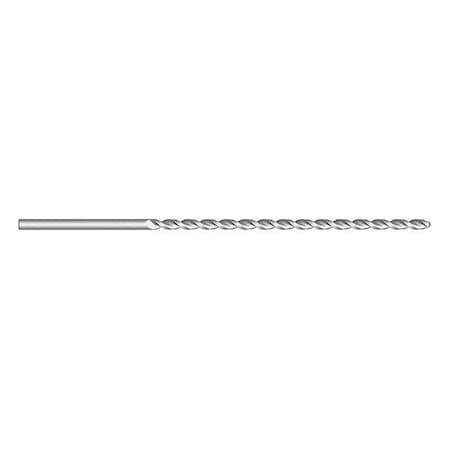

Dormer A977 Cobalt Steel Extra Long Length Drill Bit, Parabolic Flute, PFX Style, Uncoated (Bright) Finish, Round Shank, 130 Degree Point Angle, 3/16"

Dormer A977 Cobalt Steel Extra Long Length Drill Bit, Parabolic Flute, PFX Style, Uncoated (Bright) Finish, Round Shank, 130 Degree Point Angle, 3/16"zoom

Attributes

Key Value
ApplicationMetalworking
Application MaterialP - Steel and cast steel
Basic StandardDIN 1869 / 2
CoatingBright
Connection (shank) desc.Cylindrical shank
Connection diameter - m.4.76
Coolant FedNon-Coolant Through
Coolant ThroughNo
Country of Origin (subj.France
Cutting diameter - frac.3/16
Cutting diameter - inch.0.1875
Cutting diameter - mill.4.76
Cutting diameter tolera.h8
Cutting DirectionRight Hand
Decimal Equivalent0.1875
Depth x Dia. Ratio20xD
Depth:Dia. Ratio20xD
Dimension TypeFractional Inch
Drill Bit Dimension TypeFractional Inch
Drill Bit FinishBright
Drill Bit GroupingDrill Bit
Drill Bit MaterialHigh Speed Steel
Drill Bit Point Angle130 Degrees
Drill Bit Size3/16 in
Drill LengthXL
Drill StyleXL
EDP number347225
FinishBright
Flute Length170.00 mm
Flute TypeDIN 1869 / 2
Hand (Cutting direction)Right
ItemExtra Long Drill Bit
Length chip flute - mil.170
List NumberA977
MaterialHSS-E, High Speed Steel
Material applicationP - Steel and cast steel
Metric SizeMetric
MID number5973118
Number of Flutes0
Number of Pieces1
Ordering code ANSIA9773/16
Overall Length245.00 mm
Overall length - millim.245
Point Angle130 Degrees
Point Angle (SIG)130
Point TypeStandard
Shank Dia.11/64 in
Shank ShapeStraight
Shank Type - MachiningStraight
Size3/16"
Spiral formQuick Spiral
StandardsDIN
Surface treatementOriginal surface
Usable length (ULDR)20

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG954429737.871In StockDormer0.0737.87 @ 1
thumbzoomMRO Supply607413847.212In StockDormer Pramet47.21 @ 2
