Hayward TBH1150ASTE0000

mpnTBH1150ASTE0000
brandname: HAYWARD FLOW CONTROL
manufacturername: HAYWARD FLOW CONTROL

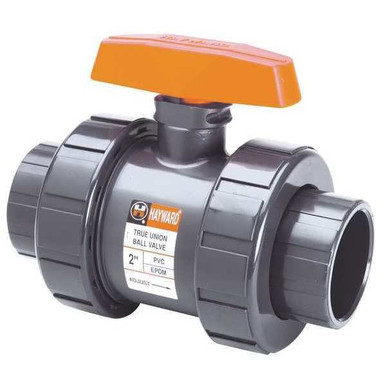

Hayward TBH1150ASTE0000 Series TBH True Union Ball Valve, Socket/Threaded End, PVC with EPDM Seals, 1-1/2" Size

Brand: Hayward
PartNumber: TBH1150ASTE0000
Model: TBH1150ASTE0000
Color: PVC
Size: 1.5 Inch
PackageQuantity: 1
Binding: Misc.
Manufacturer: Hayward Industries
Label: Hayward Industries

Attributes

Key	Value
ANSI Specifications	ANSI 372, ANSI 61
ASTM Specifications	ASTM D-1784 Class 12454
Ball Material	PVC
Body Material	PVC
Body Seal Material	EPDM
Body Style	True Union
Brand	Hayward Flow Control
Catalog Page Number	P-459
Clean Bagged	No
Collection	TBH Series
Color Finish	Grey
Compliance	NSF/ANSI 61
Connection	Threaded x Socket
Connection Type	Socket x Thread
Country of Origin	USA
Country of Origin (subj.	United States
Current Stock	42
Description:	1 1/2" PVC TBH Series B.
End Connection 1	Socket Weld
End Connection 2	Threaded
End Connections	Socket Weld x Threaded
Features	Lockout/Tagout Directly.
FM Approved	No
General Connection Type	Socket
Green Environmental Att.	RoHS 2011/65/EU Complia.
Handle Material	Glass Filled Polypropyl.
Handle Type	Locking Lever
Hose I.D.	1-1/2 in
IAPMO Listed	No
International Shipping	No
ISO Specifications	ISO 5211
Item	Ball Valve
Item Number	19938
Length	7-39/100 in
Manufacturer	HAYWARD INDUSTRIAL PROD.
Manufacturer Part #	TBH1150ASTE0000
Material	PVC, Plastic
Material Type	PVC
Max. Pressure	250 psi CWP
Maximum Temperature	150
MFG Part #:	TBH1150ASTE0000
Minimum Temperature	60
Mpn	TBH1150ASTE0000
NSF Certified	Yes
NSF Specifications	NSF 372, NSF 61
Pipe Size	1 1/2"
Port	Full
Pressure Class	250#
Product Type	Ball Valve
Recommended Valve Appli.	Chemical, Marine, Pulp .
Schedule Class	80
Seal	EPDM
Seat Material	PTFE
Size	1-1/2"
SKU	ZO-G6321590
Standards	NSF/ANSI 61
Stem Material	PVC
Stem Type	Blowout Proof
SubCategory	Plumbing
Supplier:	HAYWARD INDUSTRIAL PROD.
Temp. Range	0 Degrees to 140 Degre.
Tube Size	1 1/2"
UL Listed	No
UPC	610377350549
UPC:	0610377350549
Valve Bonnet Type	Union
Valve Port Opening	Full Port
Valve Seat Material	PTFE
Valve Size	1-1/2 in
Valve Stem	Blowout-proof
Valve Structure	1-Piece
Valve Type	Ball Valve
Weight	3.4 lbs, 2.62

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
blackhawksupply.com	TBH1150ASTE0000	92.44	1	In Stock	Hayward		92.44 @ 1
usplastic.com	19938	95.01	1	In Stock	Hayward	3.4	95.01 @ 1
Zoro	G6321590	102.64	1	251	Hayward Flow Control	3.32	102.64 @ 1
simsupply.com	ZO-G6321590	125.12	1	42	Hayward Flow Control		125.12 @ 1
ferguson.com	7486025	154.55	1	In Stock	Hayward Industrial Products		154.55 @ 1
National Supply Network	10100014	155.57	1	In Stock	Hayward Flow Control		155.57 @ 1
kscdirect.com	HAY TBH1150ASTE0000	168.07	1	In Stock	HAYWARD INDUSTRIAL PRODUCTS		168.07 @ 1
