- mpn321110
- brandname: Jet
- manufacturername: Jet

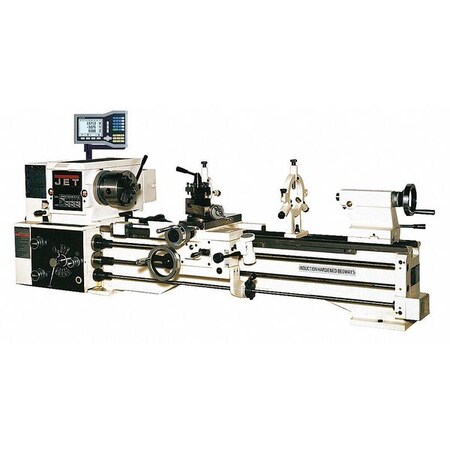

Jet BDB-1340A With ACU-RITE VUE DRO
- Brand: Jet
- PartNumber: 321110
- PackageQuantity: 1
- Manufacturer: Jet
- Label: Jet
Attributes
| Key | Value |
|---|
| Bed Width (In.) | 7-3/8 |
| Carriage Travel (In.) | 35 </td, 35 |
| Compound Slide Travel (. | 2-11/16 </td |
| Compound Travel (In.) | 2-11/16 |
| Country of Origin (subj. | China |
| Cross Feed Rates | 40 |
| Cross Slide Travel (In.) | 6-5/16 </td |
| Cross Travel (In.) | 6-5/16 |
| Digital Readout | ACU-RITE VUE </td |
| Distance Between Center. | 40 </td, 40 |
| Drive | Belt </td |
| Features | One of the most popular. |
| Follow Rest Capacity (I. | 2-3/4 </td |
| Gap Length (In.) | 8 |
| Includes | Oil pan included.Tolera. |
| Item | Jet Lathe |
| Length of Gap (In.) | 8 </td |
| Longitudinal Feed Rates | 38 |
| Max Tool Size (In.) | 5/8 x 5/8 </td |
| Motor (HP) | 2 HP, 230V, 1Ph </td |
| Motor HP | 2 |
| Number of Inch Threads | 38 </td |
| Number of Longitudinal . | 38 </td |
| Number of Metric Threads | 23 </td |
| Number of Spindle Speeds | 8 </td, 12 |
| Number of Threads (In.) | 40 |
| Overall Dimensions (L x. | 71 x 32 x 45 </td |
| Overall Height | 28.5" |
| Overall Length | 79" |
| Overall Width | 30" |
| Phase | 1 |
| Prewired (V.) | 230 </td |
| Range of Cross Feeds (I. | 0.0006-0.013 </td |
| Range of Inch Threads (. | 3-1/2 - 80 </td |
| Range of Longitudinal F. | 0.0018-0.0374 </td |
| Range of Metric Threads | 0.45-10 </td |
| Range of Spindle Speeds. | 70 - 2,000 </td |
| Size | 13 x 40 </td |
| Spindle Bore (In.) | 1-3/8, 1-3/8 </td |
| Spindle Mount | D1-4 </td |
| Spindle Speed (RPM) | 60 to 1240 |
| Spindle Taper | MT-5 |
| Spindle Taper with Slee. | MT-5 (MT-3) </td |
| Steady Rest Capacity (I. | 2-5/8 </td |
| Style (Type) | Bench </td |
| Swing In Gap (In.) | 18-3/4 |
| Swing Over Bed (In.) | 13, 13 </td |
| Swing Over Cross Slide . | 7-25/32 </td, 7-25/32 |
| Swing Through Gap (In.) | 18-3/4 </td |
| Tailstock Spindle Trave. | 3-3/4 </td |
| Tailstock Taper | MT-3 |
| Tailstock Travel (In.) | 3-3/4 |
| Taper in Tailstock Spin. | MT-3 </td |
| Thread Range (In.) | 4 to 112 |
| Voltage | 230 |
| Weight (Lbs.) | 1,175 </td |
| Width of Bed (In.) | 7-3/8 </td |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | AceTool | JET-321110 | 6999.0 | 1 | In Stock | | Jet | 1175.0 | 6999.0 @ 1 |
 | toolsplus.com | JET321110 | 7799.0 | 1 | In Stock | | JET | | 7799.0 @ 1 |
 | Zoro | G9879667 | 9326.55 | 1 | In Stock | 15 | Jet | | 9326.55 @ 1 |
