Jet 321112

B006RBJK48

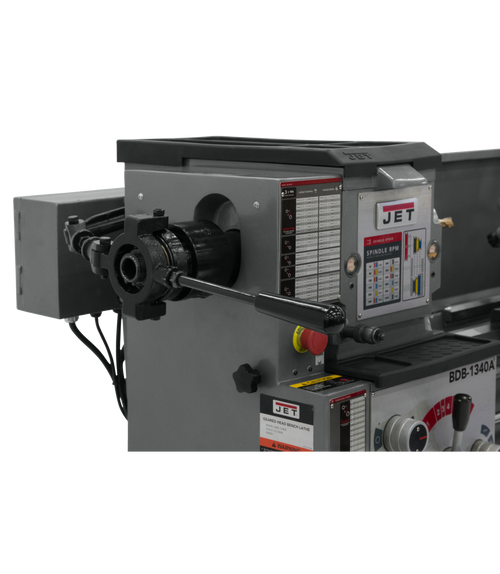

JET Belt Drive Bench Lathe with Taper Attachment and Collet Closer - 13in. x 40in. Model Number BDB-1340A/321112

JET Belt Drive Bench Lathe with Taper Attachment and Collet Closer - 13in. x 40in. Model Number BDB-1340A/321112zoom

Attributes

Key Value
Accessory 1Taper Attachment </td
Accessory 2Collet Closer </td
Brand<a href="category_jet">.
Carriage Travel (in.)35
Carriage Travel (In.)35 </td
Compound Slide Travel (.2-11/16 </td
ConditionNew
Cross Slide Travel (In.)6-5/16 </td
Dimensions L x W x H (i.71 x 32 x 45
Distance Between Center.40
Distance Between Center.40 </td
DriveBelt </td
Follow Rest Capacity (I.2-3/4 </td
Horsepower2 HP
HP2
Item#70584
Length of Gap (In.)8 </td
ManufacturerJet
Manufacturer's Warranty24 months parts / 24 mo.
Max Tool Size (In.)5/8 x 5/8 </td
Motor (HP)2 HP, 230V, 1Ph </td
Motor Phase3 Ph
Number of Inch Threads38 </td
Number of Longitudinal .38 </td
Number of Metric Threads23 </td
Number of Spindle Speeds12 </td
Overall Dimensions (L x.71 x 32 x 45 </td
Package Quantity1
Prewired (V.)230 </td
Product Weight (lbs.)1,175
Range of Cross Feeds (I.0.0006-0.013 </td
Range of Inch Threads (.3-1/2 - 80 </td
Range of Longitudinal F.0.0018-0.0374 </td
Range of Metric Threads0.45-10 </td
Range of Spindle Speeds.60 - 1,240 </td
Ship Weight1200.0 lbs
Size13 x 40 </td
SKU321112
Speed (RPM)60?1,240
Spindle Bore (In.)1-3/8 </td
Spindle Bore (in.)1 3/8
Spindle MountD1-4 </td, D1-4
Spindle Taper with Slee.MT-5 (MT-3) </td
Stand IncludedNo
Stationary typeBench
Steady Rest Capacity (I.2-5/8 </td
Style (Type)Bench </td
Swing Over Bed (in.)13
Swing Over Bed (In.)13 </td
Swing Over Cross Slide .7-25/32 </td
Swing Through Gap (In.)18-3/4 </td
Tailstock Spindle Trave.3-3/4 </td
Taper in Tailstock Spin.MT-3 </td
Thread Cutting (in.)3 1/2?80
Thread Cutting (mm)0.45?10
UPC66275620391
Volts230
Warranty2 Year
Weight (Lbs.)1,175 </td
Width of Bed (In.)7-3/8 </td

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Northern Tool705849359.01In StockJet1200.09359.0 @ 1
internationaltool.comJET-32111211459.01In StockJet11459.0 @ 1
elitemetaltools.com1034812849.01In StockJET12849.0 @ 1
thumbzoombeavertools.comJT32111212849.01In StockJet12849.0 @ 1
thumbzoomGlobal IndustrialWBB050338212849.01In StockJET12849.0 @ 1
thumbzoomJB ToolsJB-DS-WLT-JT9-32111212849.01In StockJet12849.0 @ 1
thumbzoomtoolfetch.com32111212849.01In StockJET12849.0 @ 1
thumbzoomAceToolJET-32111212849.01In StockJet1175.012849.0 @ 1
thumbzoomburnstools.com32111212849.01In StockJet12849.0 @ 1
ToolUp.comJET 32111212849.01In StockJet12849.0 @ 1
thumbzoomtoolsplus.comJET32111212849.01In StockJET12849.0 @ 1
thumbzoomimsbolt.com32111212849.01In StockJET12849.0 @ 1
thumbzoomZoroG90803115815081.991In StockJet15081.99 @ 1
