Jet 321121

B000GADIG2

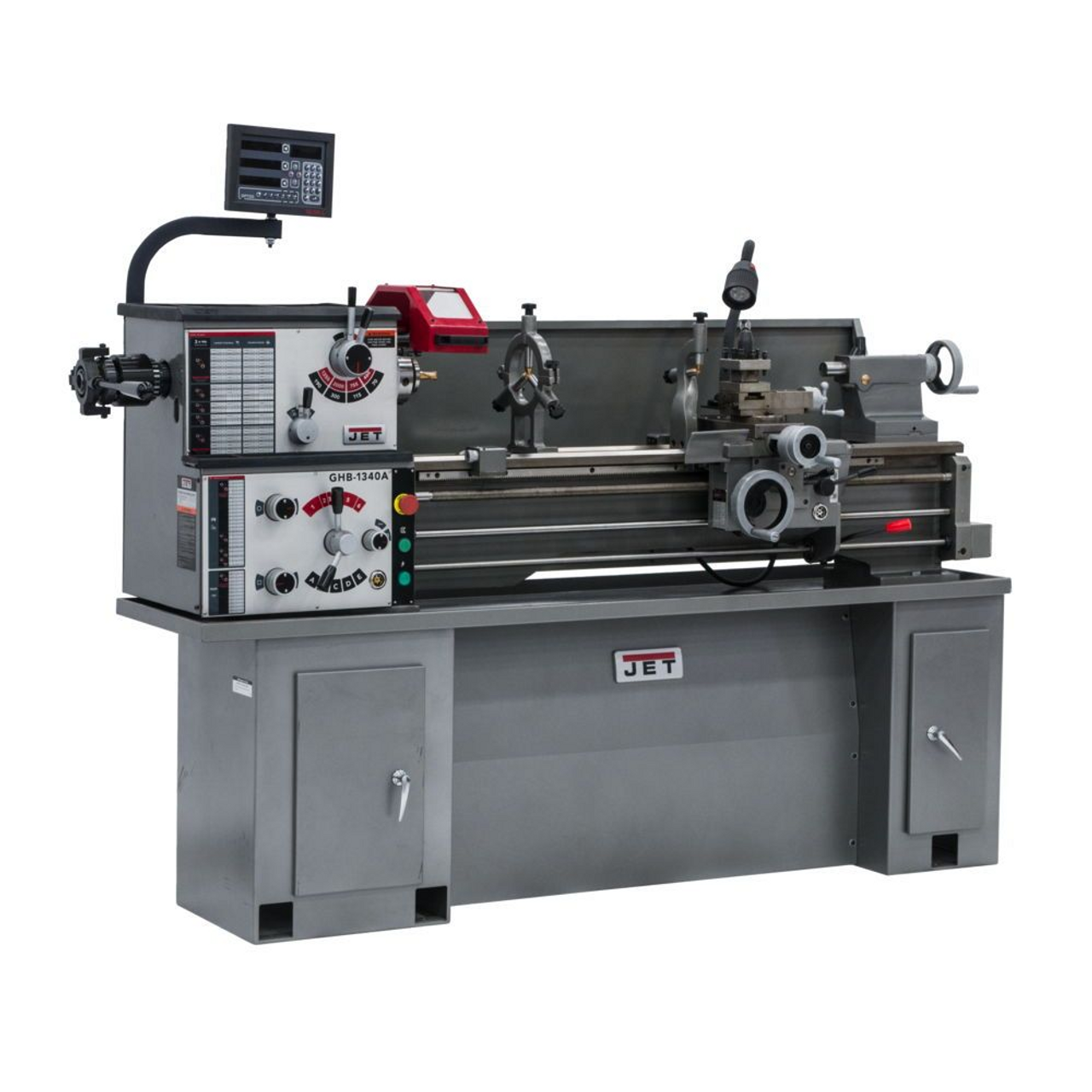

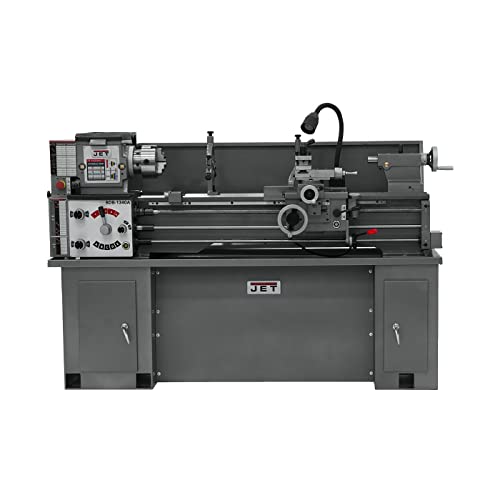

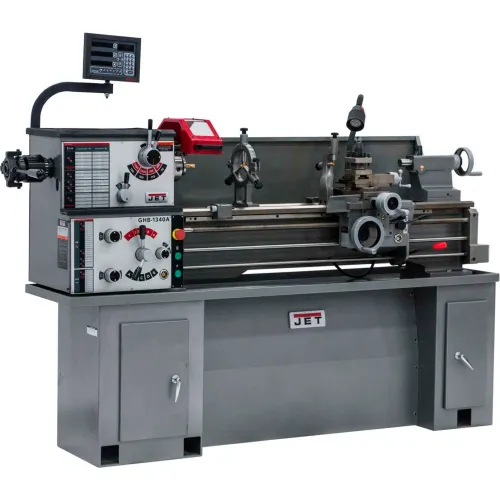

JET BDB-1340A, 13" x 40" Belt Drive Bench Lathe with Acu-Rite 200S DRO, 2HP, 1Ph 230V (321121)

JET BDB-1340A, 13" x 40" Belt Drive Bench Lathe with Acu-Rite 200S DRO, 2HP, 1Ph 230V (321121)zoom

Attributes

Key Value
Battery VoltageElectric - Corded
Bed Width7 3/8 in
BrandJet
Carriage Travel (In.)35</td
Compound Slide Travel (.2-11/16</td
ConditionNew, >1263.0
Country of Origin (subj.China
Cross Slide Travel (In.)6-5/16</td
Digital ReadoutACU-RITE 200S</td
Distance Between Centers40 in
Distance Between Center.40</td
DriveBelt</td
FeaturesCorner Radius Precision.
Follow Rest Capacity (I.2-3/4</td
Gap Length8 in
Horsepower2 HP
IncludesOil pan included.Tolera.
ItemLathe
Length of Gap (In.)8</td
Machine TypeBench Lathe
ManufacturerJet
Manufacturer's WarrantyNew
Max Tool Size (In.)5/8 x 5/8</td
Max. Cross Feed0.0130 IPR
Max. Metric Thread10.00mm
Max. Spindle Speed1240 RPM
Min. Cross Feed0.0006 IPR
Min. Metric Thread0.45mm
Min. Spindle Speed60 RPM
Min. Threads per Inch3-1/2
Model>
Motor (HP)2 HP, 230V, 1Ph</td
Motor Phase3 Ph
Number of Inch Threads38, 38</td
Number of Longitudinal .38</td
Number of Metric Threads23</td, 23
Number of Spindle Speeds12, 12</td
Overall Dimensions (L x.71 x 32 x 45</td
Overall Length7 in
Package TypeReturn To Manufacturer .
Phase1
Power SourceIndividual
Prewired (V.)230</td
Range of Cross Feeds (I.0.0006-0.013</td
Range of Inch Threads (.3-1/2 - 80</td
Range of Longitudinal F.0.0018-0.0374</td
Range of Metric Threads0.45-10</td
Range of Spindle Speeds.60 - 1,240</td
Return Policy2 Years
Size13 x 40</td
SKUjet-321121, 321121
Spindle Bore1 3/8 in
Spindle Bore (In.)1-3/8</td
Spindle MountD1-4</td
Spindle Taper with Slee.MT-5 (MT-3)</td
Stationary typeBench - Geared Head
Steady Rest Capacity (I.2-5/8</td
Style (Type)Bench</td
Swing Over Bed13 in
Swing Over Bed (In.)13</td
Swing Over Cross Slide7 25/32 in
Swing Over Cross Slide .7-25/32</td
Swing Through Gap (In.)18-3/4</td
Tailstock Spindle Trave.3-3/4</td
Tailstock Taper3 3/4 in
Taper in Tailstock Spin.MT-3</td
UPC / ISBN662755502743
Voltage230V
Warranty2 Year
Weight (Lbs.)1,175</td
Width of Bed (In.)7-3/8</td

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
internationaltool.comJET-3211219299.01In StockJet9299.0 @ 1
thumbzoomZoroG19397499979.01In Stock10Jet1263.09979.0 @ 1
thumbzoomGlobal IndustrialWBB023065411899.01In Stock24JET11899.0 @ 1
thumbzoomToolbarnJET-32112111899.01In StockJET11899.0 @ 1
thumbzoomJB ToolsJB-DS-WLT-32112111899.01In StockJet11899.0 @ 1
elitemetaltools.com1035011899.01In StockJET11899.0 @ 1
thumbzoomtoolfetch.com32112111899.01In StockJET11899.0 @ 1
thumbzoomAceToolJET-32112111899.01In StockJet1175.011899.0 @ 1
thumbzoomburnstools.com32112111899.01In StockJet11899.0 @ 1
ToolUp.comJET 32112111899.01In StockJet11899.0 @ 1
thumbzoomtoolsplus.comJET32112111899.01In StockJET11899.0 @ 1
imsbolt.com32112111899.01In StockJET11899.0 @ 1
