- mpn321124
- brandname: Jet
- manufacturername: Jet

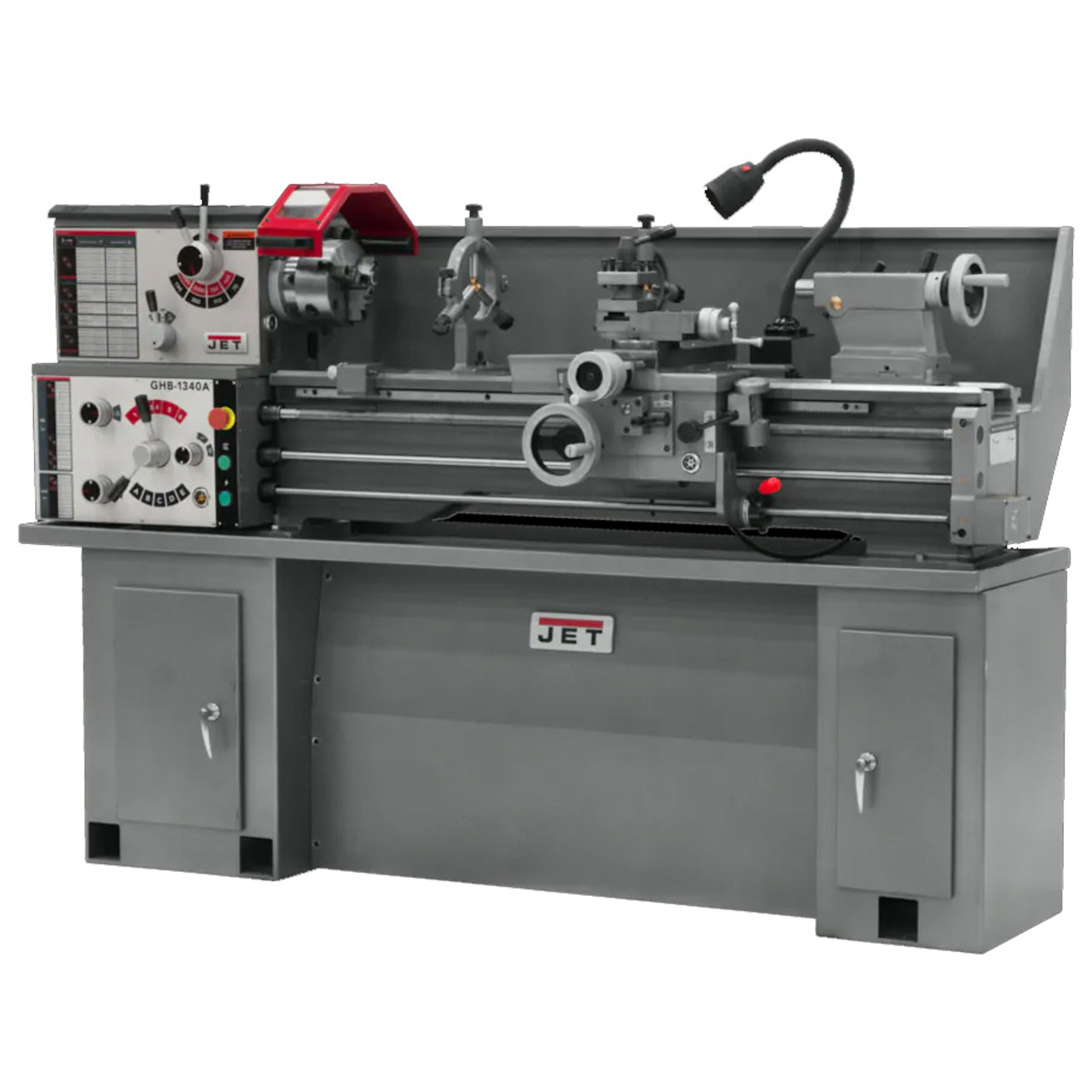

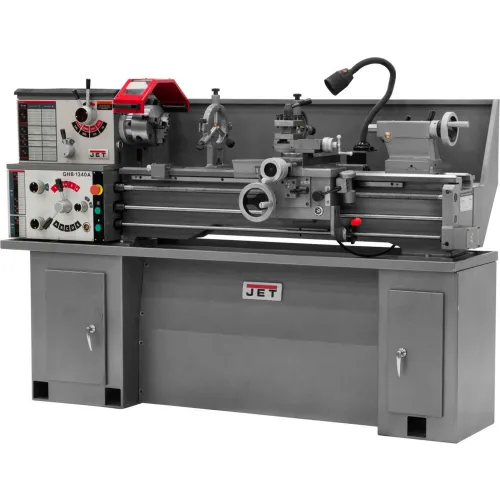

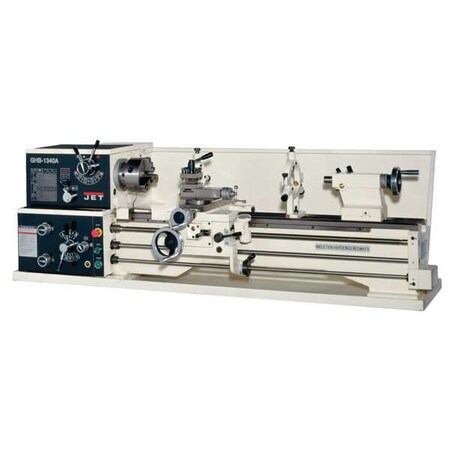

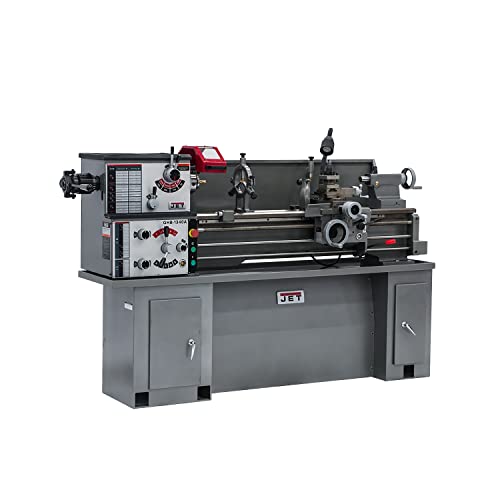

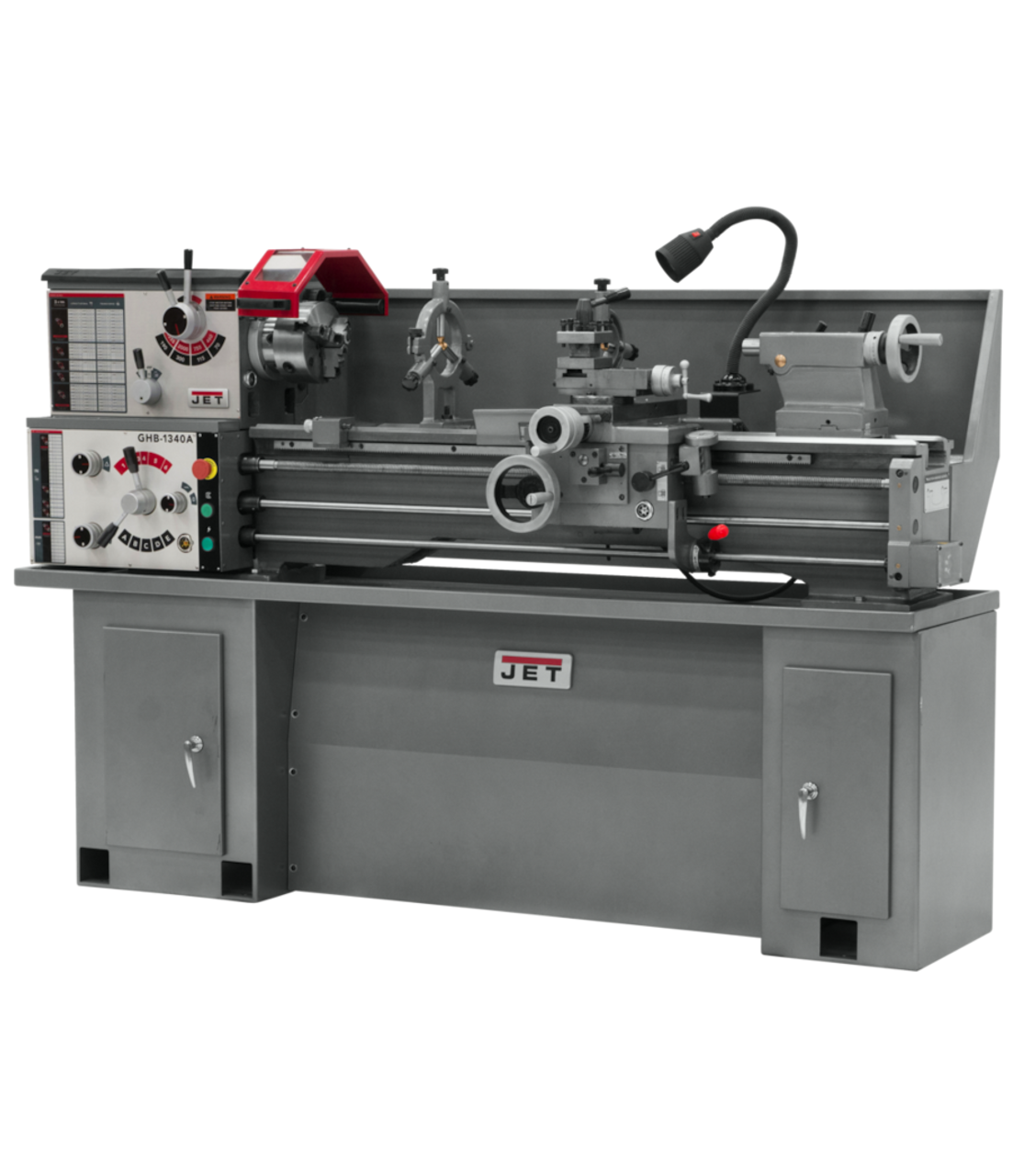

JET GHB-1340A, 13" x 40" Geared Head Bench Lathe with Collet Closer, 2HP, 1Ph 230V (321124)
- Brand: Jet
- PartNumber: 321124
- Model: 321124
- Color: Gray
- PackageQuantity: 1
- Binding: Tools & Home Improvement
- Manufacturer: JET
- Label: JET
Attributes
| Key | Value |
|---|
| Accessory 2 | Collet Closer </td |
| Battery Voltage | Electric - Corded |
| Bed Width | 9 1/2 in |
| Bed Width (In.) | 7-3/8 |
| Brand | Jet |
| Carriage Travel (In.) | 35 </td, 35 |
| Compound Slide Travel (. | 2-11/16 </td |
| Compound Travel (In.) | 2-11/16 |
| Condition | New, >1215.0 |
| Cross Feed Rates | 40 |
| Cross Slide Travel (In.) | 6-5/16 </td |
| Distance Between Center. | 43 </td, 40 |
| Drive | Geared Head </td |
| Features | One of the Most Popular. |
| Follow Rest Capacity (I. | 2-3/8 </td |
| Gap Length | 8 in |
| Gap Length (In.) | 8 |
| Horsepower | 2 HP |
| Includes | 12 in Faceplate, 6 in 3. |
| Item | Lathe |
| Length of Gap (In.) | 8 </td |
| Longitudinal Feed Rates | 40 |
| Manufacturer | Jet |
| Manufacturer's Warranty | New |
| Max Tool Size (In.) | 5/8 x 5/8 </td |
| Model | > |
| Motor (HP) | 2 HP, 230V, 1Ph </td |
| Motor HP | 2 |
| Motor Phase | 3 Ph |
| Number of Inch Threads | 40 </td |
| Number of Longitudinal . | 40 </td |
| Number of Metric Threads | 27 </td |
| Number of Spindle Speeds | 8, 8 </td |
| Number of Threads (In.) | 40 |
| Number of Threads (mm) | 27 |
| Overall Dimensions (L x. | 79 x 28-1/2 x 30 </td |
| Overall Height | 71 in |
| Overall Length | 71 in |
| Overall Width | 32 in |
| Package Type | Return To Manufacturer . |
| Phase | Single |
| Power Source | Individual |
| Prewired (V.) | 230 </td |
| Range of Cross Feeds (I. | .0006 - .0130 </td |
| Range of Inch Threads (. | 3-1/2 - 80 </td |
| Range of Longitudinal F. | .0018 - .0374 </td |
| Range of Metric Threads | .45 - 10 </td |
| Range of Spindle Speeds. | 70 - 2,000 </td |
| Return Policy | 2 Years |
| Size | 13 x 40 </td |
| SKU | 321124, jet-321124 |
| Spindle Bore (In.) | 1-3/8 </td |
| Spindle Dia. | 1 1/4 in |
| Spindle Mount | D1-4 </td |
| Spindle Taper with Slee. | MT-5 (MT-3) </td |
| Stationary type | Bench - Geared Head |
| Steady Rest Capacity (I. | 2-3/4 </td |
| Style (Type) | Bench - Geared Head . |
| Swing Over Bed (In.) | 13, 13 </td |
| Swing Over Cross Slide . | 7-25/32 </td, 7-25/32 |
| Swing Through Gap (In.) | 18-3/4 </td |
| Tailstock Spindle Trave. | 3-3/4 </td |
| Tailstock Taper | MT3 |
| Taper in Tailstock Spin. | MT-3 </td |
| UPC / ISBN | 662755880261 |
| Warranty | 2 Year |
| Weight (Lbs.) | 1,154 </td |
| Width of Bed (In.) | 7-3/8 </td |
