Leeson 121181.00

B00EP39IRE

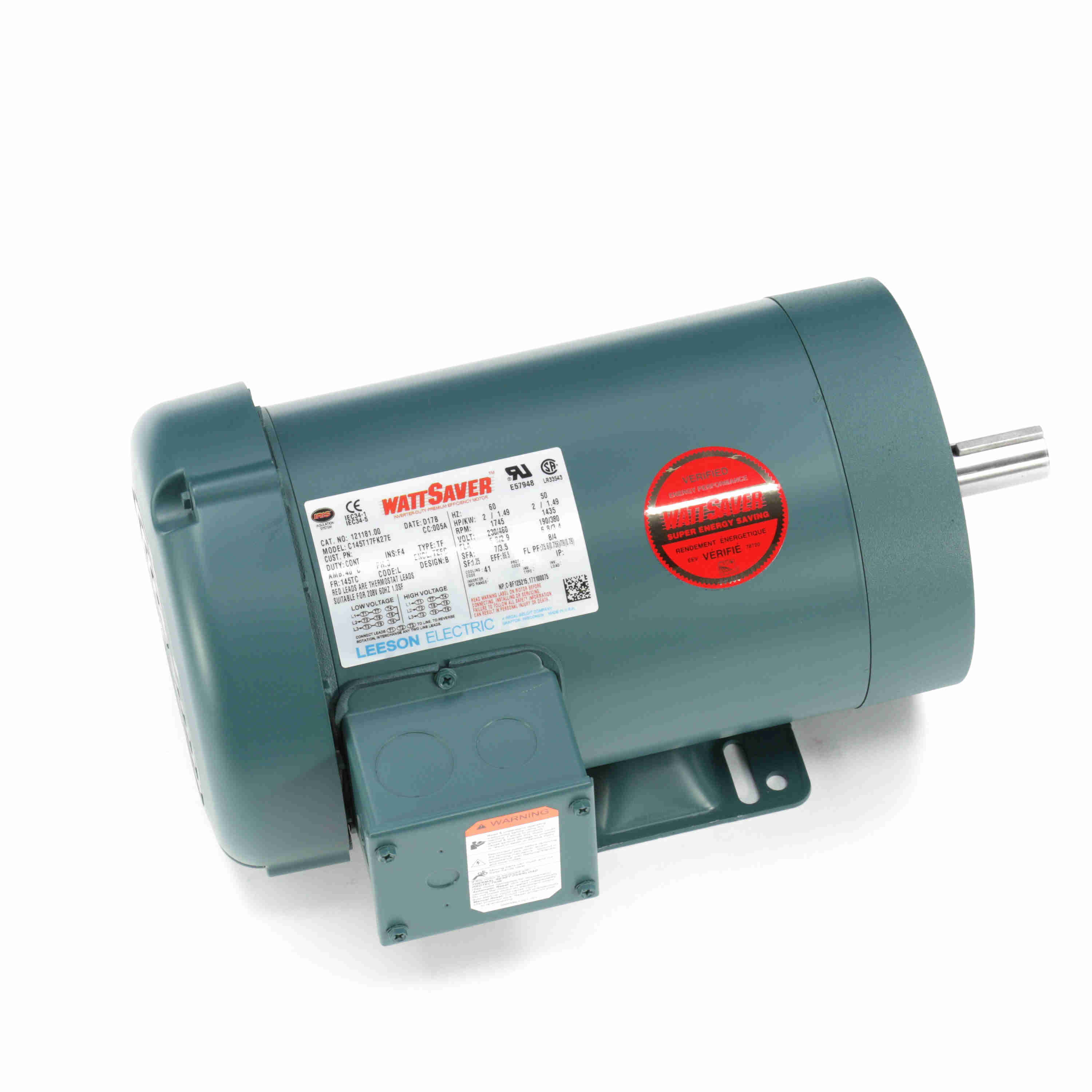

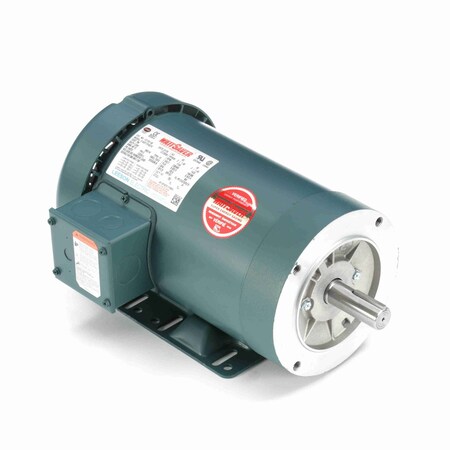

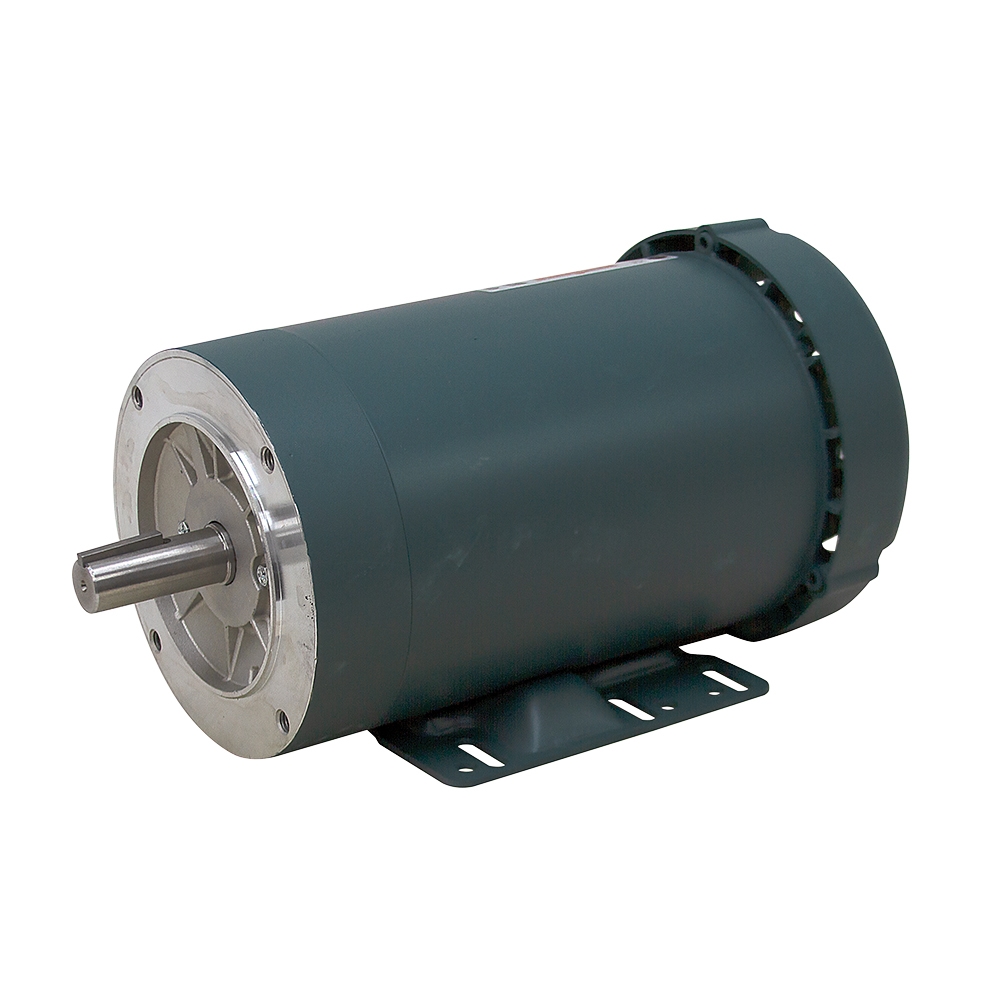

Leeson 121181.00 General Purpose C Face Motor, 3 Phase, 145TC Frame, Rigid Mounting, 2HP, 1800 RPM, 208-230/460V Voltage, 60/50Hz Fequency

Leeson 121181.00 General Purpose C Face Motor, 3 Phase, 145TC Frame, Rigid Mounting, 2HP, 1800 RPM, 208-230/460V Voltage, 60/50Hz Fequencyzoom

Attributes

Key Value
Amperage Rating5.8 A
Amps5.8/2.9
Bearing TypeBall
BearingsBall
CategoryElectric Motor
ConstructionRolled Steel
Description:..2HP..1745RPM.145.TEFC.
Dimensions14.26 in L x 8.64 in W .
Drive End Bearing Size6205
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency86.5%, 86.5
EnclosureTEFC
Enclosure MaterialRolled Steel
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight43.00
FL Amps6-5.8/2.9&6.8/3.4
FL Efficiency86.5
Frame145TC
Frame MaterialRolled Steel
Frame RemarksFOOTED
Frequency60
Frequency Rating50/60 Hz
Gross Weight0 lbs
Hertz50, 60
Horsepower2 hp
HP2
Hz60, 60/50
Insulation ClassClass F, F
Item ConditionFACTORY NEW
KW1.5
ManufacturerLeeson Electric, LEESON.
MaterialRolled Steel
Maximum Ambient Tempera.40? C
MFG Part #:121181.00
Motor Shell Length8.00"
MountingFoot Mount, Rigid Base
mountingC-face w/ rigid base
Mounting TypeFoot Rigid
Number of Poles4
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length13.92"
Part Number121181.00
Phase3, 3 ph
Product TypeGeneral Purpose, Three .
RotationReversible
RPM1745, 1700 - 1800, 1800
Service Factor1.25
Shaft Diameter0.875, 0.875"
Shaft Length2.25", 2.25
Shaft Size7/8 in Dia
Ship Weight49 lbs.
Speed1800 rpm
Speed (RPM)1745
Supplier:LEESON ELECTRIC CORPORA.
Thermal ProtectionThermostat
TypeContinuous Duty
UPC:691720016787
Voltage208V, 230V, 460V, 230/4.
Volts230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com121181497.01In StockLEESON49.0497.0 @ 1
thumbzoomsurpluscenter.com10-3391499.95142LEESON ELECTRIC499.95 @ 1
AmazonTPB0773V3XWQ661.561In Stock3Leeson Electric661.56 @ 1
industrialmotors.com121181.00712.216LEESON ELECTRIC712.2 @ 1
thumbzoomemotorpro.com121181.00720.31In StockLeeson49.0720.3 @ 1
thumbzoomMRO Supply222706723.961In StockLeeson723.96 @ 1
thumbzoomDealers Electric121181.00904.051In StockLeeson49.0904.05 @ 1
thumbzoomZoroG2486693939.9911Leeson939.99 @ 1
thumbzoomPurvis121181LEE960.31In StockLEESON960.3 @ 1
thumbzoommotorsandcontrol.comLE-121181.00993.031363Leeson Electric43.0993.03 @ 1
thumbzoomGalco121181.00-LEES1000.281In StockLeeson1000.28 @ 1
us.rs-online.com729255511004.881In StockLeeson1004.88 @ 1
kirbyrisk.com20820501072.661In StockLeeson1072.66 @ 1
thumbzoomcbtcompany.com121181.001100.11In StockLeeson Electric1100.1 @ 1
thumbzoomWalker Industrial121181-001125.431In Stock17Leeson1125.43 @ 1
kscdirect.comLEE 121181.001219.41In StockLEESON ELECTRIC CORPORATION1219.4 @ 1
thumbzoompumpproducts.com121181.001284.911In StockLeeson1284.91 @ 1
thumbzoomRaptor SuppliesAJ2RHK1416.129391In StockLEESON1416.12939 @ 1
