Macromatic TR-60622

B00DDEHUGC

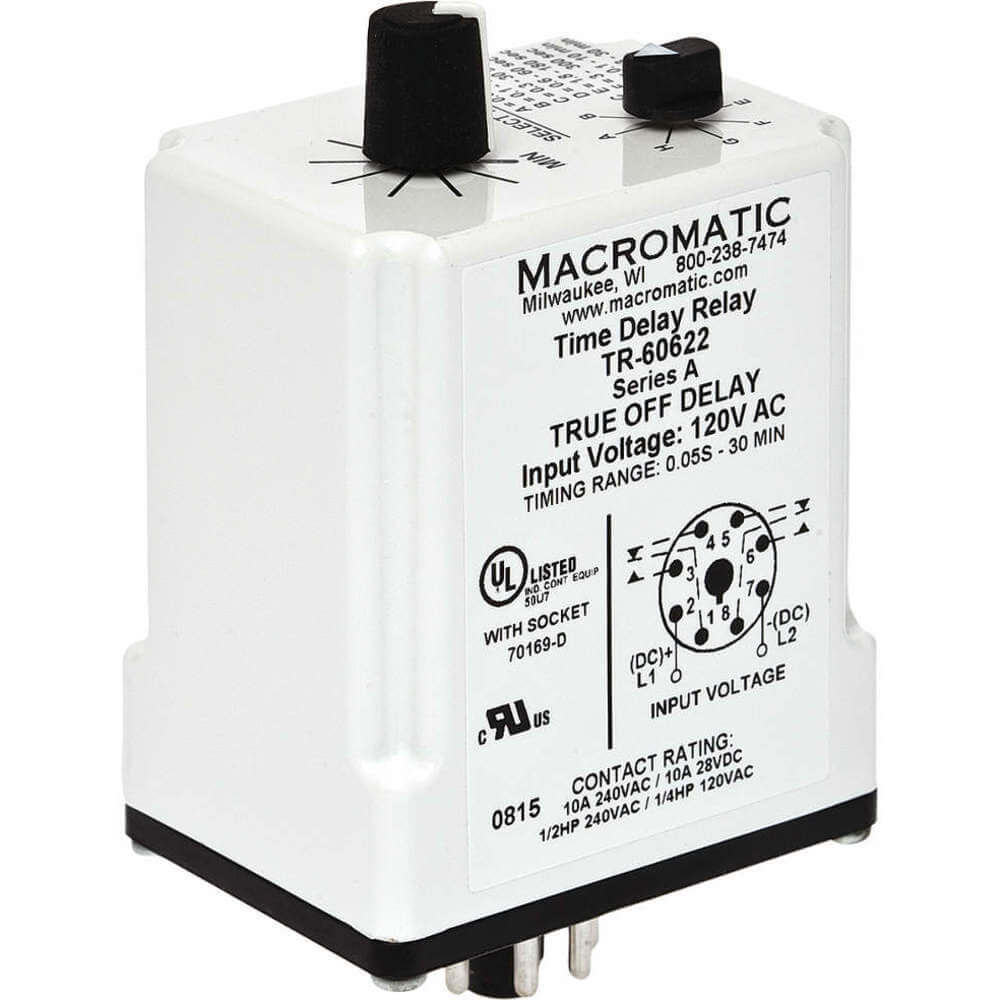

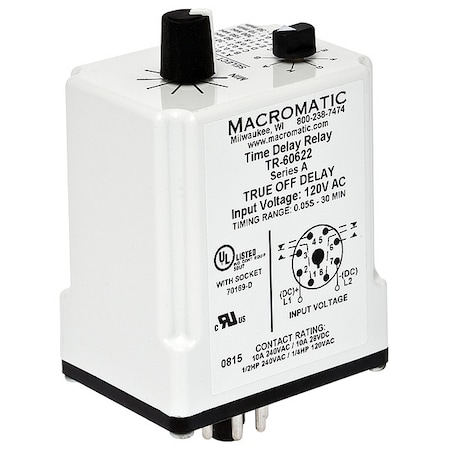

Macromatic TR-60622 Timer; Off Delay; 0.005Sec-30Min; E-Mech; DPDT; 10 A; 120VAC/DC; 8Pin Octal; Time Ranger

Macromatic TR-60622 Timer; Off Delay; 0.005Sec-30Min; E-Mech; DPDT; 10 A; 120VAC/DC; 8Pin Octal; Time Rangerzoom

Attributes

Key Value
AC Contact Rating - Rel.10 A @ 240 V, 10A @ 240V
Adjustment Method - Tim.Potentiometer
Adjustment OperatorKnob
ApprovalsCE, cULus, cURus
Base Type - Plug In Rel.Octal
Body Depth2.9 in
Body Depth - Relay1.7 in, 1.70"
Body Height1.7 in
Body Height - Relay2.9 in, 2.90"
Body Width2.3 in
Body Width - Relay2.40", 2.4 in
BrandMacromatic
Coil Rating2VA
Coil Voltage120 VAC
Coil Volts120V AC/DC, 120VAC/DC
ColorWhite
Contact FormDPDT
Contact Form - RelayDPDT
Contact MaterialSilver Alloy
Contact Rating (A)10 A
ContactsDPDT
Control Voltage120
Current Rating10 A
Current Stock197
DC Contact Rating - Rel.8A @ 28V, 8 A @ 28 V
Electrical ConnectionSocket
Family SeriesMacromatic Relays, TR-6.
Flat Pin WidthNot Applicable
FunctionTrue Off-Delay
Function - Timing RelayPower Off Delay (True O.
Gross Weight0.27 lbs
Hz - Electrical50 Hz, 60 Hz
Input Voltage120V AC/DC
International ShippingNo
Item - RelaySingle Function Timing .
Item NumberTR-60622
Lead TimeExpected to ship in 1-2.
ManufacturerMacromatic
Manufacturer Part NumberTR-60622
Max Time30 min
Max. Time Setting30 Min.
Max. Time Setting - Tim.30 min
Min. Time Setting - Tim.0.05 sec
Mode of OperationTrue Off Delay
Mounting - RelayPlug In
Mounting TypeSocketable, Plug-In
MpnTR-60622
Multi-FunctionNo
Net Weight0.225 lbs
Nominal Coil Voltage12 VDC, 24 VDC, 48 VDC,.
Number of Pins8
Number of Pins - Relay8
Overall Depth3.5 in
Overall Height - Relay3.10", 3.1 in
Power Consumption - Rel.2.5VA, 2.0W, 2 W, 2.5 VA
Primary TypeTime Delay Relays
Product SeriesTR-6
Relay TypeElectromechanical
SeriesTR-6 Series
SKUZO-G0270611
Socket5X852, 1EGP3, 1EGP5
StandardscURus
Status IndicatorNone
SubCategoryElectrical
Termination8 Pin, 8-Pin Octal
Time Range (Minutes)0-1, 0-2, 0-3, 0-5, 0-1.
Time Range (Seconds)0-1, 0-2, 0-3, 0-5, 0-1.
Timing Range0, 0.1 Sec. to 120 Min.
UPC801262055476
Voltage (AC)120 VAC
Voltage (DC)12-125 VDC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsustainablesupply.comC120693866.221In StockMacromatic0.2766.22 @ 1
thumbzoomZoroG027061179.391199Macromatic0.2779.39 @ 1
Grainger5WMJ979.511280MACROMATIC79.5 @ 1
AmazonTPB005T9CA8C88.91In Stock2Macromatic88.9 @ 1
grainger.caWWG5WMJ991.37897541In StockMACROMATIC0.2791.3789754 @ 1
thumbzoomsimsupply.comZO-G0270611101.281197Macromatic101.28 @ 1
thumbzoomRaptor SuppliesAE7BKK107.65667251In StockMACROMATIC107.6566725 @ 1
thumbzoomblackhawksupply.comTR-60622112.161In StockMacromatic112.16 @ 1
thumbzoomWalker IndustrialTR-60622115.041In Stock17Macromatic115.04 @ 1
standardelectricsupply.com2206335119.831In StockMacromatic Controls119.83 @ 1
thumbzoomGalcoTR-60622-MCRM121.5213Macromatic0.27121.52 @ 1
us.rs-online.com70175157129.69120Macromatic129.69 @ 1
thumbzoomNewark01N5003149.7911MACROMATIC CONTROLS149.79 @ 1
