Molex / Waldom 15-24-9067

B07QMYZ2TD

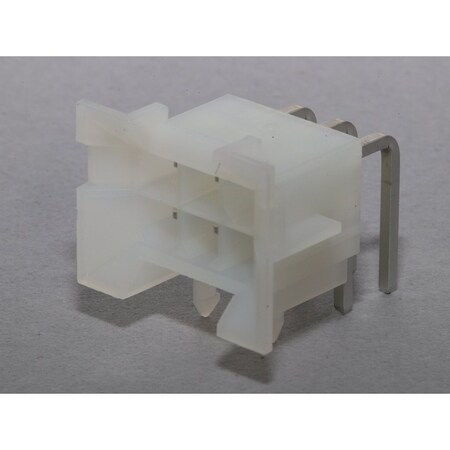

15-24-9067, Conn Power HDR 6 POS 4.2mm Solder RA Thru-Hole 6 Terminal 1 Port Mini-Fit BMI Tray (25 Items)

15-24-9067, Conn Power HDR 6 POS 4.2mm Solder RA Thru-Hole 6 Terminal 1 Port Mini-Fit BMI Tray (25 Items)zoom

Attributes

Key Value
Alternate Mfr Part Numb.42404-06A5
ApplicationsGeneral Purpose, Indust.
Base Product Number001524
CategoryConnectors, Interconnec.
ColorNatural
Connector TypeHeader
Contact FinishGold Plated
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.30.0?in (0.76?m)
Contact Finish Thicknes.100.0?in (2.54?m)
Contact Length - Mating-
Contact Length - Post0.130" (3.30mm)
Contact MaterialBrass
Contact Plating Thickne.0.762 ?m
Contact ShapeSquare
Contact TypeMale Pin
Current Rating13 A
Current Rating (Amps)-
DescriptionCONN HEADER R/A 6POS 4..
Detailed DescriptionConnector Header Throug.
Digi-Key Part Number0015249067-ND
Family NameMini-Fit BMI
Fastening TypeLatch Holder
FeaturesBlind Mating, Board Lock
Flammability RatingUL 94V-2
Hole Center to Center4.2 mm
Ingress Protection-
Insulation ColorNatural
Insulation Height0.591" (15.00mm)
Insulation MaterialPolyamide (PA66), Nylon.
ManufacturerMolex
Manufacturer Product Nu.0015249067
Manufacturer Standard L.25 Weeks
Mated Stacking Heights-
MaterialNylon
Material Flammability R.UL94 V-2
Max. Temp.240?C
Max. Voltage600V
MfrMolex
Mounting TypeThrough Hole, Right Ang.
Number of Circuits6
Number of Contacts6
Number of Positions6
Number of Positions Loa.All
Number of Rows2
Operating Temperature-
OrientationRight Angle
Overall Contact Length-
PackageTray
Package Quantity1
Pitch4.20 mm (0.165")
Pitch - Mating0.165" (4.20mm)
Plating MaterialGold
Primary TypeSoft Shell
Product StatusActive
Row Spacing - Mating0.165" (4.20mm)
SeriesMini-Fit BMI 42404, 424.
ShroudingShrouded - 4 Wall
Special FeaturesLow-Halogen
StandardsCSA Certified; UL E29179
StyleBoard to Board or Cable
Terminal FinishTin Plated
Terminal TypeThrough Hole
TerminationSolder
TypeRight Angle Header
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomDigi-Key31222651.5931127205Molex1.59311 @ 2720
thumbzoomjensentools.com101521751.69137Molex1.69 @ 5
thumbzoomNEP Electronics15-24-90671.808827205Molex1.8088 @ 2720
Newark91M06022.26137MOLEX2.26 @ 5
us.rs-online.com707697992.4115Molex Incorporated2.41 @ 5
thumbzoomRadwell15-24-90675.015MOLEX1.05.0 @ 5
AmazonTPB07QMYZ2TD68.93151Molex / Waldom68.93 @ 5
thumbzoomZoroG275988871.6405Molex71.6 @ 40
