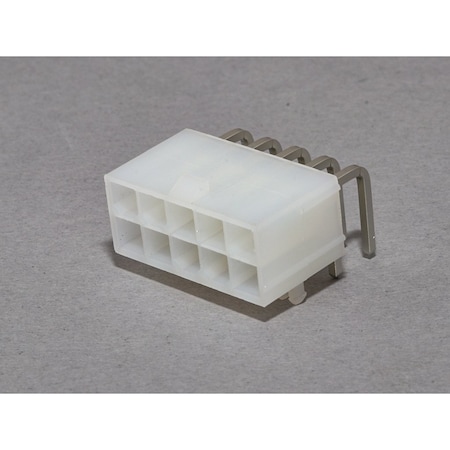

Molex / Waldom 39-30-1100

mpn039301100
brandname: MOLEX
manufacturername: MOLEX

Molex / Waldom 39-30-1100 Connector Power

Brand: Molex / Waldom
PartNumber: 39-30-1100
PackageQuantity: 1
Binding: Electronics
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Agency Approvals	CSA ; UL ; TUV
Alternate Mfr Part Numb.	5569-10A2
Angle	Right Angle
ASIN	B00OVEVL2M
Category	Connectors, Interconnec.
Color	Natural
Connector Type	Male Pin
Contact Finish	Matte Tin Plated
Contact Finish - Mating	100.0?in (2.54?m)
Contact Finish - Post	Brass
Contact Finish Thicknes.	Tin
Contact Finish Thicknes.	General Purpose, Indust.
Contact Length - Mating	0.142" (3.60mm)
Contact Length - Post	-
Contact Material	Brass, Polyamide (PA66).
Contact Plating	Tin
Contact Plating Thickne.	2.54 ?m
Contact Shape	Tin
Contact Type	0.165" (4.20mm)
Current Rating	13 A
Current Rating (Amps)	-
Family Name	Mini-Fit Jr.
Fastening Type	-
Features	-
Flammability Rating	UL 94V-2
Hole Center to Center	4.2 mm
Housing Material	Nylon
Ingress Protection	UL94 V-2
Insulation Color	-
Insulation Height	Square
Insulation Material	Board Lock
Item model number	39-30-1100
Manufacturer	Molex
Mated Stacking Heights	100.0?in (2.54?m)
Material	Nylon
Material Flammability R.	Natural
Max. Temp.	240?C
Max. Voltage	600V AC/DC
Mfr	Molex
Mounting Type	Solder
Number of Circuits	10
Number of Contacts	10
Number of Positions	2
Number of Positions Loa.	Board to Cable/Wire
Number of Rows	2, 0.165" (4.20mm)
Operating Temperature	-40 to +105 ?C, -
Orientation	Right Angle
Overall Contact Length	0.378" (9.60mm)
Overall Length	0.87 "
Package	Active
Package Quantity	1
Part Status	Header
Pin Length	0.14 "
Pin Spacing	0.165 in
Pitch	4.20 mm (0.165")
Pitch - Mating	10
Plating Material	Matte Tin
Primary Type	Soft Shell
Product Header	Wire-to-Board PCB Header
Row Spacing - Mating	All
Series	Bulk, 5569 Series
Shrouding	Through Hole, Right Ang.
Special Features	Low-Halogen
Standards	CSA Certified; UL E29179
Style	Shrouded - 4 Wall
Terminal Finish	Matte Tin Plated
Terminal Type	Through Hole
Termination	Through Hole, Locking R.
Type	Right Angle Header
Voltage Rating	-, 600 V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Verical	39301100	0.4375	72	228	Molex	0.4375 @ 72
Sager Electronics	0039301100	0.495	1	2583	Molex	0.495 @ 10
Power and Signal Group	0039301100	0.5652	1200	10	Molex	0.5652 @ 1200
Waldom	MOLEX 39-30-1100	0.59	90	2909	MOLEX	0.59 @ 90
NEP Electronics	39-30-1100	0.75	100	1588	Molex	0.75 @ 100
Onlinecomponents.com	39-30-1100	0.83	40	16	Molex	0.83 @ 40
Newark	26AC7293	0.867	2400	10	MOLEX	0.867 @ 2400
Digi-Key	WM1355-ND	1.167	1	10	Molex	1.167 @ 10
us.rs-online.com	70190658	1.58	1	54	Molex Incorporated	1.58 @ 10
TME	MX-39-30-1100	1.77	1	394	MOLEX	1.77 @ 10
RS Delivers	510-9871P	1.992	1	515	Molex	1.992 @ 10
AmazonSC	B00OVEVL2M	2.66	1	10	MOLEX	2.66 @ 10
NRI Industrial	D656295	109.93	1	10	MOLEX	109.93 @ 10
Zoro	G2762974	144.0	150	10	Molex	144.0 @ 150
