SS12SBP4

mpnSS12SBP4
brandname: NKK Switches
manufacturername: NKK Switches

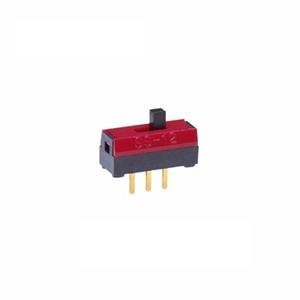

Slide Switches SPDT ON-ON METRIC (1 piece)

Slide Switches SPDT ON-ON METRIC (1 piece)

zoom

PartNumber: SS12SBP4
Size: 1 Piece
PackageQuantity: 1
Manufacturer: NKK Switches
Label: NKK Switches

Attributes

Key	Value
Actuator Length	2.00mm
Actuator Material	Polyamide, Polyamide (P.
Actuator Type	Top, Standard
Base Product Number	SS12SB
Brand	NKK Switches
Category	Switches
Circuit	SPDT
Contact Configuration	Single Pole Double Thro.
Contact Current Rating	100 mA
Contact Finish	Gold
Contact Material	Phosphor Bronze, Contac.
Contact Resistance	Contact Resistance
Contact Timing	Shorting (MBB)
Current Rating (Amps)	0.4VA (AC/DC)
Depth	6.5mm
Dimensions	10.2 x 4 x 6.5mm
Electrical Life	10,000 Cycles
Features	-
Length	10.2mm
Maximum Operating Tempe.	+60?C
Mechanical Life	10,000 Cycles
Mfr	NKK Switches
Minimum Operating Tempe.	-15?C
Mounting Type	PCB, Through Hole
Operating Force	-
Operating Temperature	-15?C ~ 60?C
Operating Temperature R.	-15 ? +60?C
Package	Tray
Product Status	Active
Series	SS
Stock	Stock
Switch Function	On-On
Switch Operation	Latching
Switch Travel	2.00mm
Terminal Type	Terminal Type
Termination Style	PC Pin
Voltage Rating	28V ac/dc
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V
Width	4mm

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	RS Delivers	125-1860	1.9452	5	5		NKK Switches		1.9452 @ 5
	Future Electronics	1313386	2.85144	100	5		NKK Switches		2.85144 @ 100
	Digi-Key	1054726	3.504	1	9382		NKK Switches		3.504 @ 5
	Newark	10X9273	4.49	1	5		NKK SWITCHES		4.49 @ 5
	AmazonTP	B010IJB8YY	5.99	1	5	2	NKK Switches		5.99 @ 5
