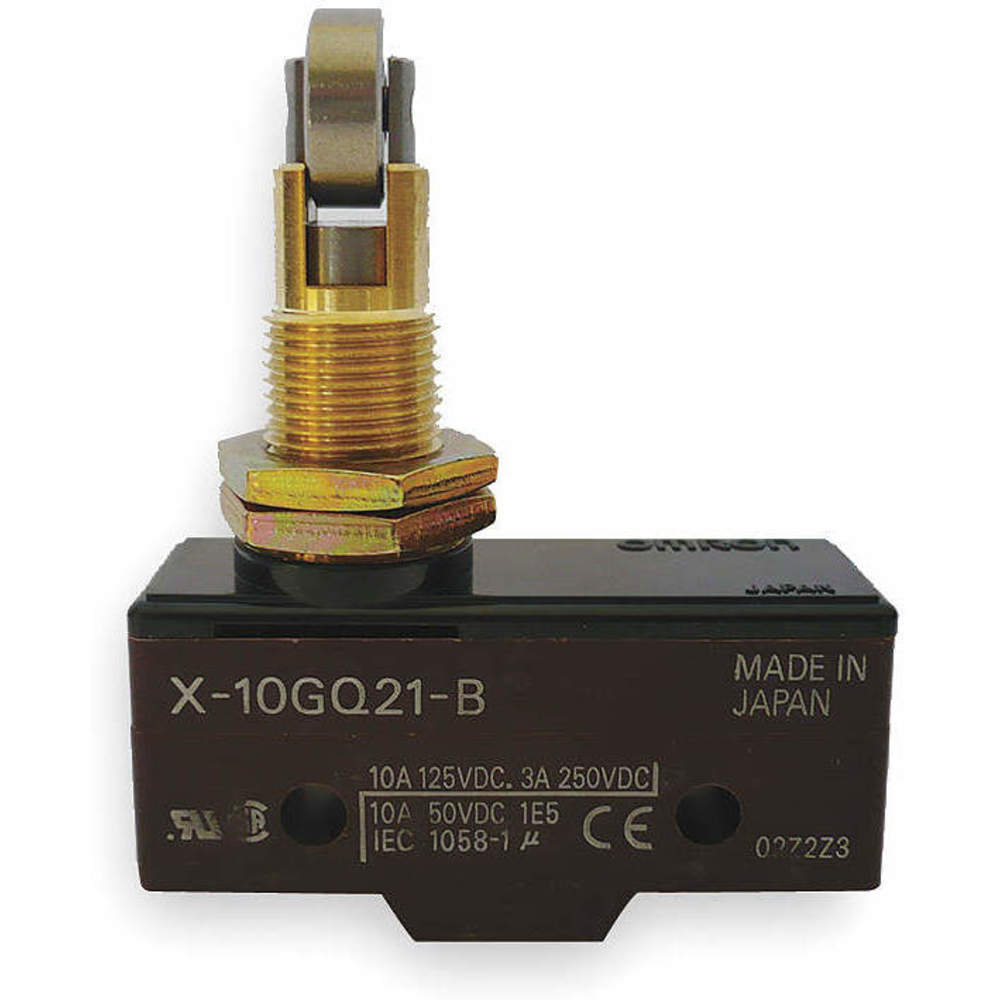

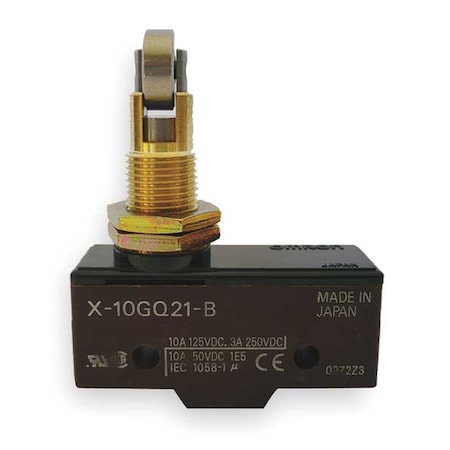

Omron X-10GQ21-B

mpnX-10GQ21-B
brandname: Omron Automation and Safety
manufacturername: Omron Automation and Safety

Omron X-10GQ21-B General Purpose Basic Switch, Built In Magnetic Blowout, Screw Terminal, Panel Mount Cross Roller Plunger, 0.9mm Contact Gap, 10A at 125VDC Rated Current

Omron X-10GQ21-B General Purpose Basic Switch, Built In Magnetic Blowout, Screw Terminal, Panel Mount Cross Roller Plunger, 0.9mm Contact Gap, 10A at 125VDC Rated Current

zoom

Brand: Omron
PartNumber: X-10GQ21-B
Model: X-10GQ21-B
PackageQuantity: 1
Binding: Misc.
Manufacturer: Omron
Label: Omron

Attributes

Key	Value
Actuator Length	1.35"
Actuator Type	Cross Roller Plunger
Actuator Type - Snap Ac.	Roller, Panel Mount, Pl.
Base Product Number	X-10G
Category	Switches
Circuit	SPDT
Contact Form	SPDT
Contact Form- Switches	SPDT
Current Rating	10A
Current Rating (Amps)	10A (DC)
DC Contact Rating - Sna.	10 A @ 120 V
Depth	0.69"
Depth - Snap Action Swi.	0.69 in
Description	SWITCH SNAP ACTION SPDT.
Detailed Description	Switch SPDT Panel Mount
Differential Travel	0.007" (0.18mm), 0.007 .
Digi-Key Part Number	Z11311-ND
Electrical Connection -.	Screw
Electrical Life	100,000 Cycles
Features	-
Height	1.01"
Height - Snap Action Sw.	1.01 in
Housing Material	Phenolic
Ingress Protection	IP00
Item	Industrial Snap Action .
Length	1.94"
Lever Actuator Length -.	Not Applicable
Manufacturer	Omron Automation and Sa.
Manufacturer Product Nu.	X-10GQ21-B
Manufacturer Standard L.	26 Weeks
Max. Pretravel	0.035 in
Mechanical Life	1,000,000 Cycles
Mfr	Omron Automation and Sa.
Mounting Dimension	1.00" Centers
Mounting Dimension - Sn.	1.00 in Centers
Mounting Type	Panel Mount
Operating Force	510gf
Operating Position	1.313" (33.4mm)
Operating Temp. Range	-13 Degrees to 176 Deg.
Operating Temperature	-25?C ~ 80?C
Overtravel	0.141" (3.6mm)
Package	Tray
Pretravel	0.035" (0.9mm)
Product Status	Active
Release Force	114gf
Series	X
Switch Function	On-Mom
Termination Style	Screw Terminal
Type of Actuator	Panel Mount Cross Rolle.
Voltage Rating	125VDC
Voltage Rating - DC	30 V
Width - Snap Action Swi.	1.94 in

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G3017707	24.19	1	In Stock		Omron	0.17	24.19 @ 1
	sustainablesupply.com	C1181244	27.26	1	In Stock		Omron	0.17	27.26 @ 1
	Airline Hydraulics	OMRON X-10GQ21-B	36.05	1	In Stock		Omron		36.05 @ 1
	Digi-Key	370004	40.15	1	In Stock		Omron Automation and Safety		40.15 @ 1
	Newark	89C8416	40.21	1	In Stock		OMRON INDUSTRIAL AUTOMATION		40.21 @ 1
	Raptor Supplies	AC2JTR	49.722075	1	In Stock		OMRON		49.722075 @ 1
	Master Electronics	X10GQ21B	70.85	1	In Stock		OMRON INDUSTRIAL		70.85 @ 1
