- mpnMJE15032G
- brandname: ON Semiconductor
- manufacturername: ON Semiconductor

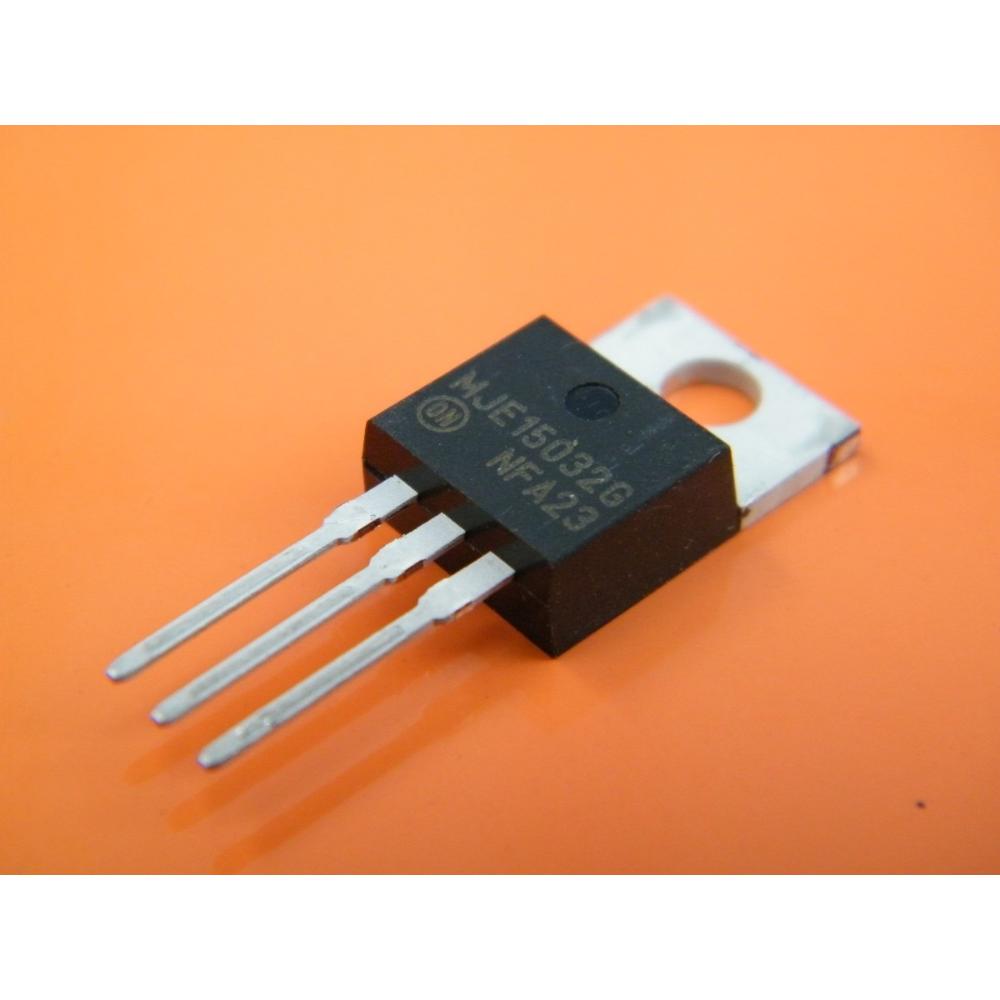

ON SEMICONDUCTOR MJE15032G Discretes bipolar-transistors MJE Series 250 V 8 A NPN Complementary Silicon Plastic Power Transistor - TO-220 - 10 item(s)
- Brand: ON Semiconductor
- PartNumber: MJE15032G
- Model: MJE15032G
- PackageQuantity: 1
- Manufacturer: ON SEMICONDUCTOR
- Label: ON SEMICONDUCTOR
Attributes
| Key | Value |
|---|
| Alternate Mfr Part Numb. | 463634 |
| Base Product Number | MJE15032 |
| Case | TO220 |
| Case Style | TO-220 |
| Category | Discrete Semiconductor . |
| Collector Current | 16 A |
| Collector to Base Volta. | 250 V |
| Collector to Emitter Vo. | 250 V |
| Configuration | Common Base |
| Current | 8 |
| Current - Collector (Ic. | 8 A |
| Current - Collector Cut. | 10?A (ICBO) |
| DC Current Gain (hFE) (. | 10 @ 2A, 5V |
| Description | TRANS NPN 250V 8A TO220 |
| Detailed Description | Bipolar (BJT) Transisto. |
| device package type | TO-220 |
| Digi-Key Part Number | MJE15032GOS-ND |
| Dimensions | 10.28 x 4.82 x 15.75 mm |
| Emitter to Base Voltage | 5 V |
| Forward Current Transfe. | 50 |
| Frequency - Transition | 30MHz |
| Height | 0.62" (15.75mm) |
| item per pack | 1 |
| Length | 0.404 in |
| Manufacturer | On Semiconductor, onsemi |
| Manufacturer Product Nu. | MJE15032G |
| Manufacturer Standard L. | 17 Weeks |
| Material | Si |
| Maximum Collector Curre. | 8 A |
| Maximum Collector Power. | 50 W |
| Maximum Collector-Emitt. | 250 V |
| Maximum Operating Tempe. | +150 ?C |
| Mfr | onsemi |
| Minimum Operating Tempe. | -65 ?C |
| Mounting Type | Through Hole |
| Number of Elements per . | 1 |
| Number of Pins | 3 |
| Operating Frequency | 30 MHz |
| Operating Temperature | -65?C ~ 150?C (TJ) |
| Package | Tube |
| package | 50 PER TUBE |
| Package / Case | TO-220-3 |
| Package Type | TO-220 |
| Polarity | NPN, Bipolar NPN |
| Power - Max | 50 W |
| Power Dissipation | 50 W |
| Primary Type | Si |
| Product Header | Complementary Silicon P. |
| Product Status | Active |
| Resistance, Thermal, Ju. | 2.5 ?C/W |
| Series | -, Transistor Series |
| SKU | 16708 |
| Supplier Device Package | TO-220 |
| Temperature Operating R. | -65 to +150 ?C |
| Transistor Type | NPN |
| Transition Frequency (f. | 30 MHz |
| Type | Transistor Silicon NPN,. |
| Vce Saturation (Max) @ . | 500mV @ 100mA, 1A |
| Voltage (V) | 250 |
| Voltage - Collector Emi. | 250 V |
| Voltage, Breakdown, Col. | 250 V |
| Voltage, Collector to E. | 0.5 V |
| Weight (lbs) | (0.004) |
| Width | 0 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| MCM Electronics | 123-MJE15032G | 1.1 | 1 | 90 | | On-Semiconductor | | 1.1 @ 1 |
 | Tedss | 2028024916 | 1.25 | 8 | 80 | | ONSEMICONDUCTOR | | 1.25 @ 8 |
 | BD Enterprises | MJE15032G | 1.55 | 1 | 80 | | On Semiconductor | 0.004 | 1.55 @ 1 |
 | Newark | 38K5610 | 1.67 | 1 | 59 | | ONSEMI | | 1.67 @ 1 |
| Future Electronics | 3491719 | 1.812 | 1 | 11271 | | ON Semiconductor | | 1.812 @ 1 |
| RS Delivers | 463-634 | 2.1156 | 1 | 85 | | onsemi | | 2.1156 @ 1 |
| us.rs-online.com | 70099654 | 2.26 | 5 | 80 | | ON Semiconductor | | 2.26 @ 5 |
| Little Diode | MJE15032 | 5.9331285 | 1 | 17 | | ON Semiconductor | | 5.9331285 @ 1 |
| AmazonTP | B005T5F894 | 7.33 | 1 | 80 | 2 | ON SEMICONDUCTOR | | 7.33 @ 1 |
| AmazonUNK | B005T5F894 | 7.33 | 1 | 80 | | ON SEMICONDUCTOR | | 7.33 @ 1 |
 | Digi-Key | 919493 | 13.896 | 1 | 80 | | onsemi | | 13.896 @ 1 |
