- mpnFFM365G12
- brandname: Schaefer
- manufacturername: Schaefer

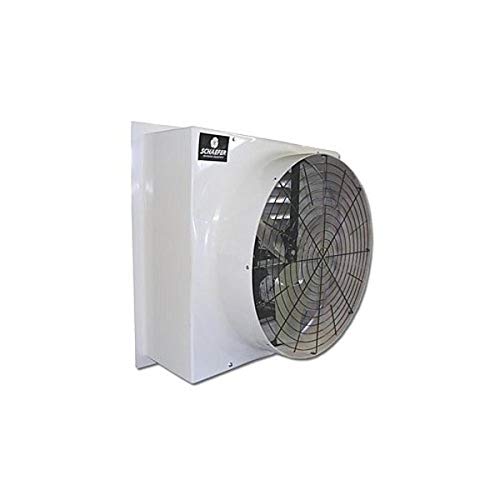

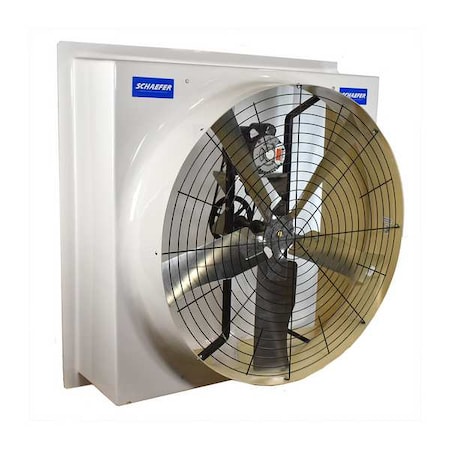

SCHAEFER FFM365G12 Fiberglass Belt Drive Exhaust Fan, 5 Wing Galvanized Blade, Blade Material: Galvanized Steel, 1/2 hp, 36"
- Brand: Schaefer
- PartNumber: FFM365G12
- Model: FFM365G12
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: SCHAEFER
- Label: SCHAEFER
Attributes
| Key | Value |
|---|
| Agency Compliance | UL Listed Motor |
| Air Flow | 9500 CFM |
| Amperage | 4.6/2.3 Amp |
| Assembled | Fully Assembled |
| Bearing Type | Permanently Lubricated . |
| Blade Color | Gray |
| Blade Diameter | 36 in |
| Blade Finish | Galvanized |
| Blade Material | Steel, Galvanized Steel |
| Blade Size | 36 Inch |
| CFM @ 0.000-In. SP | 10,250 |
| CFM @ 0.050-In. SP | 9500 |
| CFM @ 0.100-In. SP | 8550 |
| CFM @ 0.150-In. SP | 8149 |
| Color | White |
| Country of Origin (subj. | United States |
| Drive Type | Belt Drive, Belt |
| Electrical Connection | Hardwired |
| Exhaust Airflow @ 0.000. | 10,250 cfm |
| Exhaust Airflow @ 0.100. | 8,550 cfm |
| Fan RPM | 448 |
| Fan Size | 36 Inch |
| Fan Style | Cylinder |
| Flange Width (In.) | 2 1/4 in |
| For Cut-Out Height | 43 3/4 in |
| For Cut-Out Length | 43 1/2 in |
| For Cut-Out Width | 43 1/2 in |
| For Cutout HxW | 43 3/4 in x 43 1/2 in |
| For Maximum Wall Thickn. | 12 in |
| For Minimum Wall Thickn. | 2 in |
| For Use With | General Exhaust Applica. |
| Frame Finish | Polished |
| Frame Material | Fiberglass |
| Free Area | 12.8 sq ft |
| Free Area (Square-Ft.) | 12.84 |
| Frequency | 60 Hz |
| Full Load Amps | 4.6/2.3 |
| Full Load Current | 4.6 A |
| Guard Color | Black |
| Guard Finish | Powder Coated |
| Guard Material | Steel |
| Guard Material & Coating | Powder Coated Steel |
| Guard Type | Exhaust |
| Height (In.) | 43 1/8 in |
| Horsepower | 1/2 hp |
| Housing Finish | Polished Tan Fiberglass |
| Housing Material | Fiberglass |
| HP | 1/2 hp |
| Hz | 60 |
| Includes | Aluminum Shutter and Be. |
| Includes Dehumidistat | No |
| Includes Motor | Yes |
| Item | Agricultural Exhaust Fan |
| Manufacturer | Schaefer |
| Manufacturer Part Number | FFM365G12 |
| Manufacturer Warranty L. | 2 yr |
| Max. Ambient Temp. (F) | 104 Degrees F |
| Max. Depth (In.) | 25 1/4 in |
| Maximum Airflow | 10,250 cfm |
| Maximum Ambient Operati. | 104 Degrees F |
| Motor Enclosure | Totally Enclosed Air Ov. |
| Motor Enclosure Design | Totally Enclosed Air Ov. |
| Motor Horsepower | 1/2 hp |
| Motor Insulation | Class B |
| Motor RPM | 1725 |
| Motor Speed | 1,725 RPM |
| Motor Type | 3-Phase |
| Mounting Location | wall |
| Nameplate Voltage | 115/230V AC |
| Number of Blades | 5 |
| Number of Fans | 1 |
| Number of Shutters | 1 |
| Number of Speeds | 1 |
| Number of Wings | 5 |
| Opening Required H (In.) | 43 3/4 in |
| Opening Required W (In.) | 43 3/4 in |
| Overall Depth | 25 1/4 in |
| Overall Diameter | 36 in |
| Overall Height | 43 1/8 in |
| Overall Width | 42 3/4 in |
| Phase | 1, 1 Phase |
| Product Condition | New |
| Profile Height Family | High |
| Propeller Dia. (In.) | 36 in |
| Propeller Material | Galvanized Steel |
| Rough-In Dimensions | 43.5 Inch W x 43.75 Inc. |
| Shaft Dia. (In.) | 5/8 in |
| Shaft Diameter | 5/8 in |
| Speed Controllable | No |
| Supply Airflow @ 0.000 . | 10,250 cfm |
| Thermal Protection | Yes |
| Type | Belt Drive, Assembled |
| Type of Product | Exhaust Fans |
| Ventilation Type | Exhaust |
| Venturi Clearance Dia. . | 37 in |
| Venturi Depth (In.) | 10 in |
| Venturi Diameter | 37 in |
| Voltage | 115/230 Volt, 115/230 |
| Wattage | 373 W |
| Watts | 373 W |
| Width (In.) | 42 3/4 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | morelectricheating.com | SCHAEFER10418 | 1957.0 | 1 | In Stock | | Schaefer | | 1957.0 @ 1 |
 | toolfetch.com | SH-FFM365G12 | 1957.0 | 1 | In Stock | | SCHAEFER FAN | | 1957.0 @ 1 |
 | Zoro | G9867137 | 2021.43 | 1 | In Stock | 26 | Schaefer | 215.0 | 2021.43 @ 1 |
 | sustainablesupply.com | C1122321 | 2058.86 | 1 | In Stock | | Schaefer Ventilation | 215.0 | 2058.86 @ 1 |
 | National Supply Network | B2274990 | 2149.0 | 1 | In Stock | | Schaefer | | 2149.0 @ 1 |
| Global Industrial | WBB2274990 | 2216.0 | 1 | In Stock | 25 | SCHAEFER | | 2216.0 @ 1 |
