Schaffner FN2200-250-99

mpnFN220025099
brandname: SCHAFFNER
manufacturername: SCHAFFNER

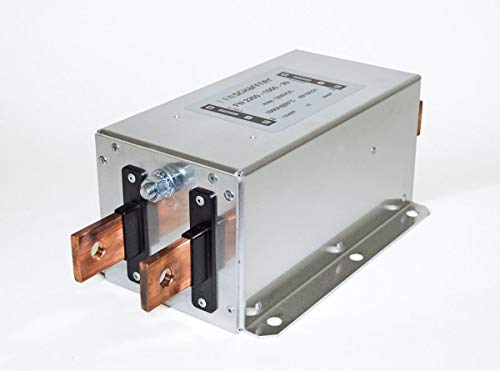

Schaffner Emc FN2200-250-99 Power Line Filter

Schaffner Emc FN2200-250-99 Power Line Filter

zoom

Brand: Schaffner
PartNumber: FN2200-250-99
Model: FN2200-250-99
PackageQuantity: 1
Manufacturer: Schaffner
Label: Schaffner

Attributes

Key	Value
Alternate Mfr Part Numb.	803485
Applications	Photovoltaic Inverter
Approval Agency	cURus, ENEC
Base Product Number	FN2200
Brand	Schaffner
Category	Filters
Configuration	Single Stage
Current	250 A
Current Rating	250 A
Depth	180mm
Description	LINE FILTER 1.2KVDC 250.
Detailed Description	DC EMC/EMI Line Filter .
Digi-Key Part Number	817-1608-ND
Dimensions	300 x 180 x 110mm, 300 .
Filter Type	DC, DC ; EMC ; EMI
Frequency - Operating	-
Height	110mm
Inductance	-
IP Rating	IP20
Length	300mm
Line to Ground Hipot Ra.	3600
Line to Line Hipot Rati.	3000 VDC
Manufacturer	Schaffner EMC Inc.
Manufacturer Product Nu.	FN2200-250-99
Manufacturer Standard L.	20 Weeks
Maximum Current Rating	250A
Maximum Operating Tempe.	+100?C
Maximum Voltage Rating	1200 V dc
Mfr	Schaffner EMC Inc.
Minimum Operating Tempe.	-40?C
Mounting Type	Screw Mount, Panel Moun.
Number of Phases	Number of Phases
Number of Stages	Single Stage
Operating Frequency	DC
Operating Temperature	-40?C ~ 100?C
Package	Box
Power Loss	10W
Primary Type	DC
Product Status	Active
Series	FN 2200 Series, FN2200,.
Stock	Stock
Termination Style	Terminal Post, Tab
Type	Filter
Voltage - Rated AC	-
Voltage - Rated DC	1200V (1.2kV)
Voltage Rating	1200 V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	AmazonTP	B00IRACT4K	450.9	1	In Stock	2	Schaffner		450.9 @ 1
	RS Delivers	881-2435	500.412	1	In Stock		Schaffner		500.412 @ 1
	Digi-Key	2187051	627.22	1	14		Schaffner EMC Inc.		627.22 @ 1
	us.rs-online.com	70028530	642.09	1	1		Schaffner		642.09 @ 1
	Newark	41R3495	675.5	1	3		SCHAFFNER		675.5 @ 1
