Schneider Electric LADS2

B00CON8DT6

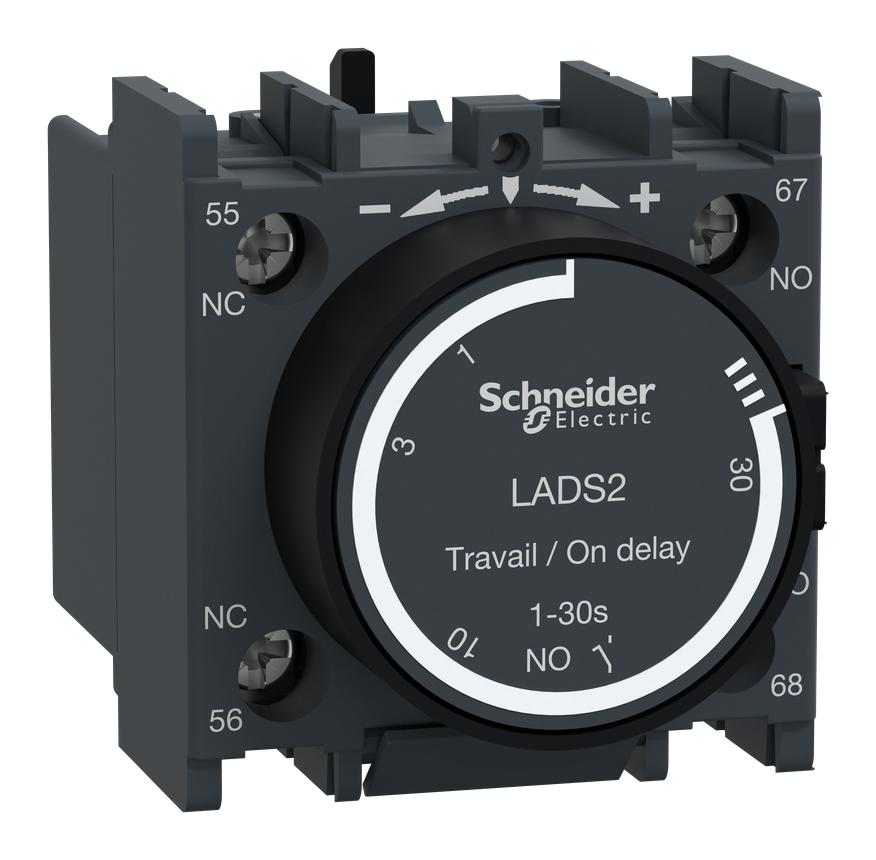

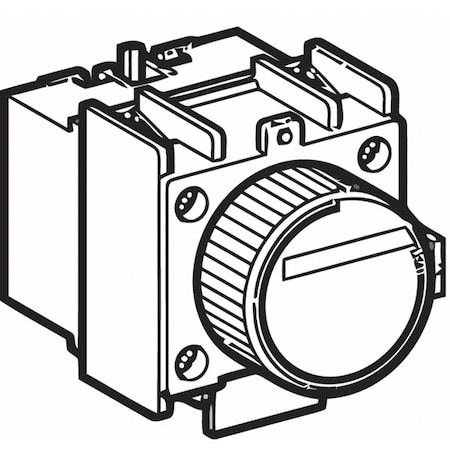

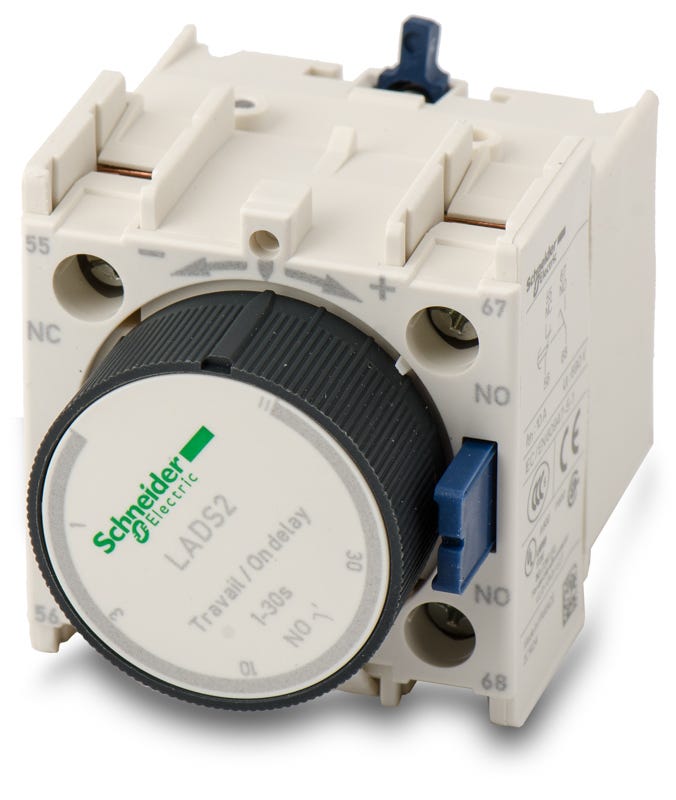

SCHNEIDER ELECTRIC LADS2 Contactor Time Delay Auxiliary Contact Block

SCHNEIDER ELECTRIC LADS2 Contactor Time Delay Auxiliary Contact Blockzoom

Attributes

Key Value
[Ith] Conventional Free.10 A 60?C
Accessory TypeContactor Time Delay Au.
Ambient Air Temperature.-60-80?C
ApplicationTeSys D CAD;TeSys D LC1.
Auxiliary Contacts Oper.time delay
BrandSchneider Electric, Sch.
Catalog NumberLADS2
Coil Voltage690 V AC 25...400 HZ
ComponentAuxiliary Contact Block
Connectionscrew clamp terminals 1.
Connections - Terminalsscrew clamp terminals 1.
Contact Configuration1 NO + 1 NC;Time delay
Contact Current Rating10 A
Contact Form1NO ; 1NC
Contact Operation1NO/1NC
Contact Rating10 A 60 A Degrees C
Contactor TypeIEC
Control Voltage24
Country of OriginFR - France, France
Depth61 mm
ECCNEAR99
Environmental Character.normal environment
Family NameTeSys Family
Gtin785901213840
Height48 mm
Insulation Resistance> 10 MOhm
Ip Degree Of ProtectionIP20 conforming to IEC .
ItemContactor Time Delay Au.
Item Typetime delay auxiliary co.
Made in USANo
ManufacturerSchneider Electric
MountingClip
Mounting Locationfront
Mounting TypeSnap-On
MpnLADS2
Number of Poles2
Operating Altitude9842.52 ft (3000 m)
Operating Temperature-5-60 A Degrees C
Permissible Short-Time .100 A 60?C 1 s || 120 A.
Pole Contact Composition1 NO + 1 NC
Primary TypeAuxiliary Contact
Product CertificationsIECEE CB Scheme || UL |.
Product NameTeSys Deca
Product Or Component Ty.time delay auxiliary co.
Protection TypegG fuse 10 A
SeriesTeSys D, TeSys Deca Ser.
Special Featuresnormal environment
StandardIECEE CB Scheme;UL;CSA;.
StandardsCSA C22.2 No 60947-5-1 .
Starter Actionstime delay
Starter Amperage10 Amp
Starter Auxiliary Conta.1 NO + 1 NC
Sub BrandTeSys D;TeSys Deca
Sub Componenttime delay auxiliary co.
Terminal TypeScrew Clamp
Tightening Torque1.7 N.m flat ? 6 mm || .
Time Delay Range1...30 s
Timer Typeon delay
Typetime delay
UNSPSC39121529
UPC785901213840
Upc785901213840
UPC Code785901213840
Warranty DescriptionContractual Warranty:18.
Width44 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonSCB079Z1XVQK70.481In StockSchneider0.1870.48 @ 1
thumbzoomkempstoncontrols.co.ukLADS282.706247115Schneider82.706247 @ 1
thumbzoomsuperbreakers.comLADS288.291In StockSchneider Electric \/ Telemecanique88.29 @ 1
RS Delivers400-1445128.148131Schneider Electric128.148 @ 1
standardelectricsupply.com2224690157.421In StockSchneider Electric157.42 @ 1
thumbzoomZoroG0653348169.991In StockSchneider Electric0.19169.99 @ 1
us.rs-online.com70008462170.3213Schneider Electric170.32 @ 1
thumbzoomsustainablesupply.comC3039986175.511In StockSchneider Electric0.19175.51 @ 1
rspsupply.comSCHNEIDER LADS2193.441In StockSchneider Electric193.44 @ 1
thumbzoomNational Supply Network69663904197.991In StockSchneider Electric197.99 @ 1
thumbzoomNewark67AH2698199.213SCHNEIDER ELECTRIC199.2 @ 1
Graybar22100903199.7521In StockSquare D (Schneider Electric)199.752 @ 1
thumbzoomcrescentelectric.com56231215.021In StockSchneider Electric215.02 @ 1
