Schneider Electric LRD14

B000ONOPMC

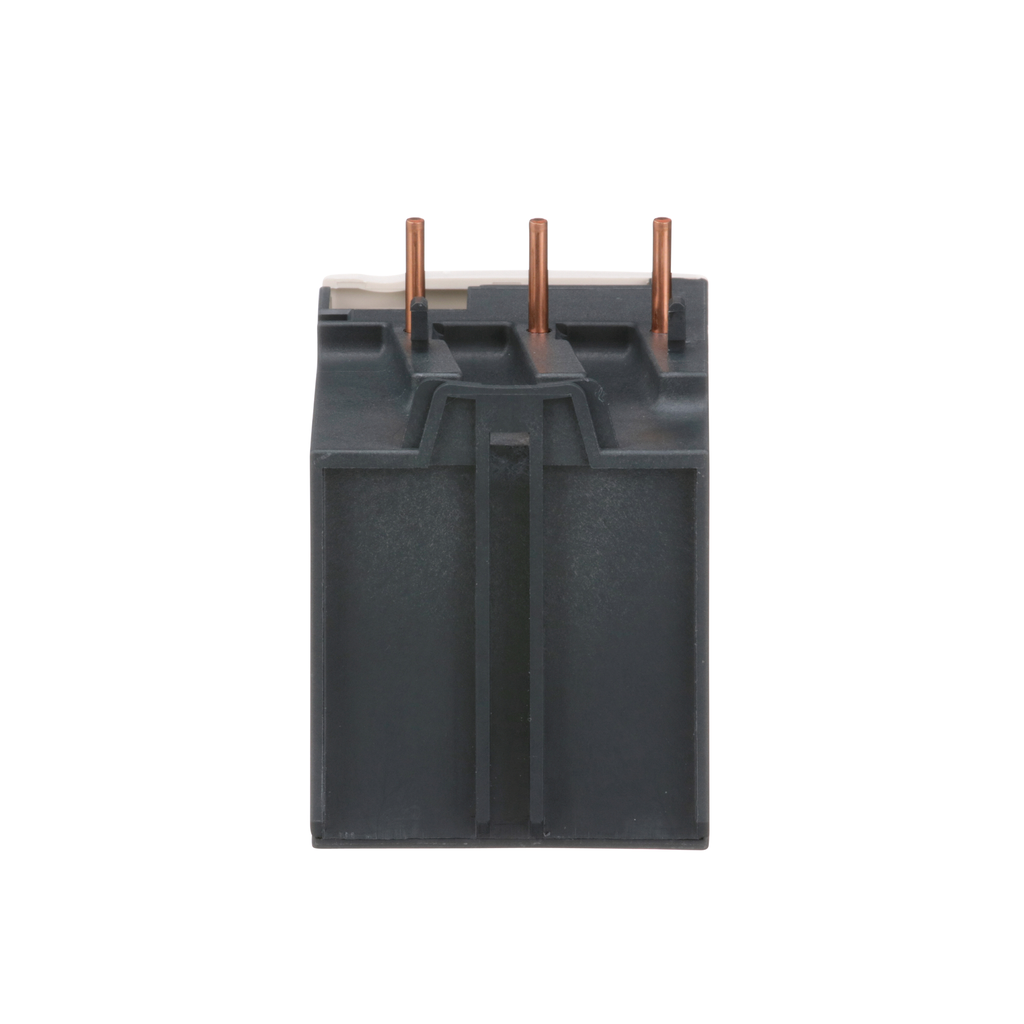

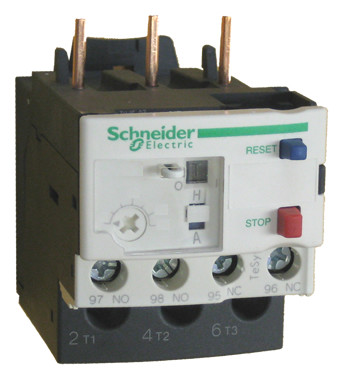

Schneider Electric Overload Relay - LRD14

Schneider Electric Overload Relay - LRD14zoom

Attributes

Key Value
[Ith] Conventional Free.5 A signalling circuit
[Ue] Rated Operational .690 V AC 0...400 Hz pow.
[Ui] Rated Insulation V.power circuit 600 V CSA.
[Uimp] Rated Impulse Wi.6 kV
Ambient Air Temperature.-20-60 ?C without derat.
Ambient Air Temperature.-60-70 ?C
Ambient Temperature Ran.-4-140 ?F
Amperage Rating7-10A
ApplicationMotor protection;LC1D09.
ApprovalsATEK INERIS, CCC, CSA, .
Associated Fuse Rating4 A gG for signalling c.
Auxiliary Contact Compo.1 NO + 1 NC
Best Sellers RankSee Top 100 in Industri.
Body Depth - Relay2.75 in
Body Height - Relay3.62 in
Body Width - Relay1.77 in
BrandSCHNEIDER ELECTRIC
California Proposition .Antimony oxide & Antimo.
Catalog NumberLRD14
China Rohs RegulationProduct out of China Ro.
Circularity ProfileENVEOLI0802006
Class Rating10
Climatic WithstandIACS E10
Connections - Terminalscontrol circuit screw c.
Contact Configuration1 NO + 1 NC
Contact Rating10A CONTROL CIRCUTRY
Contactor seriesTeSys D
Control TypeRed push-button stop ||.
Control Voltage690
Country of OriginFR - France, France
Current Range7.00 to 10.0A
Current Rating7 to 10 A
Current Setting Range7-10 A
Date First AvailableMay 3, 2011
Depth70 mm, 2.756 in, 2.75"
Device Short NameLRD
Dielectric Strength1.89 kV 50 Hz IEC 60947.
ECCNEAR99
Environmental DisclosureENVPEP080206EN
Eu Rohs DirectiveCompliant with Exemptio.
Family NameTeSys Family
Family SeriesSquare D Overload Relays
FeaturesSingle Phase Sensitivit.
Flame RetardanceV1 conforming to UL 94
For Use WithLC1D09 thru LC1D32 Cont.
FunctionOverload
Gross Weight0.32 lbs
Height66 mm, 3.62"
InsulationPOWER CIRCUIT 600 V CSA.
Ip Degree Of ProtectionIP20 conforming to IEC .
ItemOverload Relay
Item - RelayIEC Style Overload Relay
Item model numberLRD14
Item NumberLRD14
Item Typedifferential thermal ov.
Leadsscrew terminals
Length1.772 in
Made in USANo
ManufacturerSquare D, SCHNEIDER ELE.
Maximum Operating Tempe.60 C
Mechanical Robustnessvibrations6 Gn IEC 6006.
Mercury FreeYes
Minimum Operating Tempe.-20?C
MountingRail Plate
Mounting StyleDIN Rail, Plate
Mounting Supportplate, with specific ac.
Net Weight0 lbs, 0.124 kg
Network Frequency0...400 Hz
Network TypeAC || DC
Number of Poles3
Operating Temperature-20C TO 60C WITHOUT DER.
Output Contacts1NO, 1NC
Overall Height - Relay3.62 in
Overload Relay Current .7.0 to 10.0 A, 7.0 to 1.
Permissible Current3 A 120 V AC-15 signall.
Phase Failure Sensitivi.tripping current 130 % .
Primary TypeContactor
Product CertificationsIEC || UL || CSA || CCC.
Product CompatibilityLC1D09 || LC1D12 || LC1.
Product Dimensions8 x 8 x 8 inches; 1.3 P.
Product NameTeSys LRD || TeSys Deca
Product Or Component Ty.differential thermal ov.
Product with faster shi.true
RangeTeSys || TeSys Deca
Range of overcurrent re.7...10A
Reach RegulationReference contains Subs.
Relay Applicationmotor protection
Relay TypeElectromechanical
Reset TypeMANUAL OR AUTO, Manual
Reset Type - RelayManual
Rohs Exemption Informat.Yes
Sensing MethodBIMETALLIC
SeriesTeSys LRD Series
Shippingundefined (Fixed Shippi.
Size70 L x 45 W mm, 2.76
Special FeaturesRed push-button stop;Bl.
StandardUL, CSA
StandardsUL, CSA, ATEX D 94/9/CE.
Starter TypeIEC
Sub BrandTeSys LRD;TeSys Deca;LRD
Supply Voltage690 VAC
Sustainable Offer StatusGreen Premium product
Temperature Compensation-20-60 ?C
Temperature Operating R.-20 to 60?C
Terminal TypeScrew Clamp
Thermal Overload Classclass 10A IEC 60947-4-1
Thermal Protection Adju.7-10 A
Tightening Torquecontrol circuit 1.7 N.m.
Trip Class10, Class 10A
Trip Class - Overload10
Trip TypeTHERMAL - AMBIENT COMPE.
Tripping Threshold1.14 +/- 0.06 Ir IEC 60.
TypeRelay
Type of contactors acce.thermal relay
UNSPSC39122330
UPC785901206774
UPC Code785901206774
Use WithLC1D09-D32
Use With - Contactors a.Mfr. Series LC1D09 to L.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.
Width1.77", 45 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB00AAGK60I28.01In Stock2Square D / Telemecanique28.0 @ 1
AmazonUNKB00E269QRQ28.521In StockSquare D28.52 @ 1
industrialautomationparts.comREL-0113-E136.35113SCHNEIDER ELECTRIC36.35 @ 1
simplybreakers.comLRD1439.991In StockSchneider39.99 @ 1
thumbzoomkentstore.comLRD1440.3113Square D/Telemecanique40.3 @ 1
thumbzoomkempstoncontrols.co.ukLRD1441.8447575115Schneider41.8447575 @ 1
thumbzoomAllfusesLRD1444.69194Square D44.69 @ 1
thumbzoomTMELRD1445.431In StockSCHNEIDER ELECTRIC45.43 @ 1
standardelectricsupply.com35541362.081In StockSchneider Electric62.08 @ 1
hvacdiscountstore.comSCH--LRD1463.0312SCHNEIDER ELECTRIC (SQUARE D)63.03 @ 1
thumbzoomblackhawksupply.comLRD1464.341In StockSquare D64.34 @ 1
RS Delivers394-935264.8481105Schneider Electric64.848 @ 1
thumbzoomRaptor SuppliesAG6PPE65.53257751In StockSCHNEIDER ELECTRIC65.5325775 @ 1
thumbzoomZoroG282601365.551379Schneider Electric0.365.55 @ 1
Graybar9987785865.620814Square D (Schneider Electric)65.6208 @ 1
thumbzoomGalcoLRD14-SQD67.21In StockSquare D0.3267.2 @ 1
thumbzoommayerelectric.comSQDLRD1471.041In StockSQUARE D0.272871.04 @ 1
thumbzoommostelectric.comLRD1473.63147SQUARE D/TELEMECANIQUE73.63 @ 1
thumbzoomhomeessentialsdirect.comLRD1476.291In StockSquare D / Telemecanique76.29 @ 1
thumbzoommidwestapplianceparts.comLRD14-SQ-P81.111Squared81.1 @ 1
thumbzoomptacsolutions.comLRD1483.451In StockSchneider Electric (Square D)83.45 @ 1
us.rs-online.com7000744588.05135Schneider Electric88.05 @ 1
thumbzoomVoomi SupplyLRD1488.991In StockSchneider Electric (Square D)88.99 @ 1
thumbzoomcrescentelectric.com18380092.111In StockSchneider Electric92.11 @ 1
grainger.caTLQLRD1496.045907981In StockSCHNEIDER ELECTRIC0.3296.04590798 @ 1
thumbzoomNational Supply Network69527307101.31In StockSchneider Electric101.3 @ 1
thumbzoomNewark31C9383121.0416SCHNEIDER ELECTRIC121.04 @ 1
