TB Woods SS0951

B01NCZP35S

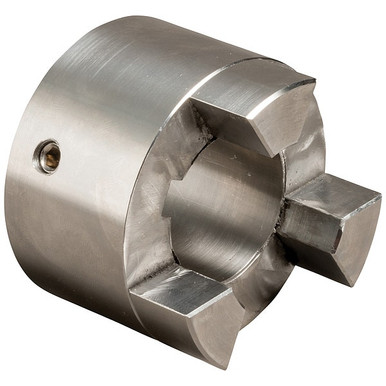

Jaw Coupling Hub,1",SS

Jaw Coupling Hub,1",SSzoom

Attributes

Key Value
Assembled Coupling Leng.2.5 in
Bore Dia.1 in
Bore Diameter1 in
Bore shapeFinish with keyway
Bore size1 in
Bore size frac (in)1.000000
Bore tolerance+.0005 to +.0015
Bore tolerance (in)+.0005 to +.0015
BrandTb Woods
Center0.5
ColorSteel
Compatible Center Eleme.L095H, L095N, L095U
Coupling Overall Length2 1/2 in
Coupling sizeSS095
Current Stock97
Dimension (in) (LTB)1.46
Dimension (in) (OD)2.13
Dimension (in) (S)1.46
Family ID2,008
Family nameJaw coupling
Hub Diameter2 7/64 in
Hub materialStainless steel
International ShippingNo
ItemJaw Coupling Hub
Item - Jaw Coupling HubsJaw Coupling Hub
Jaw typeStraight
Keyseat1/4 x 1/8
Keyway1/4 in x 1/8 in
Keyway Depth1/8 in
Keyway Size1/4" x 1/8"
Keyway Size Type1/4 in x 1/8 in
Keyway Width1/4 in
Lead TimeExpected to ship in 1-2.
Length through Bore1 in
Length-through-bore1
MaterialStainless steel
Material - HubsStainless steel
Material typeStainless steel
Max compatible bore size1.125
Max parallel misalignme.0.015
Max RPM9,000
Max speed9000
Maximum Bore Diameter1 1/8 in
Maximum Operating Tempe.250 Degrees F
Min compatible bore size0.4375
MpnSS0951
O.D.2.11
Outside Dia.2.11 in
Outside Diameter2 7/64 in
Overall length2.5
Overall Length2.54 in
Product descriptionSS095 X 1
Product familyL-jaw hub
Screw Thread Size5/16"-18 NC
Setscrew length0.375
Setscrew length frac (i.0.375000
Setscrew size5/16 18NC
SizeSS095
Size - Jaw CouplingsSS095
Size code95
SKUZO-G0638434
StandardsISO Certified
SubCategoryPower Transmission
Unit Of MeasureEnglish
UPC698672224031

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsustainablesupply.comC168206576.281In StockTB Wood's0.876.28 @ 1
thumbzoomZoroG063843493.751124Tb Woods0.893.75 @ 1
thumbzoomMRO Supply2936414100.791In StockTB Woods100.79 @ 1
thumbzoomsimsupply.comZO-G0638434125.54197Tb Woods125.54 @ 1
