TE Connectivity 2-1419130-4

B073RPQ3Q1

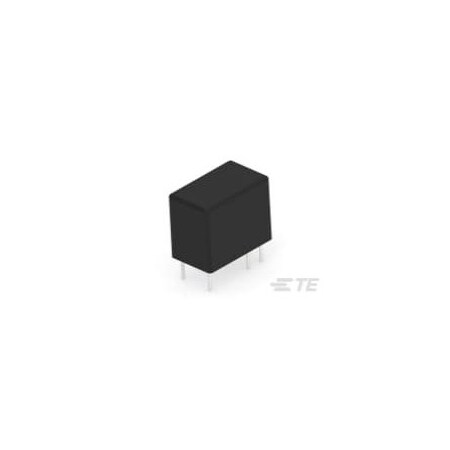

TE Connectivity 2-1419130-4 Relays Signal-Relays TSC Series 1 A SPDT 12 VDC Non-Latching PC Board Through Hole Signal Relay - 5 Item(s)

TE Connectivity 2-1419130-4 Relays Signal-Relays TSC Series 1 A SPDT 12 VDC Non-Latching PC Board Through Hole Signal Relay - 5 Item(s)zoom

Attributes

Key Value
AC contacts rating @R1A / 120V AC
Alternate Mfr Part Numb.2-1419130-4
Alternate Part No.677-TSC-112L3H
Body dimensions12.3x7.4x9.9mm
BrandTE Connectivity / OEG
Coil current12.5mA
Coil Current1 A
Coil power consumption150mW
Coil Resistance960 Ohms
Coil resistance960?
Coil TerminationSolder Pin
Coil TypeNon-Latching
Coil Voltage12 VDC
Coil voltage min.9V DC
Contact current max.1A
Contact Current Rating1 A
Contact FormSPDT (1 Form C), SPDT
Contact materialnickel
Contact MaterialSilver Nickel
Contact platingsilver plated
Contact TerminationPin
Contact Voltage Rating120 VAC
Contacts configurationSPDT
Control Voltage12 V
Country of Origin (subj.China
Current Rating1 A
DC contacts rating @R1A / 24V DC
Electrical life100000 cycles
FunctionGeneral Purpose
Height9.9 mm
Length12.3 mm
ManufacturerTE Connectivity
Manufacturer Part No.TSC-112L3H,000
Mechanical durability5000000 cycles
MountingPCB
Mounting StyleThrough Hole
Mounting TypeThrough Hole
Operate time5ms
Operating temperature-40...80?C
Part # Aliases2-1419130-4
Power Consumption150 mW
Primary TypeSignal Relays
ProductCommunications Relays
Product CategoryGeneral Purpose Relays
Product HeaderTSC Series Miniature Se.
Rated coil voltage12V DC
Relay seriesTSC
Relay TypeElectromechanical
Relay variantsubminiature
Release time5ms
SeriesTSC, TSC OEG Series
StandardsUL, CSA, RoHS, ELV
Switched voltagemax. 30V DC,
Switching capacity24W,
Switching Voltage24 VDC, 120 VAC
Terminal pitch2.54mm
TerminationPCB
Termination StyleSolder Pin
TypeStandard
Type of relayelectromagnetic
Voltage Rating120 V
Width7.4 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comTSC-112L3H,0001.36205293TE Connectivity1.36 @ 50
Allied Electronics712105061.85150TE Connectivity1.85 @ 50
WaldomTE CONNECTIVITY AMP BRAND 2-1419130-42.23254837TE CONNECTIVITY/AMP BRAND2.23 @ 50
Arrow2-1419130-42.24611521TE Connectivity2.246 @ 50
HotendaH38475262.2572140751TE Connectivity Potter & Brumfield Relays2.2572 @ 50
us.rs-online.com701987403.42200050TE Connectivity3.42 @ 2000
thumbzoomswatee.comTSC-112L3H,0003.4712153TE Connectivity3.47 @ 50
thumbzoomTMETSC-112L3H3.6312978TE Connectivity3.63 @ 50
thumbzoomNewark36K36674.28200050OEG - TE CONNECTIVITY4.28 @ 2000
thumbzoomZoroG40103455710.4450Te Connectivity10.4 @ 50
