TE Connectivity / AMP 104549-9

B00FOUXPY4

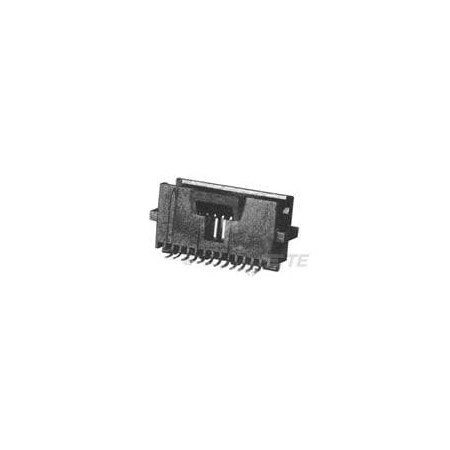

104549-9, 80 SYS50 SURFMNT HDR DRST SHRD

104549-9, 80 SYS50 SURFMNT HDR DRST SHRDzoom

Attributes

Key Value
ApplicationsAutomotive, General Pur.
Base Product Number104549
CaseStandard
CategoryConnectors, Interconnec.
ColorBlack
Connection MaterialPhosphor Bronze
Connector Terminates ToPrinted Circuit Board
Connector TypeHeader
Contact FinishMatte Gold Plated
Contact Finish - MatingGold
Contact Finish - PostTin-Lead
Contact Finish Thicknes.30.0?in (0.76?m)
Contact Finish Thicknes.150.0?in (3.81?m)
Contact Length - Mating0.125" (3.18mm)
Contact Length - Post-
Contact MaterialCopper Alloy
Contact Plating Thickne.30 ?in
Contact ShapeCircular
Contact TypeMale Pin, Pin
Current Rating1 A
Current Rating (Amps)-
DescriptionCONN HEADER SMD 80POS 1.
Detailed DescriptionConnector Header Surfac.
Digi-Key Part NumberA111706-ND
Fastening TypeLatch Holder
FeaturesWith Board Standoff; Sh.
Flammability RatingUL 94 V-0
Hole Center to Center1.27 mm
Ingress Protection-
Insulation ColorBlack
Insulation Height0.435" (11.05mm)
Insulation MaterialPolyphthalamide (PPA)
ItemPCB Mount Header
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.104549-9
Manufacturer Standard L.18 Weeks
Mated Stacking Heights-
MaterialThermoplastic
Material Flammability R.UL94 V-0
Max. Temp.105?C
Max. Voltage30V AC
MfrTE Connectivity AMP Con.
Mounting TypeSurface Mount
Number of Contacts80
Number of Positions80
Number of Positions Loa.All
Number of Rows2
Operating Temperature-65?C ~ 105?C
Overall Contact Length-
PackageBulk
Package Quantity1
Pitch - Mating0.050" (1.27mm)
Product StatusActive
Row Spacing - Mating0.100" (2.54mm)
SeriesAMPMODU System 50
ShroudingShrouded - 4 Wall
SKU392214
StandardsCSA LR7189; UL E28476
StyleBoard to Board or Cable
Terminal FinishTin-Lead Plated
Terminal TypeThrough Hole
TerminationSolder
TypeSemiConductor
Voltage Rating30VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Little Diode104549-95.93312851In StockTE Connectivity5.9331285 @ 1
Future Electronics703408218.42324In StockTE Connectivity18.42 @ 324
WaldomTE CONNECTIVITY AMP BRAND 104549-919.58983TE CONNECTIVITY/AMP BRAND19.58 @ 9
Newark52F304121.89324In StockAMP - TE CONNECTIVITY21.89 @ 324
Mouser571-104549923.411TE Connectivity23.4 @ 1
thumbzoomDigi-Key28945228.4133333333983TE Connectivity AMP Connectors28.4133333333 @ 9
Onlinecomponents.com104549-957.699113TE Connectivity57.69 @ 9
thumbzoomZoroG000937969211.951In StockTe Connectivity211.95 @ 1
