Texas Instruments LMZ14201HTZ/NOPB

B00MEITGR4

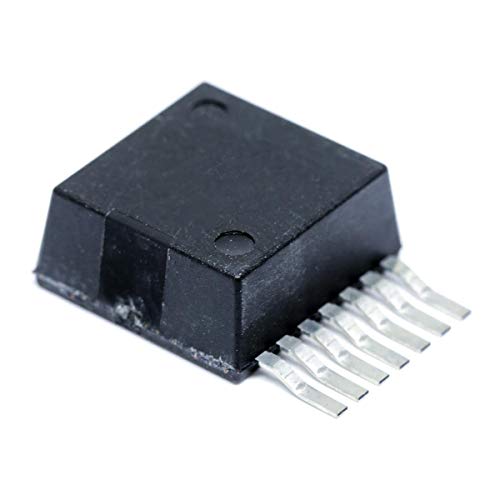

TEXAS INSTRUMENTS LMZ14201HTZ/NOPB IC, SWITCHER POWER MODULE, 1A, TO-PMOD-7

TEXAS INSTRUMENTS LMZ14201HTZ/NOPB IC, SWITCHER POWER MODULE, 1A, TO-PMOD-7zoom

Attributes

Key Value
Alternate Part No.926-LMZ14201HTZ/NOPB
ApplicationsITE (Commercial)
Base Product NumberLMZ14201
BrandTexas Instruments
CategoryPower Supplies - Board .
Control FeaturesEnable, Active High
Current - Output (Max)1A
DescriptionDC DC CONVERTER 5-30V
Detailed DescriptionNon-Isolated PoL Module.
Development KitLMZ14201HEVAL/NOPB
Digi-Key Part NumberLMZ14201HTZ/NOPBTR-ND -.
Efficiency97%
FeaturesOCP, OTP, OVP, SCP, UVLO
Input Voltage MAX42 V
Input Voltage MIN6 V
Load Regulation1.5 mV / A
ManufacturerTexas Instruments
Manufacturer Part No.LMZ14201HTZ/NOPB
Manufacturer Product Nu.LMZ14201HTZ/NOPB
Manufacturer Standard L.12 Weeks
Maximum Operating Tempe.+ 125 C
MfrTexas Instruments
Minimum Operating Tempe.- 40 C
Mounting StyleSMD/SMT
Mounting TypeSurface Mount
Number of Outputs1, 1 Output
Operating Temperature-40?C ~ 125?C
Output Current1 A
Output Voltage5 V
PackageTape & Reel (TR)
Package / CaseTO-PMOD-7, Power Module
Package/CaseTO-PMOD-7
PackagingReel
Product CategoryVoltage Regulators - Sw.
Product StatusActive
SeriesLMZ14201H, SIMPLE SWITC.
Size / Dimension0.40" L x 0.39" W x 0.1.
Supplier Device PackageTO-PMOD-7
Switching Frequency400 kHz
TypeNon-Isolated PoL Module.
Voltage - Input (Max)42V
Voltage - Input (Min)6V
Voltage - Output 15 ~ 30V
Voltage - Output 2-
Voltage - Output 3-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomDigi-Key253380611.331In StockTexas Instruments11.33 @ 1
thumbzoomNewark28AH299317.911In StockTEXAS INSTRUMENTS17.91 @ 1
RadwellLMZ14201HTZNOPB19.391In StockTEXAS INSTRUMENTS SEMI19.39 @ 1
thumbzoomswatee.comLMZ14201HTZ/NOPB21.011438Texas Instruments21.01 @ 1
