SILICONIX (VISHAY) IRFS9N60ATRLPBF

B0731QDPVL

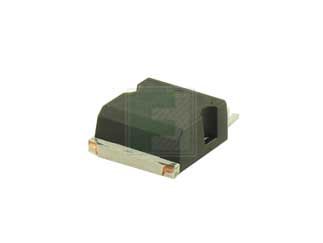

SILICONIX (VISHAY) IRFS9N60ATRLPBF IRFS9N60A Series 600 V 0.75 Ohms Single N-Channel SMT Power Mosfet - D2PAK - 800 item(s)

SILICONIX (VISHAY) IRFS9N60ATRLPBF IRFS9N60A Series 600 V 0.75 Ohms Single N-Channel SMT Power Mosfet - D2PAK - 800 item(s)zoom

Attributes

Key Value
Base Product NumberIRFS9
CategoryDiscrete Semiconductor .
Circuit TypeN-Channel
Current - Continuous Dr.9.2A (Tc)
Drain Current Id(rms)9.2 A
Drain Source Voltage Vds600 VDC
Drain to Source Voltage.600 V
Drive Voltage (Max Rds .10V
Fall Time tf22 ns
Family SeriesVishay Transistors, D2P.
FET Feature-
FET TypeN-Channel
Gate Charge (Qg) (Max) .49 nC @ 10 V
Gate Leakage Current0.1 ?A
Gate Source Voltage Vgss30 VDC
Gross Weight0 lbs
Input Capacitance (Ciss.1400 pF @ 25 V
Item NumberIRFS9N60ATRLPBF
ManufacturerVishay
Manufacturer Part NumberIRFS9N60ATRLPBF
MfrVishay Siliconix
Mounting TypeSurface Mount
Net Weight0 lbs
Operating Temperature-55?C ~ 150?C (TJ)
PackageTape & Reel (TR), TO-263
Package / CaseTO-263-3, D?Pak (2 Lead.
Part StatusActive
Power Dissipation (Max)170W (Tc)
Product SeriesD2PAK
Rds On (Max) @ Id, Vgs750mOhm @ 5.5A, 10V
rDS(on)750 mOhm
Rise Time tr25 ns
RoHSYes
Series-
Supplier Device PackageD?PAK (TO-263)
TechnologyMOSFET (Metal Oxide)
Trr530 ns
Turn Off Delay Time30 ns
Turn On Delay Time13 ns
Typ. Vgs(th)3 VDC
Vgs (Max)?30V
Vgs(th) (Max) @ Id4V @ 250?A

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGalcoIRFS9N60ATRLPBF-VISH1.7680025Vishay1.76 @ 800
thumbzoomNewark05W68662.0480025VISHAY2.04 @ 800
HotendaH18105352.1563480025Vishay/Siliconix2.15634 @ 800
thumbzoomRadwellIRFS9N60ATRLPBF2.9180025VISHAY2.91 @ 800
Future Electronics41061533.3617200Vishay3.36 @ 25
Digi-Key37586123.9111510025Vishay Siliconix3.91115 @ 25
