WEG 05036ET3E326TS-W22

B007ICMV14

WEG 05036ET3E326TS-W22 NEMA Premium High Efficiency Ball Bearings Severe Duty and General Purpose Motor, 50 HP, 3-Phase, 3550 rpm, 208-230/460 V, 60 Hz, Frame 324/6TS

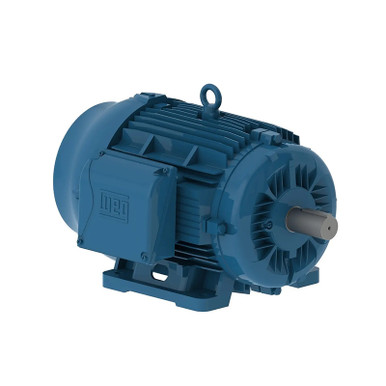

WEG 05036ET3E326TS-W22 NEMA Premium High Efficiency Ball Bearings Severe Duty and General Purpose Motor, 50 HP, 3-Phase, 3550 rpm, 208-230/460 V, 60 Hz, Frame 324/6TSzoom

Attributes

Key Value
Amperage Rating124 to 112/56.1 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
CC NumberCC029A
ClassificationThree Phase
CompositionCast Iron
ConditionNew
Constant Torque Speed R.20:1
ConstructionCast Iron
Country of Origin (subj.Multiple
Degree of ProtectionIP55
Description:MOTOR 50HP 2P 324/6TS W.
Dimensions29.616 in L
Drive End Flange TypeStandard
DutyContinuous
Duty CycleContinuous
Efficiency %93 %
EnclosureTEFC, IC411-TEFC, Total.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight605.00
Family SeriesWEG Electric Motors
FL Amps56.1
FL Efficiency93.0
FlangesWithout
Footnotes2
Frame326TS, 324/6TS, 324TS
Frame MaterialCast Iron
Frame RemarksFooted
Frequency60 Hz
Frequency Rating60 Hz
Full Load Amps112.0/56.1
Full Load Amps @ 50Hz50.3, 52.1, 54.9, 62.6,.
Green Certification or .NEMA Premium(R) Rated
Gross Weight0 lbs
Hertz60
Horsepower50 hp
HP50
HP @ 50Hz40, 50
Hz60
Ins. ClassF
Insulation ClassClass F
ItemGeneral Purpose Motor
Item ConditionFactory New
Item Number05036ET3E326TS-W22
Length Less Shaft25 7/8 in
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number05036ET3E326TS-W22
Manufacturers Warranty .3 yr
MaterialCast Iron
Max. Ambient Temp.40 Degrees C
MFG Part #:05036ET3E326TS-W22
Model11438180
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialCast Iron
Motor Mounting PositionHorizontal
Motor Mounting TypeRigid Base
Motor Service Factor1.25
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
MountingFoot Mount, Foot-mounte.
Mounting TypeFooted, Foot Mount
Nameplate RPM3,550
NEMA DesignB
NEMA Frame326TS
Net Weight0 lbs
No. of Speeds1
Nominal Efficiency93 %
Nominal Voltage208 VAC
Number of Poles4
Number of Speeds1
Output Rating25 HP
Overall Length29 5/8 in
Part Number05036ET3E326TS-W22
Phase3, 3 ph, Three
Product TypeGeneral Purpose
RotationCW/CCW
RPM3600, 3,600 RPM, 3550
RPM @ 50Hz2,950
RPM Group3001-3600
RPM Range3,001-3,600
Service Factor1.25
Service Factor @ 50Hz1
Shaft Dia.1 7/8 in
Shaft Length3 3/4 in
Shaft Size1-7/8 in Dia x 3-3/4 in.
Speed (RPM)3600
StandardNEMA MG-1
StandardsCE, CSA, NOM, UL
Supplier:WEG ELECTRIC CORP
Synchronous Speed1800 rpm
Terminal BoxLeft position
UPC:7891327151918
Usable @ 200VNo
Usable @ 208VYes
Voltage230/460V AC, 575 V, 208.
Voltage (AC)208 VAC
Voltage @ 50Hz380V AC, 400V AC, 415V .
Voltage Compatibility200-230/440V AC, 200-23.
Volts208/230/460
Weight573 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com05036ET3E326TS-W222883.01In StockWEG573.02883.0 @ 1
thumbzoomvfds.com05036ET3E326TS-W223805.01In StockWEG3805.0 @ 1
thumbzoomMRO Supply13124063969.281In StockWEG3969.28 @ 1
thumbzoomWalker Industrial05036ET3E326TS-W223987.01In Stock17WEG3987.0 @ 1
thumbzoommotorsandcontrol.com05036ET3E326TS-W223987.01In StockWEG Electric605.03987.0 @ 1
kscdirect.comWEG 05036ET3E326TS-W224082.551In StockWEG ELECTRIC CORP4082.55 @ 1
thumbzoomGalco05036ET3E326TS-W22-WEG4366.211In StockWEG Electric4366.21 @ 1
thumbzoomindustrialrefrigerationparts.com05036ET3E326TS-W224421.71In StockWEG4421.7 @ 1
AmazonTPB007ICMV144475.441In Stock2WEG4475.44 @ 1
thumbzoomZoroG86327324674.121In Stock26Weg581.04674.12 @ 1
thumbzoomDealers Electric05036ET3E326TS-W224853.581In StockWeg605.04853.58 @ 1
thumbzoomPurvis05036ET3E326TS-W224858.821In StockWEG4858.82 @ 1
thumbzoomNational Supply NetworkB8741336583.591In StockWeg Electric Motors6583.59 @ 1
motionindustries.com047021966818.841In StockWEG Electric Corporation6818.84 @ 1
thumbzoomRaptor SuppliesAE7TWJ7232.99762251In StockWEG7232.9976225 @ 1
