Arrow QL81SB 26D IC

mpnQL81SB 26D IC
brandname: ARROW
manufacturername: ARROW

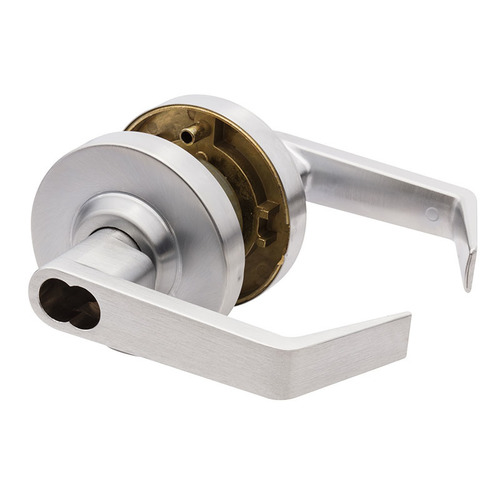

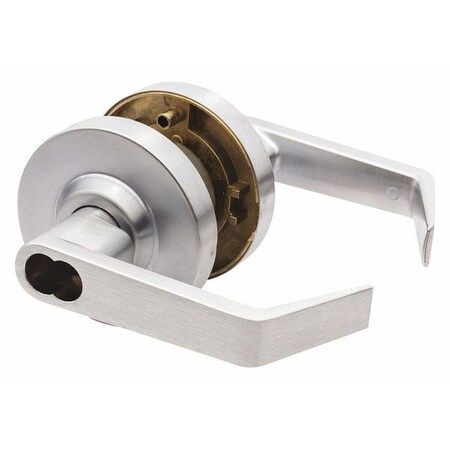

Arrow QL81SB 26D IC Cylindrical Lock

Brand: Arrow
PartNumber: QL81SB 26D IC
PackageQuantity: 1
Manufacturer: Arrow Fastener
Label: Arrow Fastener

Attributes

Key	Value
ADA Approved	False
ADA Compliant	Yes
ANSI Function	F109 - Entry/Office
Backset	2 3/4 in, 2-3/4", 1-1/8.
Base Material	Brass or Bronze
Bolt Protection	1/2"
Bore Size	2.1250
Color	Satin Chrome
Color Code	626/US26D
Country of Origin (subj.	Korea, Republic of
Cylinder Core Type	SFIC
Cylinder Type	SFIC Less Core-Small Fo.
Door Thickness	1-3/8" - 1-3/4"
Electrical/Mechanical	Mechanical
Features	Freewheeling Lever Acti.
Finish	Satin Chrome
Finish Description	Satin Chrome
Fire Rated	3 Hours {A}
For Use With	Metal or Wood Doors
Function	81-Entrance/Office
Grade	ANSI/BHMA Grade 1
Hand	Not Handed
Handle Material	Zinc
Includes	Latch, Mounting Hardwar.
Item	Door Lever Lockset
Key Material	Not Applicable
Key Type	Different
Keyway Type	SFIC Less Core
Latch Backset Dim	2-3/4"
Latch Number	Q71
Latch Type	Dead Latch (Guarded)
Lever Length	4.7500
Lever Style	SB-Sierra
Lever/Knob Design	S - Sierra
Ligature Resistant	No
Location Type	Commercial, Residential
Lock Face Size	2-1/4" x 1-1/8"
Lockset Finish	Satin Chrome
Lockset Fire Rating	3 hr
Lockset Function	Entrance
Lockset Grade	1
Lockset Handle Type	Lever
Lockset Performance Str.	Heavy Duty
Mortise / Cylindrical	Cylindrical
Mortise/Cylindrical	Cylindrical
Number of Keys	0
Number of Pins	0
Package Height	4.125"
Package Length	8.375"
Package Qty	1
Package Volume	241.828125
Package Width	7"
Product Height	3.34375"
Product Length	4.75"
Product Type	Cylindrical Lock
Product Width	2.53125"
Projection	2.5313
Required Door Thickness	1-3/8 in to 1-3/4 in
Rose/Escutcheon Design	B - Rose
Rose/Escutcheon Trim	Round Rose
Screws	Combination
Series	QL
Special Marks	Small format interchang.
Standards	ANSI A156.2
Strike	ANSI, 1-1/4" x 4-7/8", .
Strike Dim.	4-7/8 in x 1-1/8 in
Strike Height	4-7/8"
Strike Number	306
Strike Type	ASA, ANSI Straight Lip
Strike Width	1-1/4"
Style	Flat with Return
Thickness	1-3/8" - 1-3/4"
Visual Indicator Message	No Message
Voltage	none

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Zoro	G2525168	142.19	1	In Stock		Arrow	4.5	142.19 @ 1
DK Hardware	QL81SB 26D IC	150.87	1	In Stock		Arrow		150.87 @ 1
Grainger	429L33	247.25	1	In Stock	10	ARROW		247.25 @ 1
