- mpnAOM3705T
- brandname: Baldor
- manufacturername: Baldor

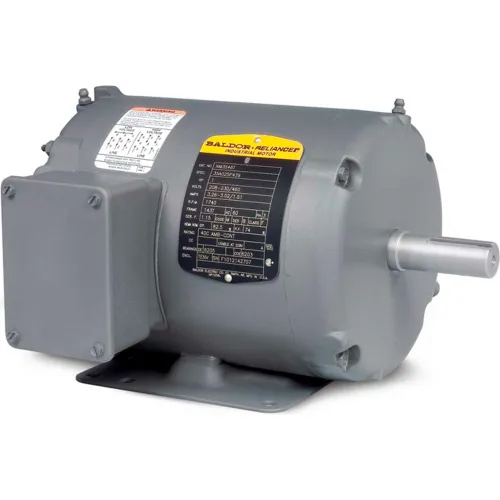

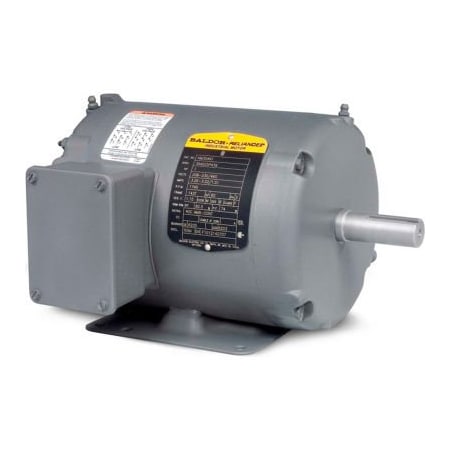

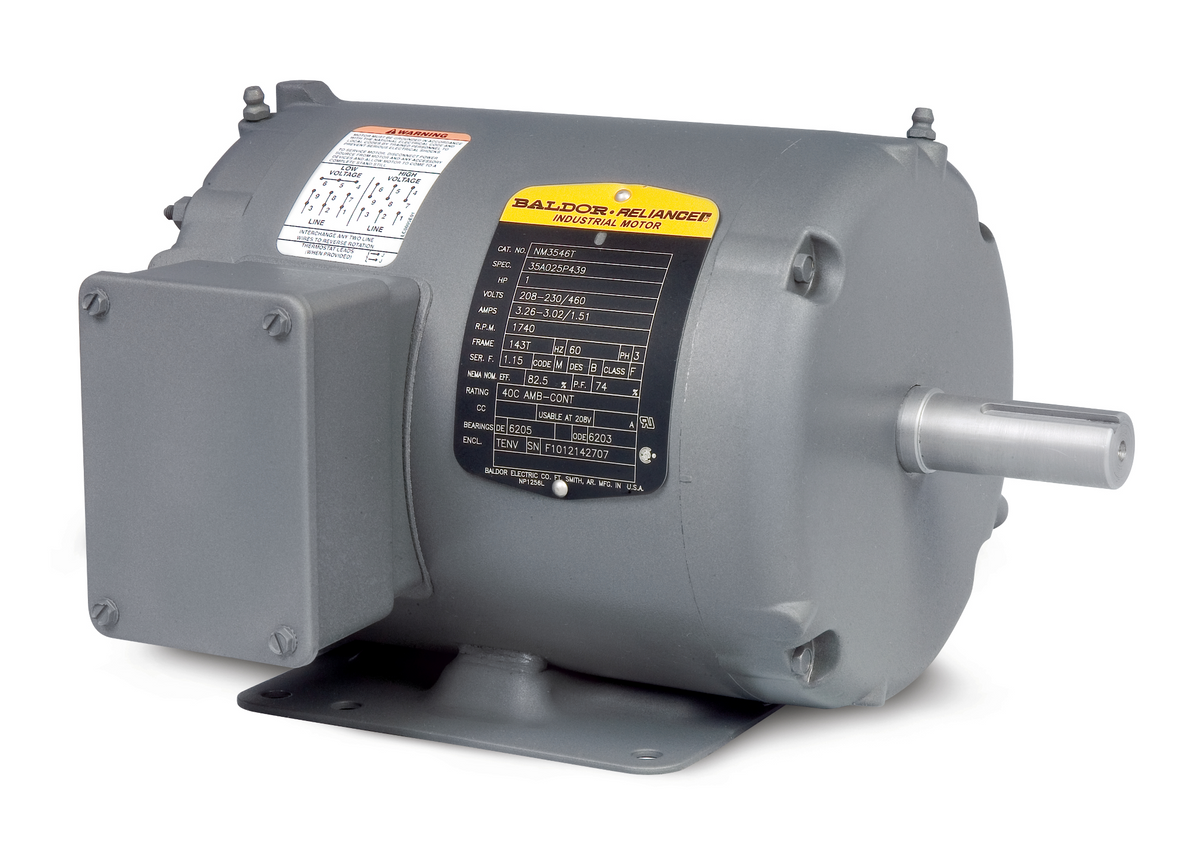

Baldor AOM3705T HVAC Motor
- Brand: Baldor
- PartNumber: AOM3705T
- Manufacturer: Baldor
- Label: Baldor
Attributes
| Key | Value |
|---|
| Amps | 5.2/11.3/10.4 |
| Application | HVAC |
| Approvals | CSA, UL |
| Bearings | Ball |
| Construction | Aluminum |
| Country of Origin (subj. | United States |
| Drive End Flange Type | Standard |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Efficiency % | 86.5 % |
| Enclosure | TEAO, Totally Enclosed . |
| Enclosure Material | Steel |
| Enclosure Type | TEAO (Totally Enclosed . |
| Estimated Weight | 113.00 |
| Family Series | Baldor Motors, AOM Seri. |
| FL Amps | 11.3-10.4/5.2 |
| FL Efficiency | 86.5 |
| Frame | 215T |
| Frame Type | 215T |
| Gross Weight | 111 lbs |
| Hertz | 60 |
| Horsepower | 3 hp |
| Horsepower Rating | 3 hp |
| HP | 3 |
| Hz | 60 |
| Insulation Class | F |
| Inverter Duty | No |
| Item Number | AOM3705T |
| Manufacturer | Baldor-Reliance, Baldor. |
| Manufacturer Model # | 37F359T944G1 |
| Manufacturer Part Number | AOM3705T |
| Maximum Ambient Tempera. | 40? C |
| Motor Construction | Steel |
| Motor Amperage (Full Lo. | 11.300 Amp, 10.400 Amp,. |
| Motor Enclosure Type | Totally Enclosed Air Ov. |
| Motor Frame Model | 215T |
| Motor Frequency | 60 Hz |
| Motor Horsepower | 3 hp |
| Motor Insulation Class | Class F Insulation |
| Motor Nema Design | Nema Design H |
| Motor RPM's | 900 RPM |
| Motor Voltage | 208 Volt, 230 Volt, 460. |
| Motor Voltage Phases | 3 Phase |
| Mounting | Foot Mount, Rigid |
| Mounting Type | Footed, Foot Mount, Rig. |
| NEMA Frame | 215T |
| Net Weight | 111 lbs |
| Nominal Voltage | 208 VAC, 240 VAC, 415 V. |
| Number of Poles | 8 |
| Number of Speeds | 1 |
| Overall Length | 17.44", 17.44 " |
| Part Number | AOM3705T |
| Phase | 3, 3 Phase |
| Product Series | AOM |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 900 RPM, 865, 865 RPM |
| Series | HV3 Series |
| Service Factor | 1, 1.00 |
| Shaft Diameter | 1.375" |
| Ship Weight | 113 lbs. |
| Speed (RPM) | 865 |
| Supply Voltage | 208-230/460 VAC |
| UPC Code | 781568121788 |
| Voltage | 208-230/460, 208V, 230V. |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Volts | 208-230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | emotorpro.com | AOM3705T | 1882.6 | 1 | In Stock | | Baldor | 113.0 | 1882.6 @ 1 |
| factorysupplyoutlet.com | QW98KE | 2077.89 | 1 | In Stock | | Baldor-Reliance | | 2077.89 @ 1 |
 | Galco | AOM3705T-BLDR | 2083.09 | 1 | In Stock | | Baldor | 111.0 | 2083.09 @ 1 |
 | Walker Industrial | AOM3705T | 2083.09 | 1 | In Stock | | Baldor | | 2083.09 @ 1 |
 | Global Industrial | WBB388559 | 2129.0 | 1 | In Stock | | Baldor-Reliance | | 2129.0 @ 1 |
| motorsandcontrol.com | AOM3705T | 2169.88 | 1 | In Stock | | Baldor Reliance | 113.0 | 2169.88 @ 1 |
 | pumpproducts.com | AOM3705T | 2464.0 | 1 | In Stock | | Baldor | | 2464.0 @ 1 |
| rspsupply.com | BALDOR AOM3705T | 2556.52 | 1 | In Stock | | Baldor | | 2556.52 @ 1 |
| us.rs-online.com | 71935110 | 2603.86 | 1 | In Stock | | Baldor-Reliance | | 2603.86 @ 1 |
| kirbyrisk.com | 2275704 | 2731.33 | 1 | In Stock | | Baldor | | 2731.33 @ 1 |
| motionindustries.com | 00545816 | 3298.91 | 1 | In Stock | | Baldor-Reliance | | 3298.91 @ 1 |
 | Zoro | G405129891 | 4137.0 | 1 | In Stock | | Baldor-Reliance | | 4137.0 @ 1 |
 | Raptor Supplies | AJ6NVL | 6204.398733 | 1 | In Stock | | BALDOR MOTOR | | 6204.398733 @ 1 |
