Burndy YA29A3

B00GPQ3T4W

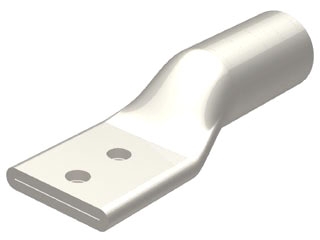

Burndy YA29A3 Two Hole Lug Compress Conct, 250 Kcmil

Burndy YA29A3 Two Hole Lug Compress Conct, 250 Kcmilzoom

Attributes

Key Value
ApplicationFor Aluminum & Copper C.
ApprovalsCSA, UL
Barrel LengthLong
Barrel Outside Diameter0.92 in
Barrel SizeStandard
Barrel StyleChamfered
BrandBurndy
Cable Size250 kcmil
ColorRed
Color CodeRed
Color FamilyRed
Conductor - AL Str Size250 kcmil
Conductor - AL Str Size.250 kcmil
Conductor - Copper Str .250 kcmil
Conductor - Copper Str .250 kcmil
Conductor Size250 kcmil
Connector TypeTerminal, Standard Barr.
Contact FinishTin
Country of OriginUS - United States
Current Stock3
Die Code324
Die ColorRed
Die Index324
Dimension - B Length fr.1-7/16 in
Dimension - B Length in.1.45 in
Dimension - Bolt Hole S.0.52 in
Dimension - Bolt Size f.1 to 2
Dimension - Bolt Size i.0.5
Dimension - D inch3.11 in
Dimension - Hole Size f.1 to 2
Dimension - Hole Size i.0.56 in
Dimension - Hole Size mm14 mm
Dimension - L Length Ov.134 mm
Dimension - Length Over.5.28 in
Dimension - N inch0.63 in
Dimension - Outside Dia.0.92 in
Dimension - Pad Width i.1.26 in
Dimension - Strip Lengt.39452
Dimension - Stud Size f.1 to 2
Dimension - Stud Size i.1 to 2
Dimension - Thread Size1 to 2
Dimension - Z inch0.73 in
ECCNEAR99
Family SeriesBurndy Terminals, YA-A .
Feature - Barrel StyleChamfered
Feature - Barrel TypeStandard
FinishTin-Plated
For Conductor MaterialAluminum, Copper
For Stranded Aluminum W.250 kcmil
For Stranded Copper Wir.250 kcmil
For Stranded Copper Wir.250 kcmil
For Stud Size1/2 in
For Wire Size250 kcmil
For Wire TypeStranded
Gross Weight0.0125 lbs
Hole Center to Center1.75 in
Hole Center to End0.63 in
Hole Size0.56 in
Inspection HoleNo
International ShippingNo
ItemTwo-Hole Lug Compressio.
Item NumberYA29A3
Item Type3A
Lead TimeExpected to ship in 1-2.
Length5.28"
Length (Straight Wirewa.5.28 in
Lug Compression Connect.Two-Hole Lug Compressio.
Lug Wire Size250 kcmil
ManufacturerBurndy
Manufacturer Part NumberYA29A3
MaterialAluminum, Tin-Plated Al.
Material/CompositionCopper
Max Conductor Range250 kcmil
Maximum Operating Tempe.194 Degrees F
Maximum Voltage35 kV AC
Min Conductor Range250 kcmil
MpnYA29A3
Net Weight0 lbs
Number of Holes2
Overall Length5.28 in
Overall Width1.27 in
Peep HoleNo
Physical Attribute - Nu.2
Physical Attribute - To.Standard
Plate MaterialElectro Tin
PlatedY
Plating TypeTin - Electro Plated
Product SeriesYA-A
Rating - KVA35 kV
Rating - Minimum Voltage600
RoHS CompliantYes
SKUZO-G4660363
Special FeaturesEnsure the Transformer .
StandardsCSA Certified, UL 486A-.
Strip Length1 5/8 in
Stud Size1/2 in., 1/2 in
SubCategoryElectrical
Temperature Rating194
Termination StyleCrimp
Tongue AngleStraight
Tongue Length1.36 in
Tongue StyleStandard
Tongue Thickness0.33 in
Tongue Width1.26 in
Tongue Width Ranges1.01 - 1.50 inches
Trade NameHYLUG?
UNSPSC39121405
UPC781810556160
UPC Code781810755006
Width1.26"
Wire Size250 kcmil
Wire Size Range250 kcmil - 250 kcmil

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
steinerelectric.com8607513.441In StockBURNDY13.44 @ 1
thumbzoomgordonelectricsupply.comYA29A325.651In StockBURNDY25.65 @ 1
Graybar8804858125.894411Burndy25.8944 @ 1
thumbzoomKelly HayesYA29A327.01177Burndy27.0 @ 1
kirbyrisk.com178809740.251In StockBurndy40.25 @ 1
thumbzoomMegadepotYA29A341.121In StockBurndy41.12 @ 1
thumbzoomusmegastore.comYA29A341.121In StockBurndy41.12 @ 1
thumbzoomZoroG466036344.091In StockBurndy0.244.09 @ 1
us.rs-online.com7148707049.27116BURNDY49.27 @ 1
thumbzoomsimsupply.comZO-G466036355.5513Burndy55.55 @ 1
thumbzoomGalcoYA29A3-BURN58.791In StockBurndy0.012558.79 @ 1
thumbzoomRaptor SuppliesAB6RMZ72.1584631In StockBURNDY72.158463 @ 1
