- mpn4Z305
- brandname: DAYTON
- manufacturername: DAYTON

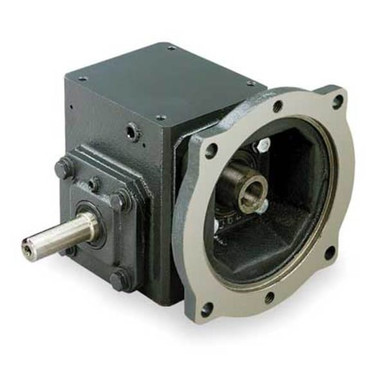

Speed Reducer, C-Face, 56C, 15:1
- Brand: Dayton
- PartNumber: 4Z305
- Model: 4Z305
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Dayton
- Label: Dayton
Attributes
| Key | Value |
|---|
| Bearings | Ball |
| Bore Dia. | 5/8" |
| Brand | Dayton |
| Current Stock | 9 |
| Dimension U | 1 in |
| Duty | Standard |
| Finish | Powdered Epoxy Paint |
| Frame | 56C |
| Gear Material | Hardened and Ground Ste. |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Input RPM | 1750 rpm, 1750 |
| Input Shaft Diameter | 5/8 in |
| International Shipping | No |
| Item | Speed Reducer |
| Lead Time | Expected to ship in 1-2. |
| Lubrication | Kluber Food Grade |
| Max. Input HP | 1.5 hp, 1.5, 1-1/2 |
| Max. Output Torque | 614 in.-lb., 614 in-lb |
| Max. Torque (In.-Lbs.) | 614 |
| Mounting | Any Position Except Inp. |
| Mpn | 4Z305 |
| NEMA/IEC Frame | 56C |
| Nominal Output RPM | 117 RPM, 117 |
| Nominal Ratio | 15:1 |
| Number of Stages | 1 |
| Oil Seal | Double Lip |
| Output Shaft Dia. | 1 in |
| Output Shaft Diameter | 1 in |
| Output Torque @ 1 HP | 456 in-lb, 456 in-lbs |
| Output Torque @ 1 HP (I. | 456 |
| Output Torque @ 1.5 HP | 614 in-lbs |
| Output Torque @ 1.5 HP . | 614 |
| Output Torque @ 1/40 HP | 3,600 in-lbs, 3600 in.-. |
| Output Torque @ 2 HP | 614 in-lbs |
| Output Torque @ 3/4 HP | 338 in-lb, 338 in-lbs |
| Output Torque @ 3/4 HP . | 338 |
| Overhung Load | 875 lb, 875 lb. |
| Overhung Load (Lb.) | 875 |
| Pinion Material | Hardened Steel |
| Prop 65 | WARNING: Cancer and Rep. |
| Reducer Model No. | 83962 |
| Rotation | CW/CCW, Forward/Reverse |
| Seal Type | Double Lip |
| Shaft Assembly | Left |
| Shaft Orientation | Right Angle |
| Ship Weight | 29 lbs. |
| Single/Double Output/Un. | Single Output |
| SKU | ZO-G0645504 |
| Solid/Hollow Output Sha. | Solid |
| Speed Reducer Type | C-Face |
| Standards | AGMA |
| SubCategory | Power Transmission |
| Type | C-Face |
| UPC | 190735340387 |
| Worm Center Distance | 2.06 in, 2.06" |
| Worm Gear Material | Bronze |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | NRI Industrial | D326220 | 479.02 | 1 | In Stock | | DAYTON | | 479.02 @ 1 |
 | Zoro | G0645504 | 519.99 | 1 | 17 | | Dayton | 28.2 | 519.99 @ 1 |
 | simsupply.com | ZO-G0645504 | 642.65 | 1 | 9 | | Dayton | | 642.65 @ 1 |
| AmazonSC | B000LEUL5E | 725.39 | 1 | In Stock | | Dayton | | 725.39 @ 1 |
| AmazonTP | B000LEUL5E | 734.52 | 1 | In Stock | 5 | Dayton | | 734.52 @ 1 |
| AmazonUNK | B000LEUL5E | 734.52 | 1 | In Stock | | Dayton | | 734.52 @ 1 |
 | sustainablesupply.com | C2777239 | 786.62 | 1 | In Stock | | Dayton | 28.2 | 786.62 @ 1 |
 | Raptor Supplies | AE2QVC | 854.705709 | 1 | In Stock | | DAYTON | | 854.705709 @ 1 |
| grainger.ca | WWG4Z305 | 883.66154694 | 1 | In Stock | | DAYTON | 28.2 | 883.66154694 @ 1 |
| emotorpro.com | 4Z305 | 1138.5 | 1 | In Stock | | Dayton | 29.0 | 1138.5 @ 1 |
