FAIRCHILD (ON SEMICONDUCTOR) FDMS7660

mpnFDMS7660
brandname: FAIRCHILD SEMICONDUCTOR
manufacturername: FAIRCHILD SEMICONDUCTOR

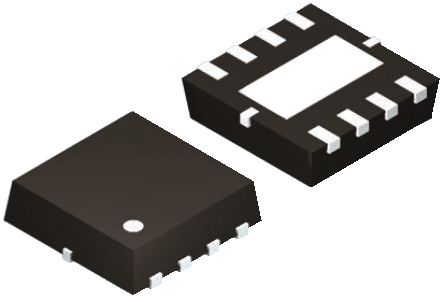

FAIRCHILD (ON SEMICONDUCTOR) FDMS7660 N-Channel 30 V 2.8 mOhm Surface Mount Power Trench Mosfet - Power 56 - 3000 item(s)

Brand: FAIRCHILD (ON SEMICONDUCTOR)
PartNumber: FDMS7660
Model: FDMS7660
PackageQuantity: 1
Manufacturer: FAIRCHILD (ON SEMICONDUCTOR)
Label: FAIRCHILD (ON SEMICONDUCTOR)

Attributes

Key	Value
Base Product Number	FDMS76
Brand	ON Semiconductor
Case	Power56
Category	Discrete Semiconductor .
Channel Mode	Channel Mode
Channel Type	Channel Type
Current - Continuous Dr.	25A (Ta), 42A (Tc)
Description	MOSFET N-CH 30V 25A/42A.
Detailed Description	N-Channel 30 V 25A (Ta).
Digi-Key Part Number	FDMS7660TR-ND - Tape & .
Drain current	42A
Drain to Source Voltage.	30 V
Drain-source voltage	30V
Drive Voltage (Max Rds .	4.5V, 10V
FET Feature	-
FET Type	N-Channel
Gate charge	84nC
Gate Charge (Qg) (Max) .	84 nC @ 10 V
Gate-source voltage	?20V
Height	1.05mm
Input Capacitance (Ciss.	5565 pF @ 15 V
Kind of channel	enhanced
Kind of package	reel,
Length	5mm
Manufacturer	ONSEMI
Manufacturer Product Nu.	FDMS7660
Manufacturer Standard L.	36 Weeks
Maximum Continuous Drai.	144 A
Maximum Drain Source Re.	Maximum Drain Source Re.
Maximum Drain Source Vo.	Maximum Drain Source Vo.
Maximum Gate Source Vol.	Maximum Gate Source Vol.
Maximum Operating Tempe.	+150 ?C
Maximum Power Dissipati.	78 W
Mfr	ONSEMI
Minimum Gate Threshold .	1.25V
Minimum Operating Tempe.	-55 ?C
Mounting	SMD
Mounting Type	Surface Mount
Number of Elements per .	1
On-state resistance	3.7m?
Operating Temperature	-55?C ~ 150?C (TJ)
Package	Tape & Reel (TR)
Package / Case	8-PowerTDFN
Package Type	Power 56
Pin Count	Pin Count
Polarisation	unipolar
Power dissipation	78W
Power Dissipation (Max)	2.5W (Ta), 78W (Tc)
Product Status	Active
Pulsed drain current	150A
Rds On (Max) @ Id, Vgs	2.8mOhm @ 25A, 10V
Series	PowerTrench?, PowerTren.
Stock	Stock
Supplier Device Package	8-PQFN (5x6)
Technology	MOSFET (Metal Oxide)
Transistor Configuration	Single
Transistor Material	Si
Type of transistor	N-MOSFET
Typical Gate Charge @ V.	Typical Gate Charge @ V.
Vgs (Max)	?20V
Vgs(th) (Max) @ Id	3V @ 250?A
Width	6mm

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Component Electronics	FDMS7660-FSC	0.46	1	3000	Fairchild Semiconductor	0.46 @ 3000
Hotenda	H1813896	0.60074	1	3000	Fairchild Semiconductor	0.60074 @ 3000
RS Delivers	864-4737	0.714	3000	3000	ON Semiconductor	0.714 @ 3000
Newark	96AC0021	0.738	3000	3000	ONSEMI	0.738 @ 3000
Future Electronics	3479912	0.738	3000	3000	ON Semiconductor	0.738 @ 3000
Radwell	FDMS7660	0.78	3000	3000	FAIRCHILD SEMICONDUCTOR	0.78 @ 3000
TME	FDMS7660	1.05	1	3000	ONSEMI	1.05 @ 3000
Digi-Key	2021403	1.137444	1	4192	onsemi	1.137444 @ 3000
