Hayward SLC10400TE

B00IS7A552

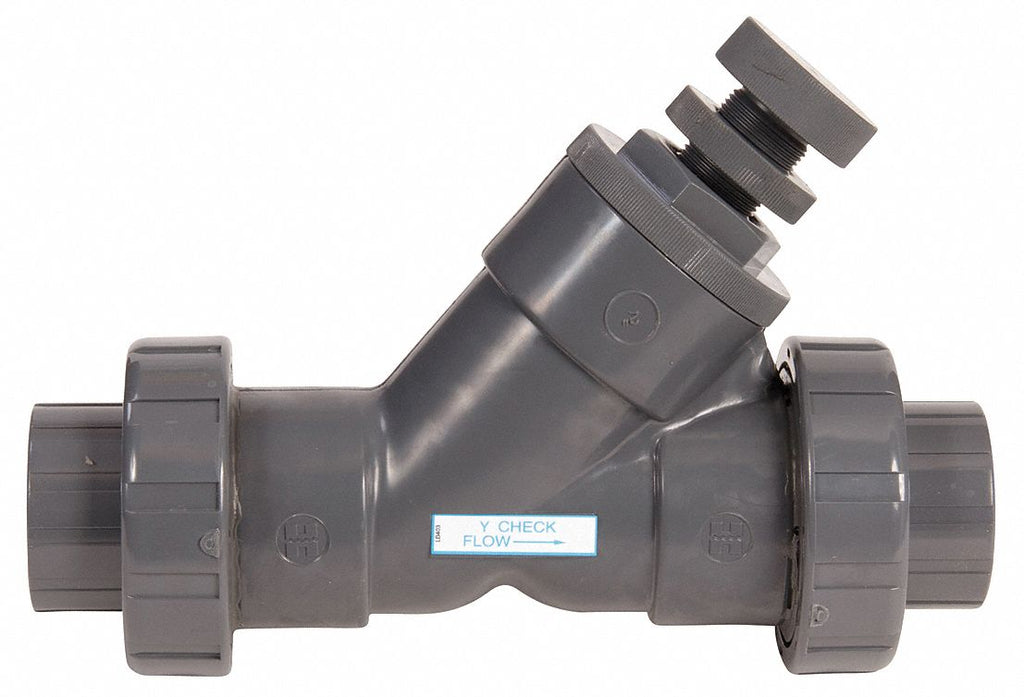

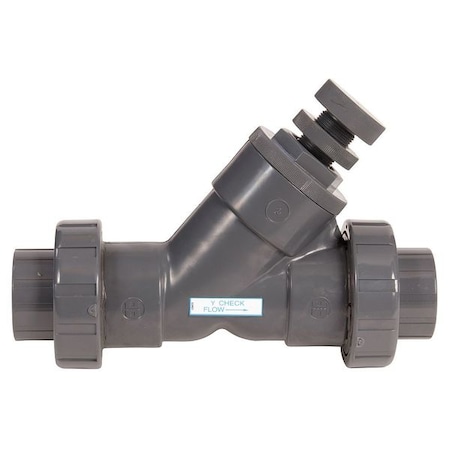

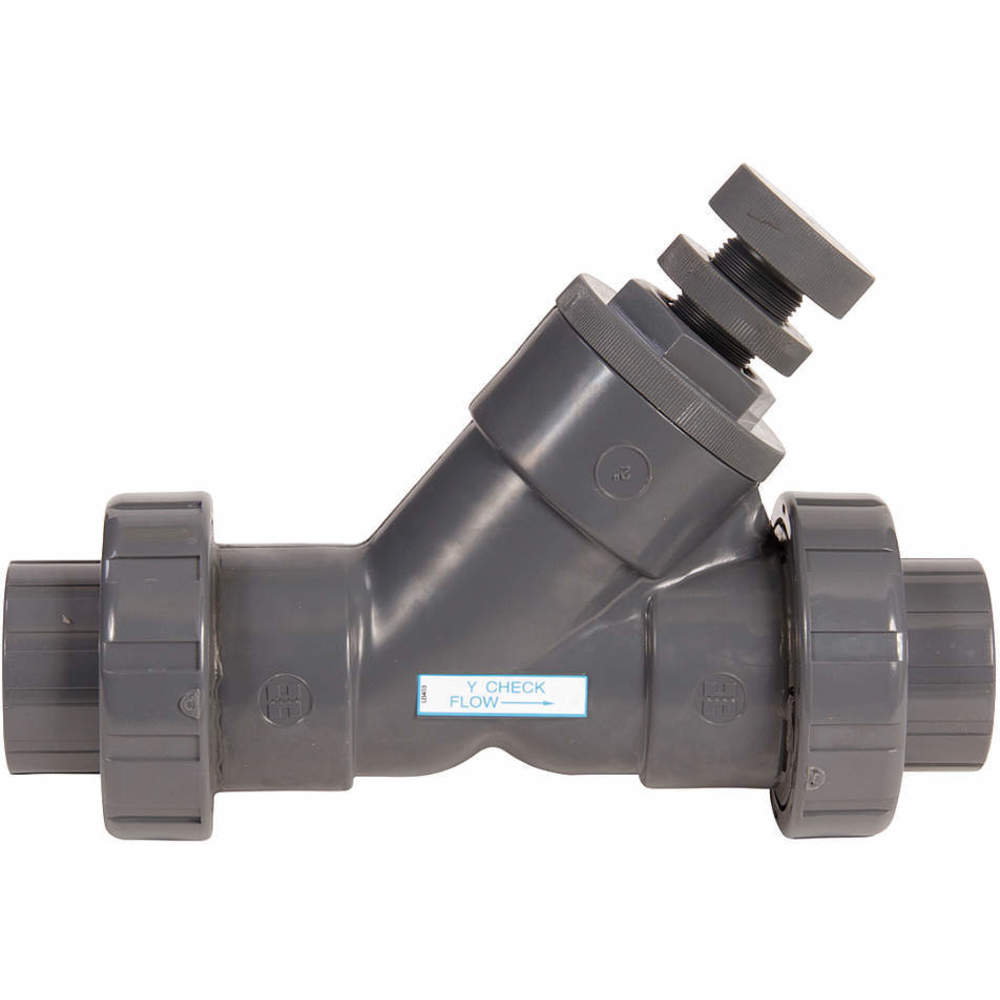

Hayward SLC10400TE Series SLC Spring-Loaded Y-Check Valve, Threaded End, PVC with EPDM Seals, 4" Size

Hayward SLC10400TE Series SLC Spring-Loaded Y-Check Valve, Threaded End, PVC with EPDM Seals, 4" Sizezoom

Attributes

Key Value
Actuator TypeSpring Loaded
Application - ValvesProcess Piping
Body MaterialPVC
Catalog Page NumberP-485
ConnectionThreaded x Threaded
Connection TypeThreaded
Country of OriginUSA
Cracking Pressure - Che.2.000 to 15.000 psi
Description:4" PVC Spring-Loaded Y-.
End StyleThread
Flow240 gpm
Flow - Valves240 gpm
Flow DesignSingle
Hex Size4 1/4"
Inlet to Outlet Length12-3/4 in
ItemSpring Y Check Valve
Item - Check ValvesCheck Valve
Item Number22693
Length12 3/4 in
Length (Straight Wirewa.12 3/4 in
ManufacturerHAYWARD INDUSTRIAL PROD.
Manufacturer Part #SLC10400TE
MaterialPVC
Max. Temp.140 Degrees F
Max. Temp. - Valves140 Degrees F
Mechanism and Body Desi.Y Spring
MFG Part #:SLC10400TE
Min. Temp. - Valves40 Degrees F
Nominal Size4 in
Overall Height12 61/64 in
Pipe or Tube Size4 in
Pipe or Tube Size - Che.4 in
Pipe Size4"
Port TypeFull
Pressure Rating150 psi
SealEPDM
Seat MaterialEPDM
Seat Material - Check V.EPDM
SeriesSLC
Size4"
Softgoods MaterialEPDM
Supplier:HAYWARD INDUSTRIAL PROD.
Temperature Rating70 deg F
Top to Inlet Center10.08 in
UPC610377633352
UPC:610377633352
Weight14.7 lbs
Width5 3/4 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG6734725843.991In StockHayward14.7843.99 @ 1
thumbzoomsustainablesupply.comC2984426981.391In StockHayward14.7981.39 @ 1
thumbzoomblackhawksupply.comSLC10400TE993.61In StockHayward993.6 @ 1
thumbzoomusplastic.com226931065.21In StockHayward14.71065.2 @ 1
thumbzoomRaptor SuppliesAH8LRW1226.6938711In StockHAYWARD1226.693871 @ 1
kscdirect.comHAY SLC10400TE1386.31In StockHAYWARD INDUSTRIAL PRODUCTS1386.3 @ 1
