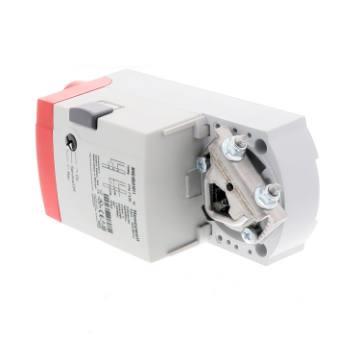

Honeywell MN6105A1011/U Two Position Float Actuator

Honeywell MN6105A1011/U Two Position Float Actuatorzoom

Attributes

Key Value
Ambient Temp. Range-5 Degrees to 140 Degr.
Best Sellers RankSee Top 100 in Industri.
BrandHoneywell
Country of OriginMEXICO
Date First AvailableJune 6, 2013
Depth2 1/2 in
Electrical Connections(2) Color Coded 16 in L.
For Use WithAir Handlers, Air Units.
GTIN085267266482
Height5 1/4 in, 5.300
IncludesCap Fittings, Mounting .
International ShippingNo
ItemElectric Actuator
Item model numberMN6105A1011
Length3.050
ManufacturerHoneywell
Motor DirectionCW or CCW
MpnMN6105A1011
Package Dimensions8.1 x 5.3 x 3 inches; 1.
Package Quantity1
Power Consumption5VA
Product with faster shi.true
Shaft TypeU-Bolt Clamp
Shippingundefined (Fixed Shippi.
Signal TypeFloating, On/Off
Size MeasureIN
SKUZO-G4797523
Spring ReturnNo
Stroke Deg.95 +/-3
Switch TypeSPDT
Timing95 sec Nominal @ 60 Hz
Torque44 in-lb
UNSPSC31251500
Voltage24V AC/DC
Weight1.360
Weight MeasureLB
Width8.150, 2 1/2 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomcappusa.com14021593.011In StockHoneywell93.01 @ 1
thumbzoomindustrialzone.comMN6105A101197.03In StockHoneywell1.497.0 @ 3
thumbzoomblackhawksupply.comMN6105A1011111.81In StockHoneywell111.8 @ 1
thumbzoomhomeessentialsdirect.comMN6105A1011112.441In StockHoneywell112.44 @ 1
alliedcontrols.comMN6105A1011114.431In StockHoneywell114.43 @ 1
hvacdiscountstore.comHON--MN6105A1011122.74159HONEYWELL122.74 @ 1
thumbzoomZoroG4797523122.991In StockHoneywell1.4122.99 @ 1
thumbzoomwaterpumpsnow.comMN6105A1011124.741In StockHoneywell0.1124.74 @ 1
thumbzoomHD Supply222213126.411In StockHoneywell1.36126.41 @ 1
thumbzoomptacsolutions.comMN6105A1011129.991243HONEYWELL129.99 @ 1
thumbzoommidwestapplianceparts.comMN6105A1011-HW-P130.911In StockHoneywell130.91 @ 1
thumbzoomsimsupply.comZO-G4797523163.051In StockHoneywell163.05 @ 1
KeleMN6105A1011176.811Honeywell176.8 @ 1
thumbzoomRaptor SuppliesCD2GAV201.9051451In StockHONEYWELL201.905145 @ 1
uri.comMN6105A1011290.361In StockHoneywell1.42290.36 @ 1
