Hubbell CSL215LA

mpnCSL215LA
brandname: HUBBELL
manufacturername: HUBBELL

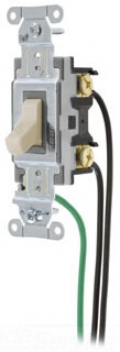

Hubbell CSL215LA Commercial Specification Switch, Double Pole, 15 amp, 120/277V, Wired Leads, Light Almond (Pack of 50)

Hubbell CSL215LA Commercial Specification Switch, Double Pole, 15 amp, 120/277V, Wired Leads, Light Almond (Pack of 50)

zoom

Brand: Hubbell
PartNumber: CSL215LA
Model: HUBCSL215LA
PackageQuantity: 1
Binding: Misc.
Manufacturer: Hubbell
Label: Hubbell

Attributes

Key	Value
Amperage	15 A
Approvals	CSA, UL
Color	Light Almond
Connectivity	Pre-Wired
Current	15 A
Current / amperage rati.	15 A
Current rating	15 A
Dielectric strength	Withstands 1500V AC min.
Dimensions	4.18 in x 1.34 in x 1.8.
Family Series	Hubbell Switches
Grade	Specification
Gross Weight	0.18 lbs
Grounding	Automatic
Height	1.83 in
HP @ 120 VAC	1/2 hp
HP @ 240 VAC	2 hp
Illuminated	No
Industry Standard(s)	UL Listed
Item Number	CSL215LA
Length	4.18 in
Locking	No
Manufacturer	Hubbell
Manufacturer Part Number	CSL215LA
Material	Nylon
Max Temperature Rise	30C maximum at rated cu.
Mounting Screw Type	Thread Cleaning Captive
Net Weight	0 lbs
Number of poles	Single pole
Operating temperature	Maximum continuous 75C .
Operator	Toggle
Operator Color	Light Almond
Style	Double pole
Switch Configuration	Double pole
Temperature	-40-167 ?F
Type	Toggle
Voltage	120-277 VAC, 120 VAC, 2.
Width (in)	1.34
Wire Range	#14 to #10 AWG Solid an.
Wire size	#14 AWG to #10 AWG
Wiring	Back and Side Wired, Pr.

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	MRO Supply	1016785	12.0	3	50		Hubbell Wiring		12.0 @ 50
	Galco	CSL215LA-HBBL	12.35	50	50		Hubbell	0.18	12.35 @ 50
	Newark	93Y3675	18.06	50	50		HUBBELL WIRING DEVICES		18.06 @ 50
	gordonelectricsupply.com	CSL215LA	576.5	1	50		HUBBELL		576.5 @ 50
