Igus MCM-06-02

B071PB2RZ3

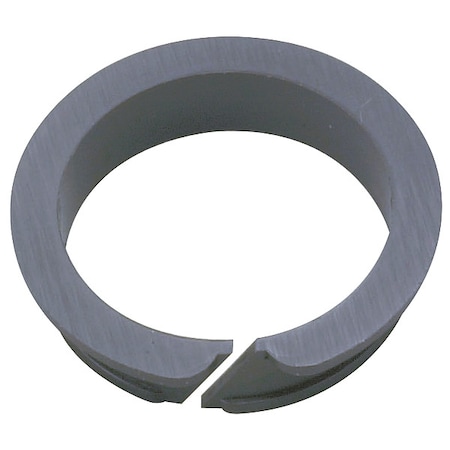

Clip Bearing, Plastic, 6mm ID, PK5

Clip Bearing, Plastic, 6mm ID, PK5zoom

Attributes

Key Value
ApplicationFor Rotational or Linea.
Bore Diameter6 mm
BrandIgus
ColorAnthracite
Country of Origin (subj.Germany
Current Stock57
Flange Thickness0.6 mm
Flange Thickness (In.)-
Flange Thickness (mm)0.6 mm
Flange TypeDouble Flange
For Housing Bore Range7.2 to 7.42 mm
For Material Thickness1.45 mm to 2.34 mm
For Material Thickness .-
For Material Thickness .1.45 to 2.34 mm
For Shaft Size5.975 to 6 mm
Inside Dia. (In.)-
Inside Dia. (mm)6 mm
Inside Diameter6 mm
Inside Height2 mm
Inside Height (In.)-
Inside Height (mm)1.45
International ShippingNo
ItemClip Bearing
Large Flange Dia. (In.)-
Large Flange Dia. (mm)11 mm
Large Flange Diameter11 mm
Lubrication TypeSelf Lubricating
MaterialM250 Thermoplastic
Material GradeM250 Thermoplastic
Material GroupPlastic
Material Thickness (mm)1.45 mm to 2.34 mm
Max. Housing Dia. (In.)-
Max. Housing Dia. (mm)7.42 mm
Max. Pressure (PSI)2,610 psi
Max. Shaft Dia. (In.)-
Max. Shaft Dia. (mm)6 mm
Maximum Housing Diameter7.42 mm
Maximum PV3,400 lb/sq in-fpm
Maximum Shaft Diameter6 mm
Min. Housing Dia. (In.)-
Min. Housing Dia. (mm)7.2 mm
Min. Shaft Dia. (In.)-
Min. Shaft Dia. (mm)5.98 mm
Minimum Housing Diameter7.2 mm
Minimum Shaft Diameter5.98 mm
MpnMCM-06-02
Number of Flanges2
Outside Dia. (In.)-
Outside Dia. (mm)7.2 mm
Outside Diameter11 mm
Outside Height3.2 mm
Outside Height (In.)-
Outside Height (mm)3.2 mm
Overall Length3.2 mm
Package Quantity5
Plain Bearing Materialiglide Polymer
Resistance PropertiesWear Resistant
SKUZO-G3255944
Small Flange Dia. (In.)-
Small Flange Dia. (mm)7.8 mm
Small Flange Diameter7.8 mm
StandardsRoHS 2 Certified
SubCategoryPower Transmission
System of MeasurementMetric
TypeMetric

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG32559445.79181Igus0.015.79 @ 5
Grainger2MTL28.281530IGUS8.28 @ 5
thumbzoomsustainablesupply.comC16737518.8315igus0.018.83 @ 5
thumbzoomRaptor SuppliesAC2TPK11.341102515IGUS11.3411025 @ 5
thumbzoomsimsupply.comZO-G325594413.72157Igus13.72 @ 5
